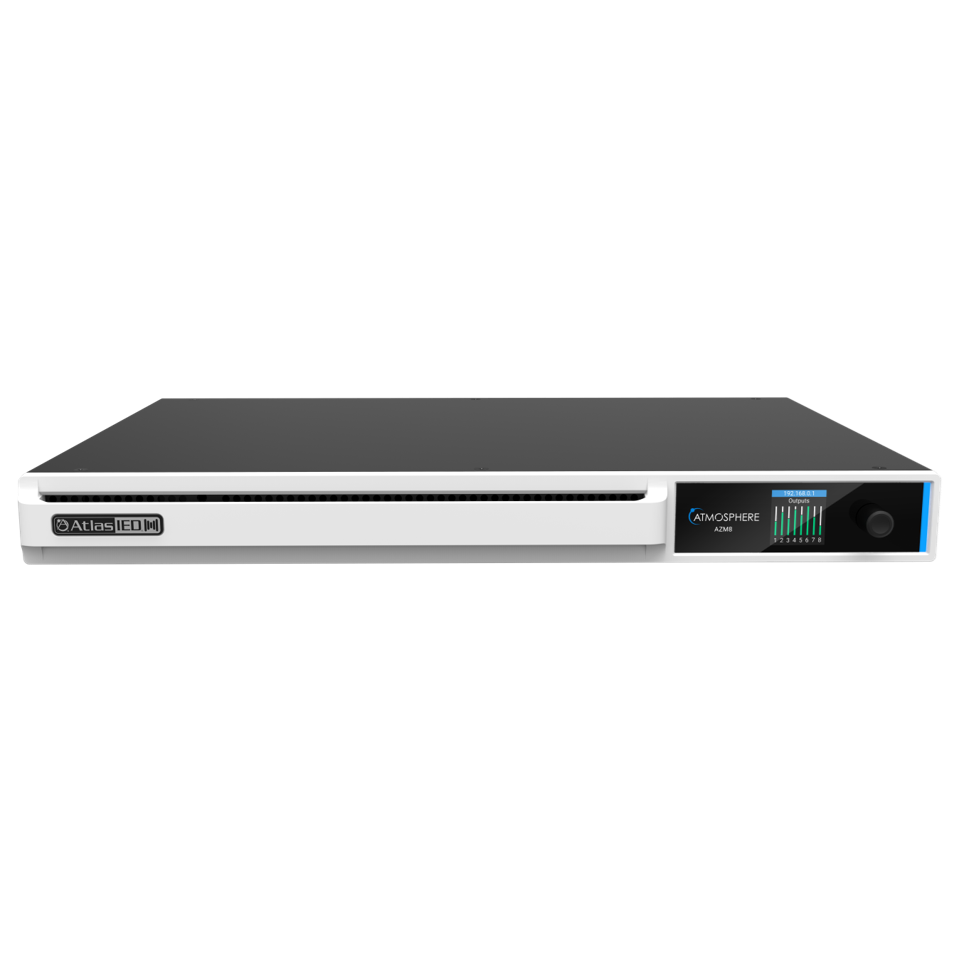

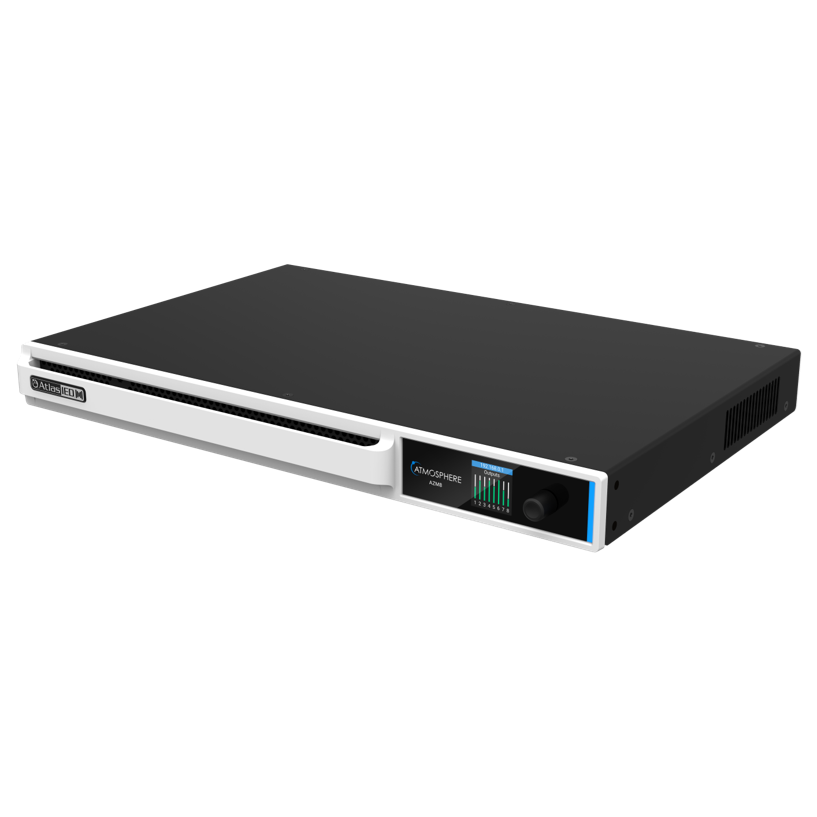

Atmosphere™ 8-Zone Audio Processor

AZM8
Availability: In stock
MSRP (USD): $1,940.99
  • Onboard DSP
  • Web Browser Control
  • Message Player
  • Bell Scheduler
  • Room Combine
  • Tilter Filter
  • Ambient Noise
    DESCRIPTION

    The Atmosphere AZM8 is an 8-zone audio processor and the heart of an Atmosphere audio control system.  Powerful DSP combined with innovative algorithms offer custom solutions for a wide variety of spaces.  A built-in message player, virtual wall controllers, learning ambient noise sensing, Tilter Filter™, auto-gain, GPIO, bell scheduler, room combine, and many more features, make the AZM a processing powerhouse.

    The AZM8 is compatible with all six of the Atmosphere wall plate accessories for control, remote audio input, and ambient noise sensing. Up to 16 of these plug-and-play Accessories can be connected across 4 accessory ports on the AZM8.  Additionally, a zone paging station can be added as an accessory.  Each port is designed to work reliably up to 1000ft.

    Programming is simple through a modern on-board web interface, optimized around common use-cases.  Built around Progressive Web App technology, the control interface is device agnostic, responsive, and meticulously designed for an ideal user experience without sacrificing design freedom.  In addition to Ethernet, built-in Wi-Fi allows for tablets and other controlling devices to connect directly to the AZM8.

    Control modules available for RTI, Crestron, Extron, and AMX.


    Features

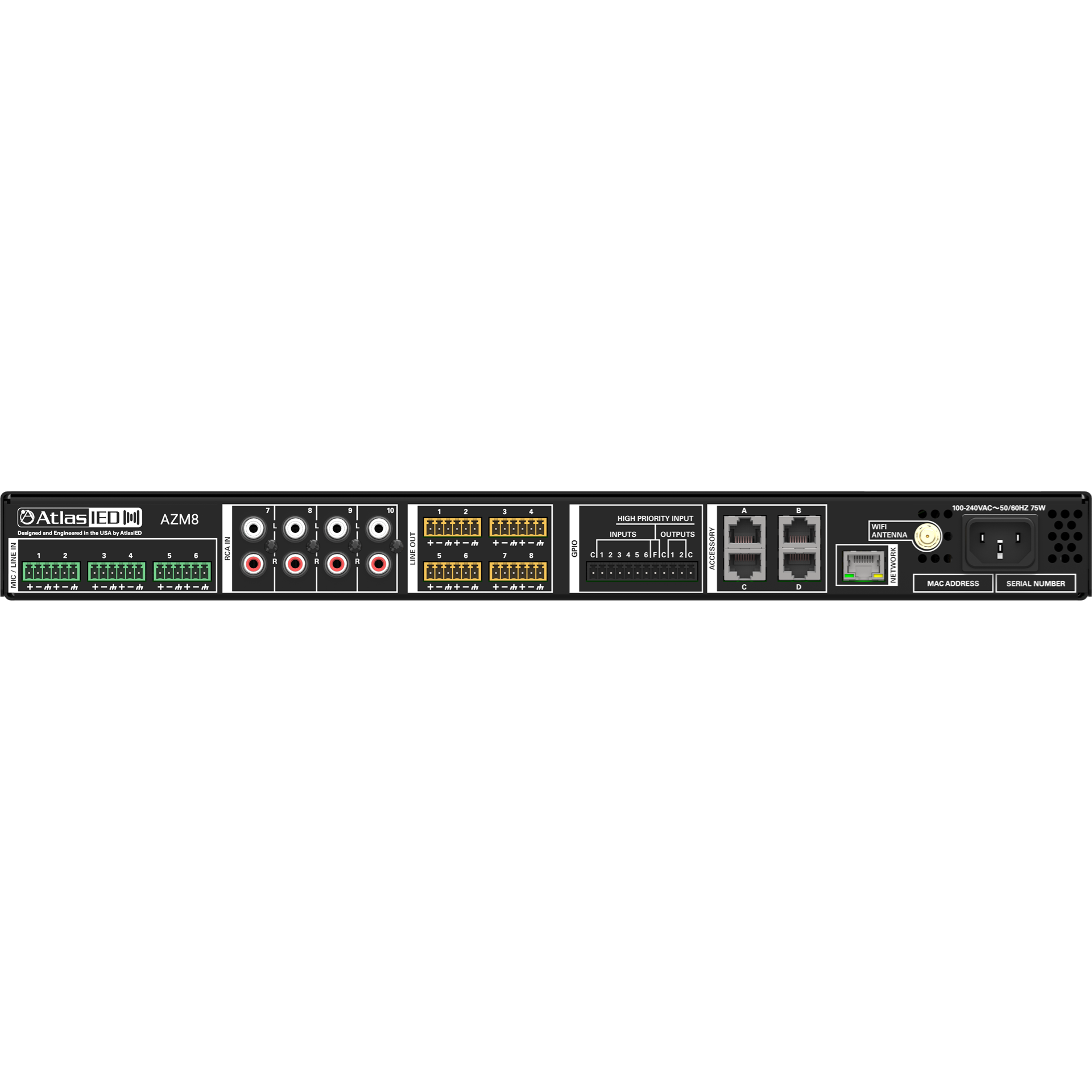

    • 4 accessory ports that support up to 16 controllers & sensors, and 4 audio wall plates (1 per port).
    • App-less virtual wall controller access via QR code or distributed URL
    • Bell Scheduler
    • Message player
    • Room combine and groups
    • Mono, stereo, and subwoofer support
    • Auto noise compensation
    • Loud Noise Detection
    • On board WIFI to use as an access point or connect to existing Wi-Fi network
    • Large library of AtlasIED speaker presets
    • Accessory self-heal
    • High Priority GPI input for integration with alarm system
    • Wide selection of audio DSP objects
    • Third Party Control

    SPECIFICATIONS

    SUPPORT FILES
    AZMP4 / AZMP8 Data Sheet (21 pages) AZMP4 / AZMP8 Data Sheet (21 pages)
    Atmosphere Quick Start Guide (5 pages) Atmosphere Quick Start Guide (5 pages)
    Atmosphere (AZM) 3.1 Firmware AZM-v3.1.4.4730 Atmosphere (AZM) 3.1 Firmware AZM-v3.1.4.4730
    Atmosphere Platform Firmware Release Notes (2 pages) Atmosphere Platform Firmware Release Notes (2 pages)
    AZM8 Panel Drawing AZM8 Panel Drawing
    AMX Control Module for AZM4/AZM8 AMX Control Module for AZM4/AZM8
    Crestron Series 3-4 Control Module for AZM4/AZM8 Crestron Series 3-4 Control Module for AZM4/AZM8
    Extron Control Module for AZM4/AZM8 Extron Control Module for AZM4/AZM8
    RTI Control Modules for AZM4/AZM8 RTI Control Modules for AZM4/AZM8
    Atmosphere User Manual (79 pages) Atmosphere User Manual (79 pages)
    AZM4/AZM8 3rd Party Control Instruction Manual (7 pages) AZM4/AZM8 3rd Party Control Instruction Manual (7 pages)
