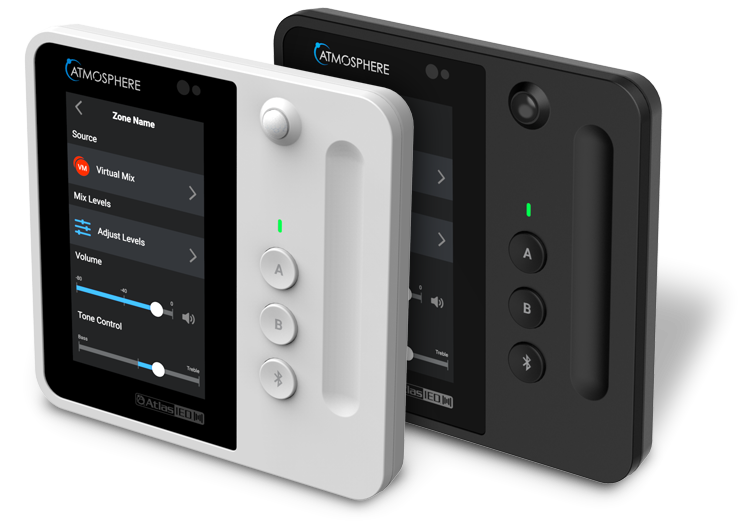

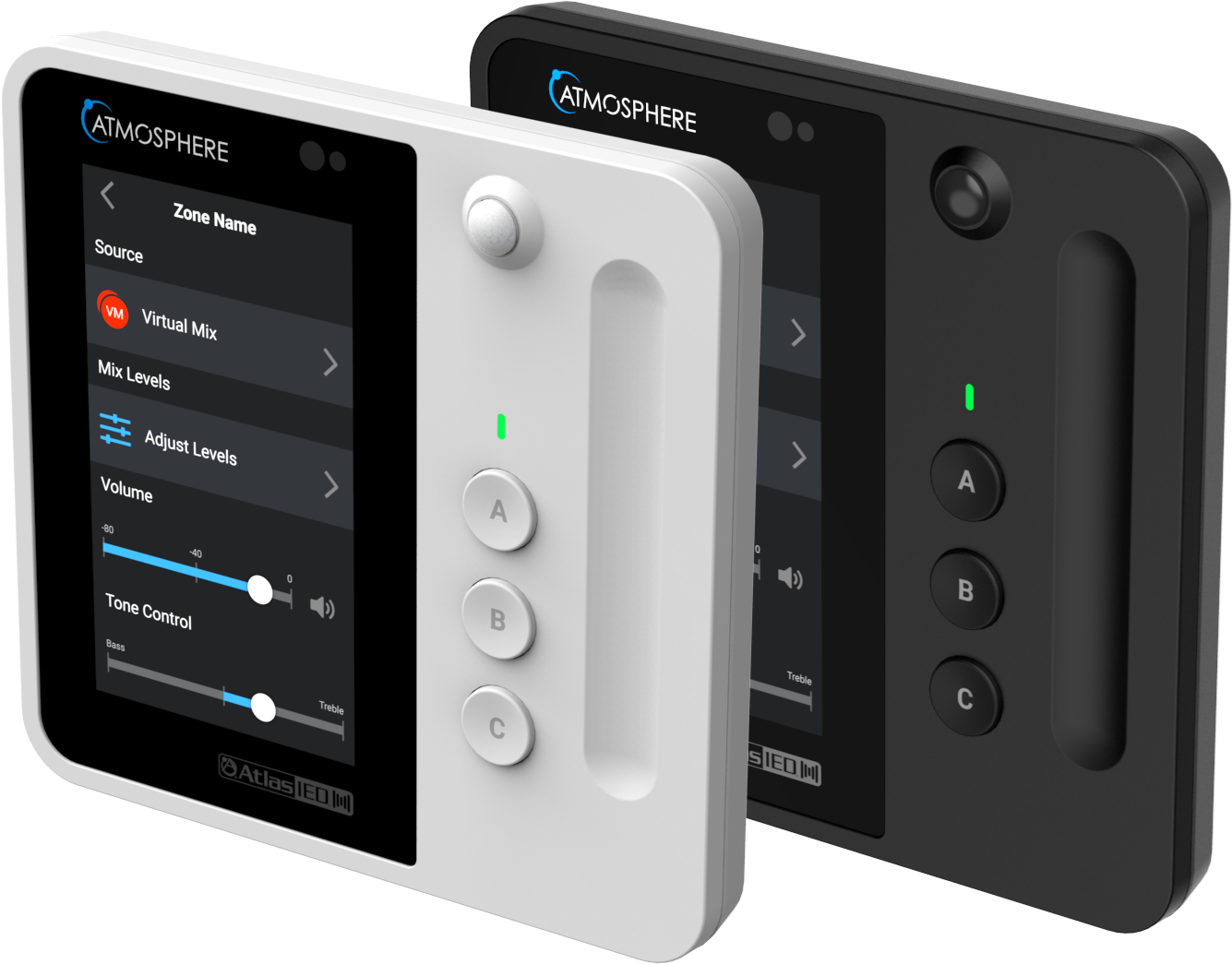

Atmosphere™ Wall Controller

Picture of Atmosphere™ Wall Controller (White)

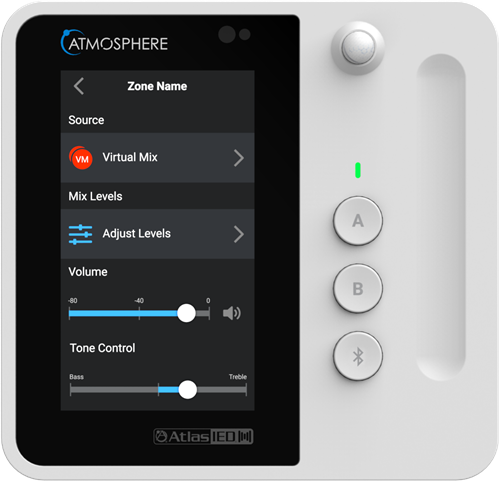

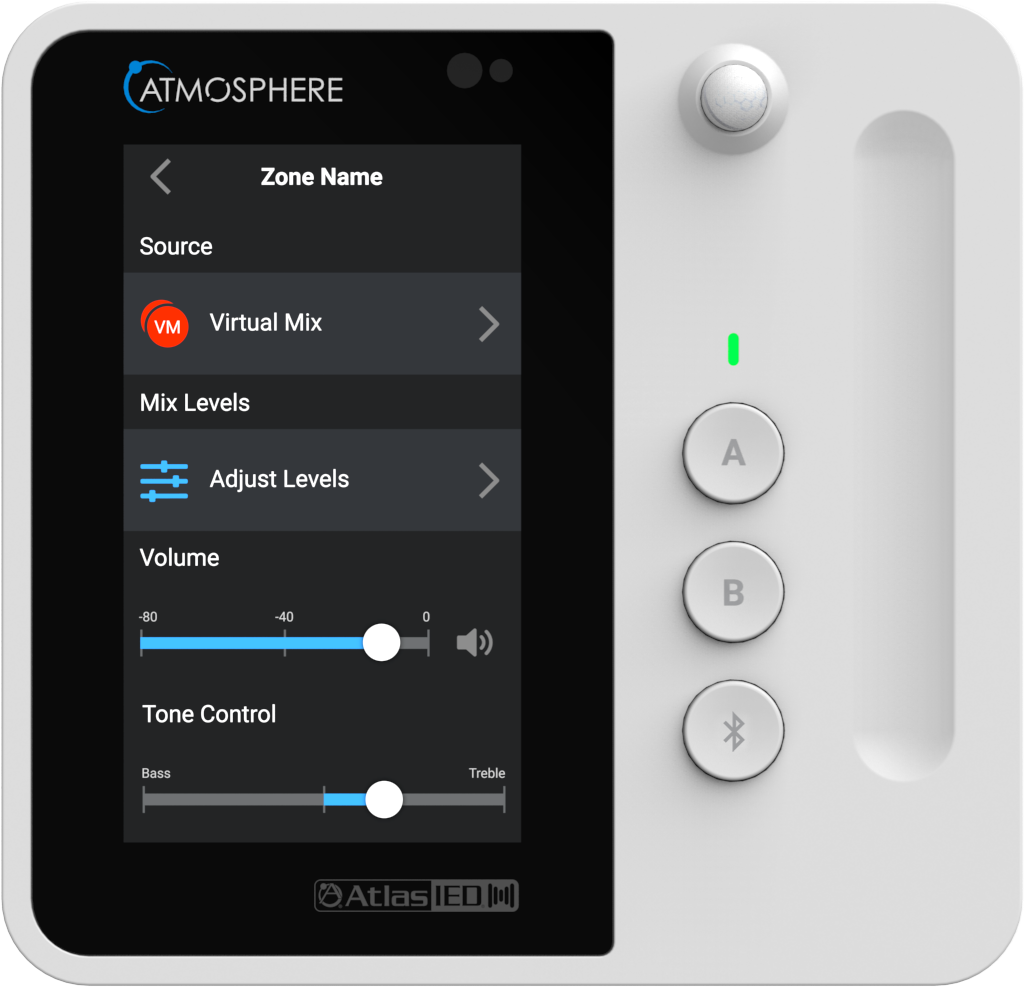

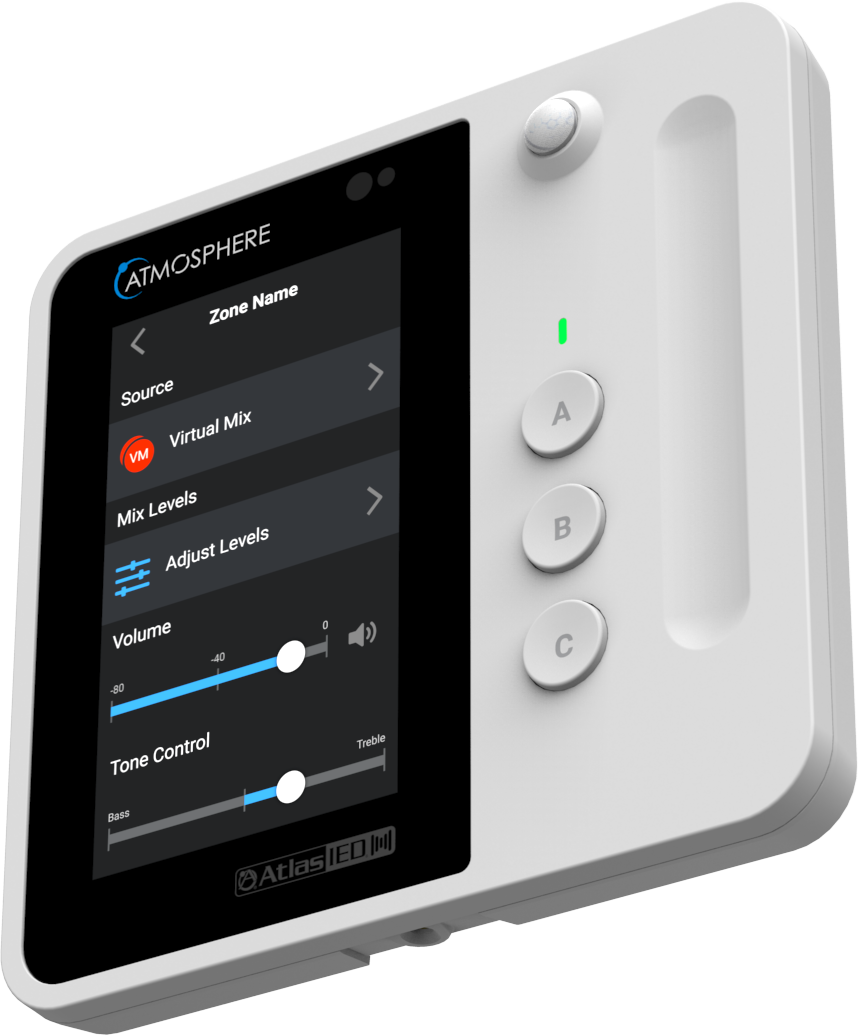

Atmosphere™ Wall Controller (White)
SKU: C-T4
Picture of Atmosphere™ Wall Controller (Black)

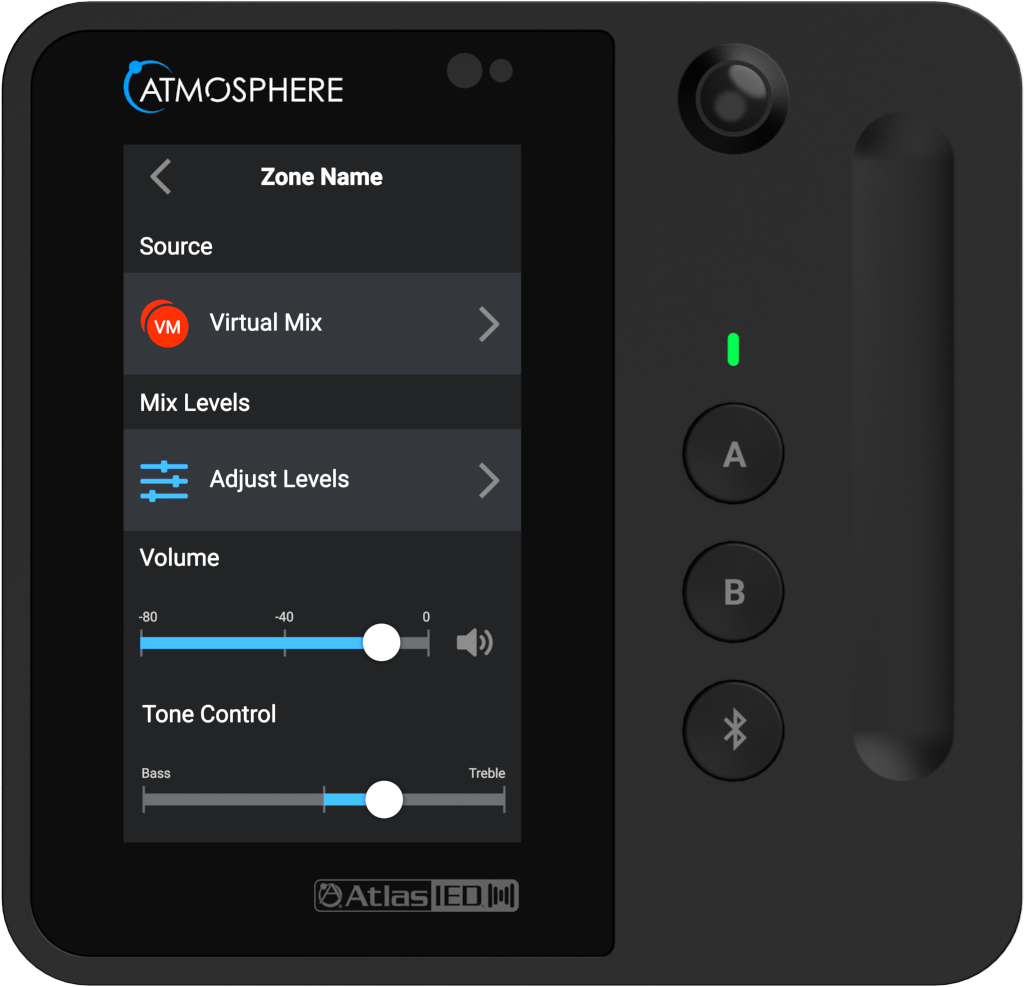

Atmosphere™ Wall Controller (Black)
SKU: C-T4-B
  • Daisy Chainable
  • Plug & Play
  • Multi Zone Control
  • High Priority Notification
  • Pin Code Secure
  • Volume Slider
  • 4.3" Touchscreen
  • Motion Sensor
    DESCRIPTION

    The AtlasIED Atmosphere C-T4 series wall controllers bring advanced functionality and intuitive design to the Atmosphere audio control system. Featuring a 4.3-inch programmable touchscreen, capacitive touch volume slider, and customizable action buttons, these controllers make managing zones, sources, and system actions effortless.

    Built with a PIR motion sensor, the C-T4 series adds intelligent automation by triggering system behavior based on room occupancy. Designed for seamless plug-and-play integration, the C-T4 series controllers connect directly to Atmosphere AZM head-end processors via CAT5e cabling and support daisy-chaining over distances of up to 1,000 feet, ensuring flexible installation options. With a sleek 2-gang design, the C-T4 series fits into standard wall boxes and is available in four variants to meet aesthetic and functional preferences, including options for Bluetooth audio and color finishes in black or white. Ideal for commercial spaces, the C-T4 series combines innovative control features with elegant design to elevate any audio environment.


    Features
    • 4.3" Programmable Touchscreen: Customizable interface for streamlined control of zones, sources, and actions.
    • Capacitive Touch Volume Slider: Smooth, intuitive volume adjustment for precise audio control.
    • Programmable Action Buttons: Quick-access buttons for easy execution of preset commands or configurations.
    • PIR Motion Sensor: Automatically trigger actions or behaviors on the AZM processor based on motion detection.
    • Automatic LCD Brightness: Adjust LCD brightness automatically based on ambient lighting conditions.
    • Plug-and-Play Integration: Effortlessly connects to Atmosphere AZM head-end processors for seamless system operation.
    • Daisy-Chain Connectivity: Supports up to 1,000 feet of daisy-chaining for flexible installation across larger spaces.
    • Standard 2-Gang Design: Easy to install in a wide variety of commercial environments.

    Applications
    • Restaurant / Bar
    • Hospitality / Hotels
    • House of Worship
    • Offices
    • Education
    • Corporate Centers

    SPECIFICATIONS
    LED Indicator Red: Error
    Blue (blinking): Locating mode
    Yellow: Firmware updating
    Button 3 Programmable buttons (A, B, C)
    Dimensions (HxWxD) 5.3″ x 5.5” x 1.4″ (136mm x 141mm x 36mm)
    Minimum Box Depth 1.8" (46mm)
    Volume Slider Capacitive Touch Slider
    Motion Sensor Type PIR
    Montion Sensor Range Up to 30ft
    Ambient Light Sensor Yes, automatic LCD/LED brightness
    Compatibility Compatible with all the Atmosphere AZM / AZMP system processors running software v4.5 or greater
    Warranty Period 36 months from date of purchase
