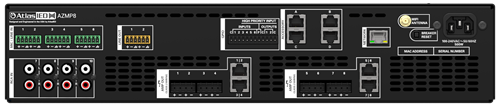

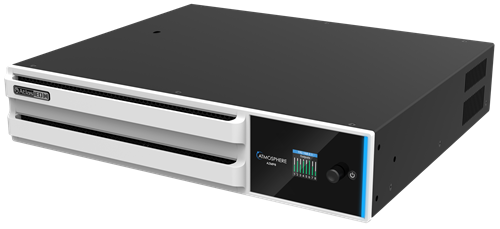

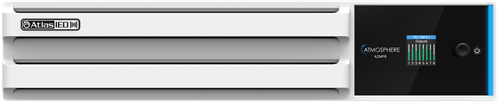

Atmosphere™ 8-Zone Signal Processor with 1200-Watt Amplifier

AZMP8
Availability: In stock
Your Price:
$4,837.99
  • Onboard DSP
  • Web Browser Control
  • Message Player
  • Bell Scheduler
  • Room Combine
  • Tilter Filter
  • Ambient Noise
    DESCRIPTION

    The Atmosphere AZMP8 is a powered (1200 Watt) 8-zone audio processor and the heart of an Atmosphere audio control system.  Powerful DSP combined with innovative algorithms offer custom solutions for a wide variety of spaces.  A built-in message player, virtual wall controllers, learning ambient noise sensing, Tilter Filter™, auto-gain, GPIO, bell scheduler, room combine, and many more features, make the AZMP a processing powerhouse.

    The AZMP8 utilizes amplifier power sharing technology that allows for efficient use of available power and avoiding system overdesign due to traditional amplifier power ratings. The AZMP8 can produce 1200W of total power, with each output channel being software assignable anywhere between 5-600W.​

    The AZMP8 is compatible with all six of the Atmosphere wall plate accessories for control, remote audio input, and ambient noise sensing. Up to 16 of these plug-and-play Accessories can be connected across 4 accessory ports on the AZMP8.  Additionally, a zone paging station can be added as an accessory.  Each port is designed to work reliably up to 1000ft.

    Programming is simple through a modern on-board web interface, optimized around common use-cases.  Built around Progressive Web App technology, the control interface is device agnostic, responsive, and meticulously designed for an ideal user experience without sacrificing design freedom.  In addition to Ethernet, built-in Wi-Fi allows for tablets and other controlling devices to connect directly to the AZMP8.

    Control modules available for RTI, Crestron, Extron, and AMX.


    Features
    • Flexible power sharing amplifier technology
    • 1200W total output power
    • 600W max output per channel
    • System Self Test
    • 4 accessory ports that support up to 16 controllers & sensors, and up to 4 audio accessories (one per port) - wall plate or paging station
    • App-less virtual wall controller access via QR code or distributed URL
    • Bell Scheduler
    • Message player
    • Room combine and groups
    • Mono, stereo, and subwoofer support
    • Auto noise compensation
    • Loud Noise Detection
    • On board WIFI to use as an access point or connect to existing Wi-Fi network
    • Large library of AtlasIED speaker presets
    • Accessory self-heal
    • High Priority GPI input for integration with alarm system
    • Wide selection of audio DSP objects
    • Third Party Control

    SPECIFICATIONS

    SUPPORT FILES

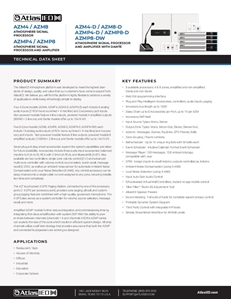

    Atmosphere Signal Processor Data Sheet Atmosphere Signal Processor Data Sheet
    Atmosphere User manual (79 pages) Atmosphere User manual (79 pages)
    Atmosphere Quick Start Guide (5 pages) Atmosphere Quick Start Guide (5 pages)
    Atmosphere Cloud User Guide Atmosphere Cloud User Guide
    Atmosphere Platform Firmware Release Notes Atmosphere Platform Firmware Release Notes
    Atmosphere Powered (AZMP) 3.6 Firmware AZMP-v3.6.10.6150 Atmosphere Powered (AZMP) 3.6 Firmware AZMP-v3.6.10.6150

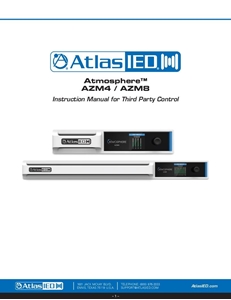

    AZM4/AZM8 3rd Party Control Instruction Manual (7 pages) AZM4/AZM8 3rd Party Control Instruction Manual (7 pages)
    RTI Control Modules for AZM4/AZM8 RTI Control Modules for AZM4/AZM8
    Crestron Series 3-4 Control Module for AZM4/AZM8 Crestron Series 3-4 Control Module for AZM4/AZM8
    Extron Control Module for AZM4/AZM8 Extron Control Module for AZM4/AZM8
    AMX Control Module for AZM4/AZM8 AMX Control Module for AZM4/AZM8
    AZMP8 CAD Darwing AZMP8 CAD Darwing
