Atmosphere™ RCA/3.5mm Audio Input

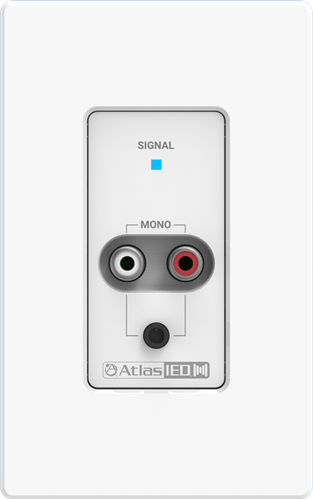

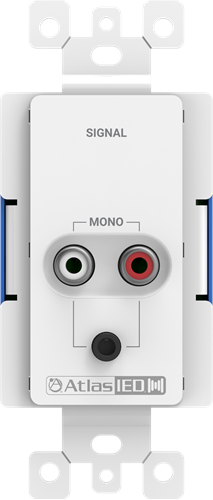

Picture of Atmosphere™ RCA/3.5mm Audio Input (White)
Atmosphere™ RCA/3.5mm Audio Input (White)
SKU: A-RCA
Availability: Call for Availability
MSRP (USD): $199.00

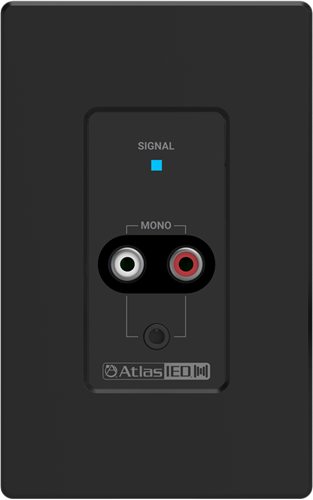

Picture of Atmosphere™ RCA/3.5mm Audio Input (Black)
Atmosphere™ RCA/3.5mm Audio Input (Black)
SKU: A-RCA-B
Availability: In stock
MSRP (USD): $199.00
  • Daisy Chainable
  • Plug & Play
  • Decora Wall Plate
  • High Priority Notification
  • Digital Audio Return
  • Locate Function
    DESCRIPTION

    The Atmosphere A-RCA is a remote RCA/3.5mm audio input to an Atmosphere AZM audio processor. This expansion acts identically to the on-board RCA inputs. The AZM will automatically detect the A-RCA and dynamically assign appropriate audio settings, such as makeup gain, EQ, and auto gain control, to that input. The stereo inputs are summed to a mono signal before being sent to the AZM.

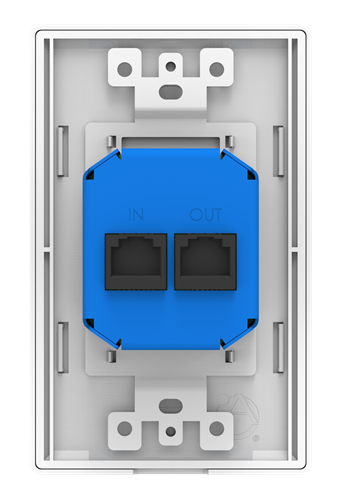

    Each Atmosphere accessory is a plug-and-play, intelligent device, specifically designed to be approachable and intuitive. The Atmosphere accessory bus allows up to 8 devices to be connected to a single accessory port, reliably sending audio and data over 1000ft per port. Up to 1x audio input accessory can be added to each accessory port.


    FEATURES
    • Mono summed RCA pair
    • 3.5mm mono summed input
    • Digital audio return to host processor
    • Works with premium oversized RCA connectors
    • Signal presence indicator

    SUPPORT FILES
    AZM4 - AZM8 Data Sheet (9 pages) 924 KB
    Atmosphere Quick Start Guide (4 pages) 3 MB
    Atmosphere User Manual (79 pages) 14 MB
