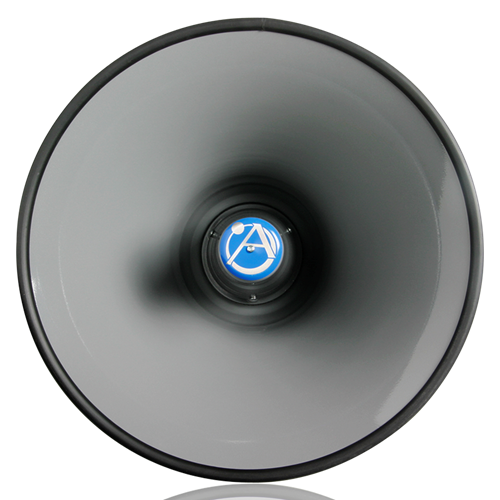

75° Uniform Coverage Horn

DR-54
Availability: In stock
MSRP (USD): $279.99
  • Driver Sold Separately
  • IP45
    DESCRIPTION

    AtlasIED DR Series double re-entrant horns are designed for use with compression driver units to offer superior music and voice communications over distance and ambient noise. The circular projectors are equipped with a resonance damping ring for best response through an extended frequency range.

    Weather-resistant units will accommodate AtlasIED PD and SD Series compression drivers or any driver with standard 1 3/8" -18 male thread coupling. The integral "U-type" steel mounting bracket provides maximum directional aiming flexibility and enhances installation capability when used outdoors or in industrial environments.

    The rugged all-metal, exponentially-flared horns are finished in durable grey epoxy.


    Features
    • Accepts All Standard High Efficiency Compression Drivers with 1 3/8" - 18 Male Threads
    • Exponentially-Flared for Uniform Sound Distribution
    • Multi-Purpose Reflex Sound Horns for High Intelligibility Sound Distribution and Voice and Signal Applications
    • Weatherproof, All-Metal Construction for Year Round Use

    SPECIFICATIONS
    Dispersion 75°
    Depth 19" (48.26 cm)
    Diameter 26" (66.04 cm)
    Shipping Weight 20.00 lbs (9.07 kgs)
    Warranty Period 60 months from date of purchase
