40-Watt 16Ω Compression Driver for Large Format Horn Speakers

Availability: Call for Availability
Your Price:
  • Horn Sold Separately
  • BAA
  • TAA
  • 70V100VCAPABLE
  • IP56

    Model PD-5VH is a 40-watt driver with 2" voice coil machined to optimum tolerances.

    Model PD-5VH has an Alnico V-DG magnet which offers maximum temperature stability and optimizes output for yielding the lowest amplifier power requirements. It also provides terminals for matching direct to the 16 ohm voice coil. PD-5VH offers a plane wave frequency response of 110Hz - 4.1kHz.

    The durable compression driver mounts easily to large format horns that terminate in the standard 1 3/8"-18 male coupling thread.

    Units are finished in grey, baked epoxy.

    Learn more about the importance of protecting paging horns from low frequency damage and view the TSD-HF11 unit designed specifically to protect horns from low frequency damage.


    • 40-Watt Power Rating
    • Environment-Resistant Construction for Indoor/Outdoor Use
    • Extended Frequency Response Range for Optimum Intelligibility
    • Powerful Driver Mounts to Large Format Horns to Deliver Outstanding Sound Reproduction

    Frequency Response 110Hz - 4.1kHz
    Sensitivity 110.7 (avg) 110 - 4,100Hz
    Power Rating 40W
    Height 5 1/8" (13.02 cm)
    Width 4 3/8" (11.11 cm)
    Shipping Weight 5.00 lbs (2.27 kgs)
    Warranty Period 60 months from date of purchase

    PD-30T 60T 5V Install Sheet (2 pages) PD-30T 60T 5V Install Sheet (2 pages)

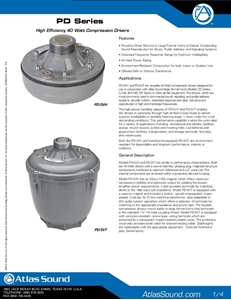

    PD Series Datasheet (4 pages) PD Series Datasheet (4 pages)
