60-Watt 16Ω Compression Driver for Large Format Horn Speakers

Availability: In stock
Your Price:
  • Horn Sold Separately
  • BAA
  • TAA
  • 70V100VCAPABLE
  • IP56

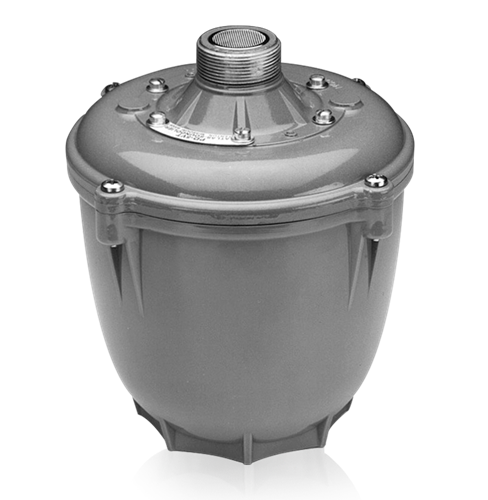

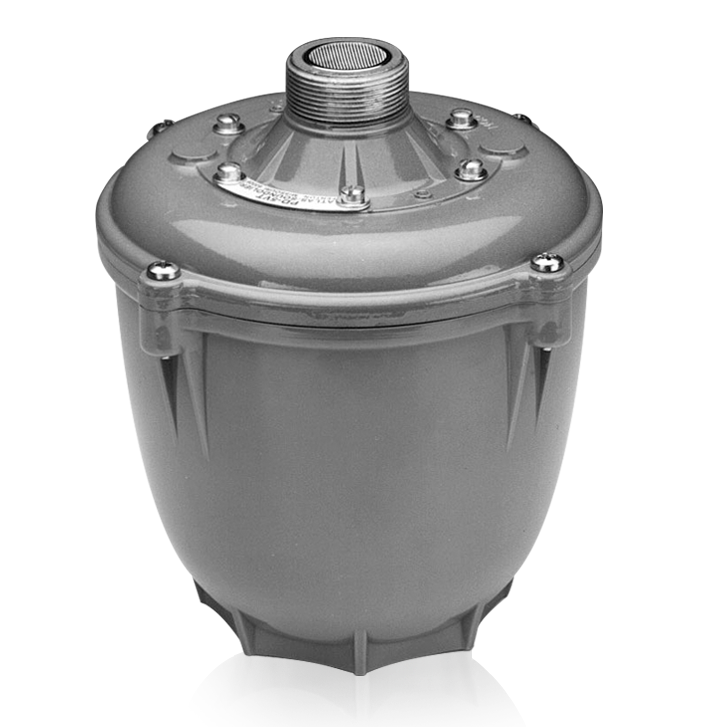

    Model PD-60A is a fully environment-resistant 60 watt driver for indoor or outdoor application recommended for use in expansive and/or high ambient sound-level areas.

    Unit features magnetic-structure components machined to optimum tolerances, 2" voice coil and a plane wave frequency response of 100Hz - 3.7kHz.

    Model PD-60A provides screw-type terminals for matching direct to the 16 ohm voice coil impedance. Corrosion-resistant terminal connections are protected by a transparent, impact-resistant plastic cover which provides strain relief for the interconnecting cable. The PD-60A is terminated in standard 1 3/8"-18" thread male couplings for use with screw-on horns.

    Learn more about the importance of protecting compression drivers from low frequency damage and view the TSD-HF11 unit designed specifically to protect them from low frequency damage.


    • Driver Provides Accurate Sound Reproduction, Optimum Intelligibility and Dependable Performance
    • Perfect for High Power Public Address Systems
    • Use with CJ-46 BIA100 and DR Series Horns

    Frequency Response 100Hz - 3.7kHz
    Sensitivity 112.7 (avg) 100 - 3,700 Hz
    Power Rating 60W
    Height 6 7/8" (17.46 cm)
    Diameter 6 3/8" (16.19 cm)
    Shipping Weight 8.66 lbs (3.93 kgs)
    Warranty Period 60 months from date of purchase

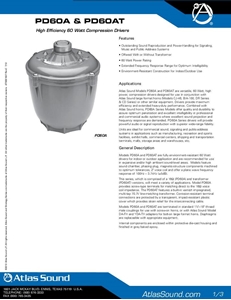

    PD60A & PD60AT Datasheet (3 pages) PD60A & PD60AT Datasheet (3 pages)
