Compression Driver for Large Format Horn Speakers with 30-Watt 70V Transformer

Availability: Call for Availability
Your Price:
  • Horn Sold Separately
  • 70V100VCAPABLE

    The PD-30T is a fully environment-resistant compression driver for indoor or outdoor applications recommended for use in expansive and/or high-ambient sound-level areas. The unit has a power rating of 30 watts, a 1.5" voice coil and a plane wave frequency response of 300Hz - 3.9kHz.

    Transformer-equipped Model PD-30T incorporates the exclusive AtlasIED Vari-Tap® Control/Connect Center with a screwdriver selectable ohms/watts switch. The integral 70V line matching transformer is varnish impregnated for maximum environment resistance and life expectancy. It also includes a protective terminal cover with built-in strain relief to assure secure cable connection.

    The PD-30T is terminated in standard 1 3/8"-18" thread male couplings for use with screw-on horns.

    Learn more about the importance of protecting paging horns from low frequency damage and view the TSD-HF11 unit designed specifically to protect horns from low frequency damage.


    • 30-Watt Power Rating
    • Environment-Resistant Construction for Indoor/Outdoor Use
    • Extended Frequency Response Range for Optimum Intelligibility
    • Outstanding Sound Reproduction and Power-Handling For Signaling, Music and Public Address Systems
    • BX-1A Conduit Adapter Compatible

    Frequency Response 300Hz - 3.9kHz
    Sensitivity 113.6 (avg) 300 - 3,900 Hz
    Depth 4 1/2" (11.43 cm)
    Shipping Weight 4.00 lbs (1.81 kgs)
    Warranty Period 60 months from date of purchase

    PD-30T PD-30T

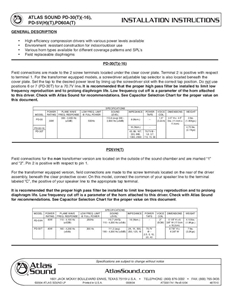

    PD-30T 60T 5V Install Sheet (2 pages) PD-30T 60T 5V Install Sheet (2 pages)

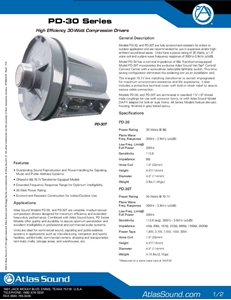

    PD-30 Series Datasheet (2 pages) PD-30 Series Datasheet (2 pages)
