Compression Driver for Large Format Horn Speakers with 75-Watt 70V Transformer

PD75T
Availability: Temporarily Out of Stock - Product will ship once in stock.
Your price (USD): $297.99
  • Horn Sold Separately
  • 70V100VCAPABLE
  • IP56
    DESCRIPTION

    Model PD75T is a fully environment-resistant 75 Watt driver for indoor or outdoor applications and is recommended for use in expansive and/or high ambient sound-level areas. This model features a sound chamber, phasing plug, magnetic-structure components machined to optimum tolerances, 2" voice coil and offers a plane wave frequency response of 100Hz - 3.7kHz.

    This unit, which is comprised of a transformer with 16Ω bypass, will meet a variety of applications. The PD75T provides screw-type terminals for matching direct to the 16Ω voice coil impedance and a built-in varnish impregnated, multi-tap 70.7 volt line-matching transformer. Corrosion-resistant terminal connections are protected by a transparent, impact-resistant plastic cover.

    The PD75T is terminated in a standard 1 3⁄8"-18 thread male couplings for use with screw-on horns, or with AtlasIED Model YDA-TH adapters for bolt-on large format horns. Diaphragms are replaceable with appropriate equipment. A replacement diaphragm, model PD75TDIA, is available.

    Internal components are enclosed within a protective die-cast and polycarbonate injection molded housing and finished in gray baked epoxy.

    Learn more about the importance of protecting compression drivers from low frequency damage and view the TSD-HF11 unit designed specifically to protect them from low frequency damage.




    FEATURES
    • Outstanding Sound Reproduction and Power Handling for Signaling, Music, and Public Address Systems
    • Extended Frequency Response Range for Optimum Intelligibility
    • 75 Watt Power Rating
    • Environment-Resistant Construction for Indoor/Outdoor Use
    • Offered with Transformer and 16Ω Tap

    SPECIFICATIONS
    Plane Wave Frequency Response 100Hz - 3.7kHz
    Transformer Taps 2.36, 4.7, 9.4, 19, 38, & 75 Watts
    Power Rating 75 Watts
    SPL 1mW PWT 116dB Avg. 300 - 3,700 Hz
    Height 7 1/8" (181mm)
    Diameter 6 3/16" (157mm)
    Weight 8.2lbs (3.72kg)

    SUPPORT FILES

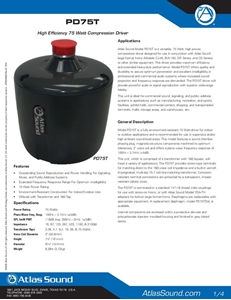

    Data Sheet
