30-Watt 8Ω Compression Driver for Large Format Horn Speakers

PD-30
Availability: In stock
Your price (USD): $112.99
  • Horn Sold Separately
  • BAA
  • 4OHM8OHMCAPABLE
  • TAA
    DESCRIPTION

    Model PD-30 is fully environment-resistant for indoor or outdoor application and recommended for use in expansive and/or high-ambient sound-level areas. Unit has a power rating of 30 watts, a 1.5" voice coil and a plane wave frequency response of 300Hz - 3.9kHz.
    Model PD-30 has a nominal impedance of 8 ohms.

    Model PD-30 is terminated in standard 1 3/8"-18" thread male couplings for use with screw-on horns, or with AtlasIED Model DA-FH adapter for bolt-on type horns.

    Learn more about the importance of protecting paging horns from low frequency damage and view the TSD-HF11 unit designed specifically to protect horns from low frequency damage.




    FEATURES
    • 30-Watt Power Rating
    • Environment-Resistant Construction for Indoor/Outdoor Use
    • Extended Frequency Response Range for Optimum Intelligibility
    • Outstanding Sound Reproduction and Power-Handling For Signaling, Music and Public Address Systems

    SPECIFICATIONS
    Frequency Response 300Hz - 3.9kHz
    Sensitivity 113.6 (avg) 300 - 3,900Hz
    Power Rating 30W
    Depth 4 1/2" (11.43 cm)
    Shipping Weight 4.00 lbs (1.81 kgs)

    SUPPORT FILES
    Data Sheet

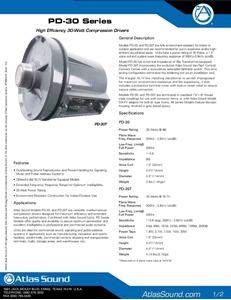

    ATS004135 PD-30 Series Datasheet RevA
    CAD Drawing
    PD-30
    Installation Sheet

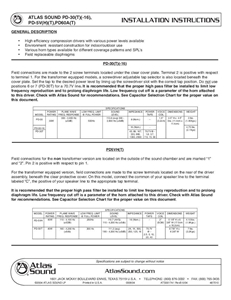

    PD-30T 60T 5V Install Sheet
