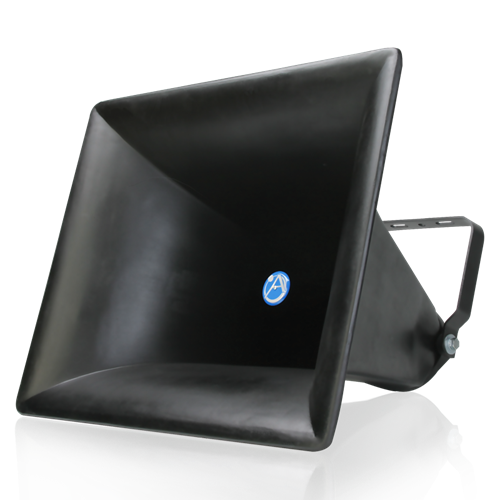

40° X 20° Constant Directivity Re-Entrant Paging Horn

CD42
Availability: In stock
Your price (USD): $463.99
  • Driver Sold Separately
  • IP45
    DESCRIPTION

    The Industry's Only Constant Directivity Re-Entrant Horn, CD Series horns from AtlasIED provide greatly improved uniform sound coverage compared to conical designs.

    With all models the horizontal coverage pattern is precisely controlled over a frequency range. For mounting, the proven CJ46 style heavy-duty steel mounting bracket is utilized with positive lock for horizontal and vertical positioning in single or stacked multi-unit clusters. Construction is polyester resin and glass-fiber laminate integrally molded to a die-cast zinc throat section.

    Recommended AtlasIED Drivers: PD30 Series, PD-5 Series, PD60 Series.


    FEATURES
    • Coverage of 40° x 20° Across a Wide Frequency Range for Predictable Beamwidth Control
    • Nominal Frequency Response of 800Hz - 10kHz for High-Intelligibility Voice, Signaling
    • Environment-Resistant Construction for Outdoor/ Indoor Applications
    • Accepts All Atlas Sound and 1 3/8" - 18 Thread Compression Drivers with Throat Openings of 0.7" Dia.
    • Patented 180° Gimbal-Mount for Installation Flexibility

    SPECIFICATIONS
    SPL (1W/1M) w/ PD60 Driver 113dB
    Dispersion H, 40°, ±10°, 800Hz-10kHz, V, 20°, ±10°, 2kHz-10kHz
    Low Frequency Cut Off 300Hz
    Air Column Length 5'
    Height 21 1/4"
    Width 25 1/2"
    Depth 22"
