85° Uniform Coverage Horn

DR-42
Availability: In stock
Your Price:
$214.99
  • Driver Sold Separately
  • IP45
    DESCRIPTION

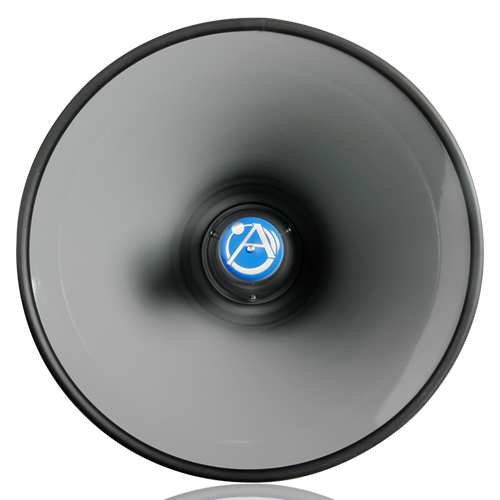

    AtlasIED DR Series double re-entrant horns are designed for use with compression driver units to offer superior music and voice communications over distance and ambient noise. The circular projectors are equipped with a resonance damping ring for best response through an extended frequency range.

    Weather-resistant units will accommodate AtlasIED PD and SD Series compression drivers or any driver with standard 1 3/8" -18 male thread coupling. The integral "U-type" steel mounting bracket provides maximum directional aiming flexibility and enhances installation capability when used outdoors or in industrial environments.

    The rugged all-metal, exponentially-flared horns are finished in durable grey epoxy.


    Features
    • Accepts All Standard High Efficiency Compression Drivers with 1 3/8" - 18 Male Threads
    • Exponentially-Flared for Uniform Sound Distribution
    • Multi-Purpose Reflex Sound Horns for High Intelligibility Sound Distribution and Voice and Signal Applications
    • Weatherproof, All-Metal Construction for Year Round Use

    SPECIFICATIONS
    Dispersion 85°
    Depth 16" (40.64 cm)
    Diameter 21" (53.34 cm)
    Shipping Weight 13.00 lbs (5.90 kgs)
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    DR-42 EASE DATA DR-42 EASE DATA
    DR-42 CAD DWG DR-42 CAD DWG
    DR-42 Revit Drawing DR-42 Revit Drawing

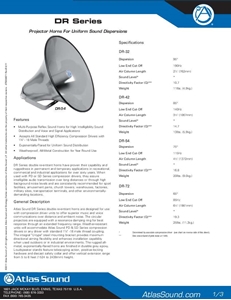

    DR Series Datasheet (3 pages) DR Series Datasheet (3 pages)
