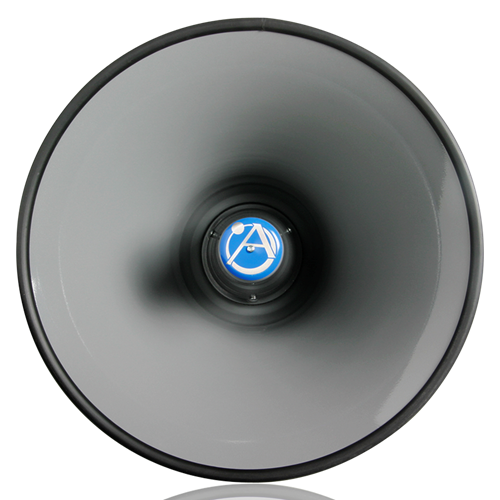

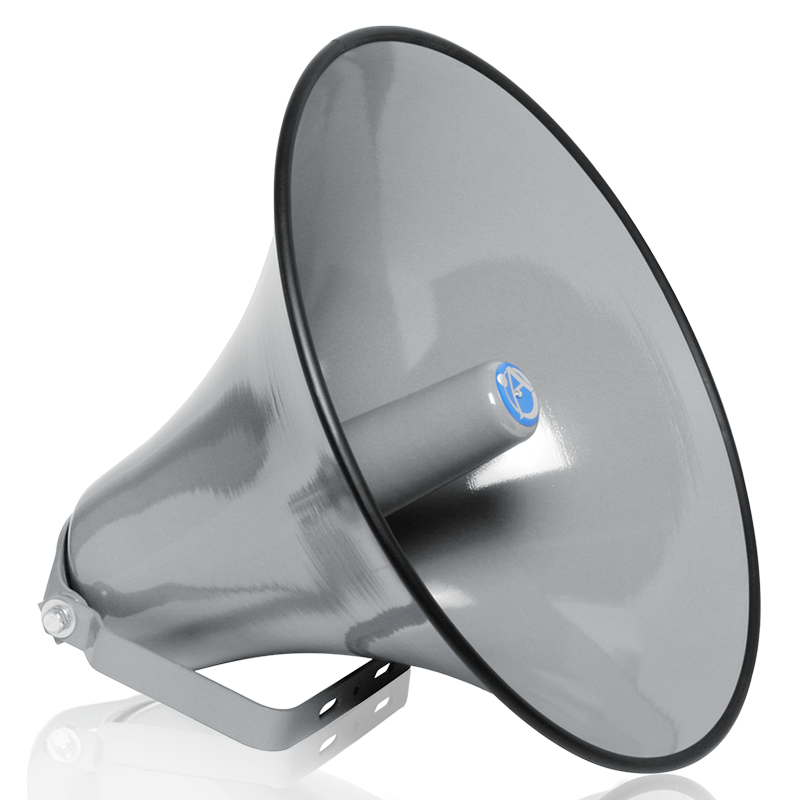

95° Uniform Coverage Horn

Availability: In stock
MSRP (USD): $156.99
  • Driver Sold Separately
  • IP45

    AtlasIED DR Series double re-entrant horns are designed for use with compression driver units to offer superior music and voice communications over distance and ambient noise. The circular projectors are equipped with a resonance damping ring for best response through an extended frequency range.

    Weather-resistant units will accommodate AtlasIED PD and SD Series compression drivers or any driver with standard 1 3/8" -18 male thread coupling. The integral "U-type" steel mounting bracket provides maximum directional aiming flexibility and enhances installation capability when used outdoors or in industrial environments. The rugged all-metal, exponentially-flared horns are finished in durable grey epoxy.

    • Accepts All Standard High Efficiency Compression Drivers with 1 3/8" - 18 Male Threads
    • Exponentially-Flared for Uniform Sound Distribution
    • Multi-Purpose Reflex Sound Horns for High Intelligibility Sound Distribution and Voice and Signal Applications
    • Weatherproof, All-Metal Construction for Year Round Use

    Dispersion 95°
    Depth 12 1/2" (31.75 cm)
    Diameter 16 1/2" (41.91 cm)
    Shipping Weight 11.00 lbs (4.99 kgs)

    DR Series Datasheet (3 pages) 250 KB
    DR-32 100 KB
    6 KB
    DR-32 Revit Drawing 596 KB
