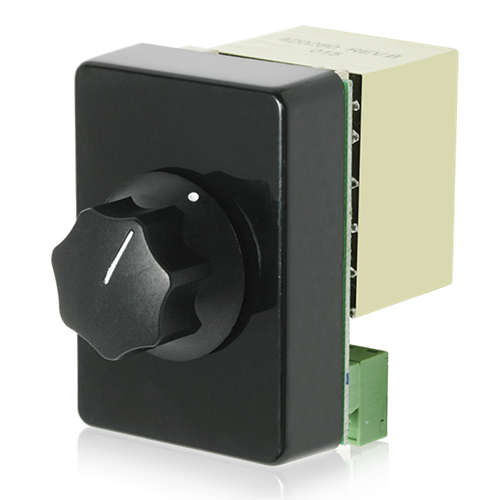

Deluxe Priority, Rack Mounted 35W Attenuator W/Priority Relay, 3dB Steps

AT35-PARM
Availability: In stock
Your price (USD): $43.99
  • UL Listed
  • 70V / 100V Operation
    DESCRIPTION
    High-quality auto transformer AT35-PARM provides the advantages of excellent frequency response, low insertion loss and reliable performance for volume control application in 25 and 70.7-volt systems.

    Attenuation is accomplished in ten make before break steps plus positive off position. (No stop between maximum and off position to prevent switch damage). Contacts are silver plated for noise-free operation.

    Features a removable terminal block. Includes screen printed dial scale and a skirted black knob.

    FEATURES
    • Attractive Matte Black Polycarbonate Dial Scale Overlay with Adhesive Backing Replaces the Mounting Plate. Includes Skirted Black Knob.
    • Priority Paging Feature By-Passes the Effect of the Attenuator
    • Rack Mount Attenuator for Mounting on to Blank Panels in Equipment Cabinets
    • The SPDT Relay is Operated with 24 VDC at 10mA

    SPECIFICATIONS
    Power Rating 35W
    Total Attenuation 27dB
    Height 2 3/4" (6.985 cm)
    Width 1 3/4" (4.445 cm)
    Depth 2 1/8" (5.3975 cm)
    Shipping Weight 1.00 lb (0.45 kgs)
    Safety Listed 813, 2043

    SUPPORT FILES

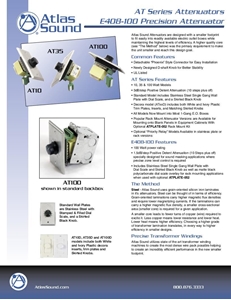

    DSAttenuators
    CAD Drawing
    ATSERIES

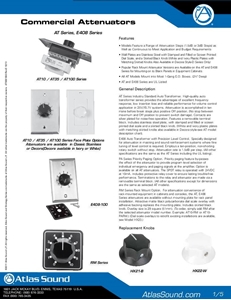

    Data Sheet
    ATS001063 Commercial Attenuators Datasheet RevD

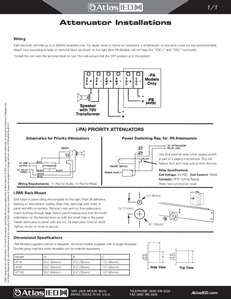

    Installation Sheet
    ATS004344B AT Volume Control Install Sheet
