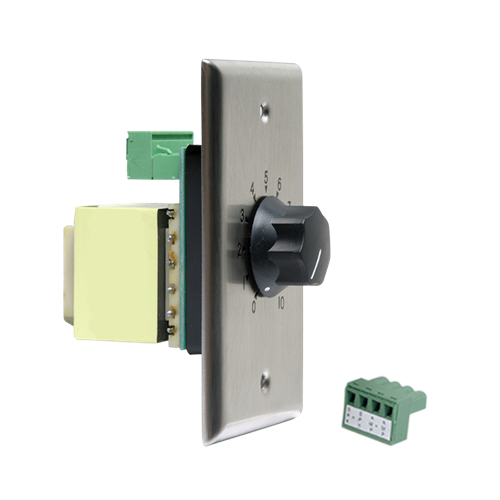

35 Watt Single Gang Stainless Steel 70.7V Commercial Attenuator

  • UL Listed
  • 70V / 100V Operation

    High-quality auto transformer series provides the advantages of excellent frequency response, low insertion loss and reliable performance for volume control application in 25 and 70.7-volt systems. Attenuation is accomplished in ten make before break steps plus positive off position. (No stop between maximum and off position to prevent switch damage). Contacts are silver plated for noise-free operation. Features a removable terminal block. Includes stainless steel plate, with stamped and filled or screen printed dial scale and a skirted black knob. (White and ivory plastic plates with matching skirted knobs also available in Decora style-see AT model description chart.)

    10 Attenuation Steps Plus Positive Off
    Mount into Most 1-Gang E.O. Boxes
    Wall Plates are Stainless Steel with Stamped and Filled Dial Scale, and a Skirted Black Knob
    Tech Specs
    Plate Size 1 gang
    Plate Type Stainless Steel
    Power Rating 35W
    Total Attenuation 27dB
    Height 4 1/2" (11.43 cm)
    Width 2 3/4" (6.985 cm)
    Depth 2 1/8" (5.3975 cm)
    Shipping Weight 1.00 lb (0.45 kgs)
    Safety Listed 813, 2043
    Support Files
    CAD Drawing ATSERIES Download
    Data Sheet ATS001063 Commercial Attenuators Datasheet RevD (5 pages) View | Download
    Installation Sheet ATS004344B AT Volume Control Install Sheet (1 page) View | Download
