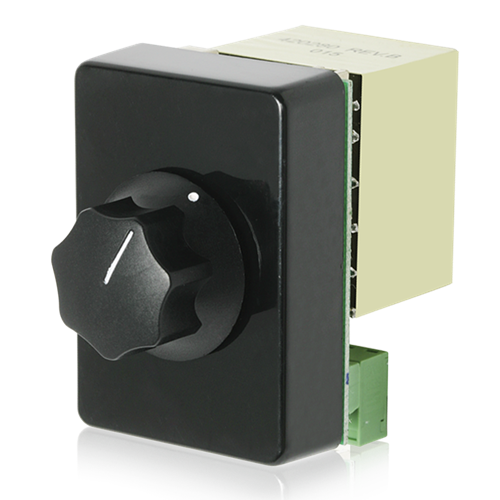

Deluxe, Rack Mounted 35W Attenuator, 3dB Steps

  • UL Listed
  • 70V / 100V Operation
    For attenuation convenience of rack-mounted equipment in cabinets and consoles, the AT attenuators are available without mounting plate for rack panel installation. Attractive matte black polycarbonate dial scale overlay with adhesive backing replaces the mounting plate. Includes skirted black knob. Overlay size is 29 sq. (51mm). (Dial scale overlays to retrofit existing installations are available, see hardware section Model HX23.)

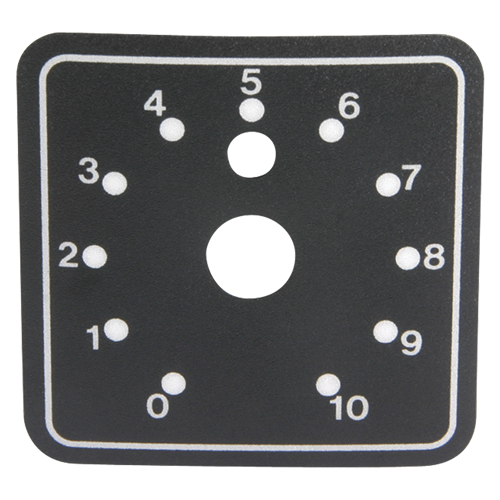

    Attractive Matte Black Polycarbonate Dial Scale Overlay with Adhesive Backing Replaces the Mounting Plate. Includes Skirted Black Knob.
    Mount Up to Six Attenuators on Atlas ATPLATE-052 Rack Plate
    Tech Specs
    Power Rating 35W
    Total Attenuation 27dB
    Height 2 3/4" (6.985 cm)
    Width 1 3/4" (4.445 cm)
    Depth 2 1/8" (5.3975 cm)
    Shipping Weight 1.00 lb (0.45 kgs)
    Safety Listed 813, 2043
    Support Files
    CAD Drawing ATSERIES Download
    Data Sheet ATS001063 Commercial Attenuators Datasheet RevD (5 pages) View | Download
    Installation Sheet ATS004344B AT Volume Control Install Sheet (1 page) View | Download
