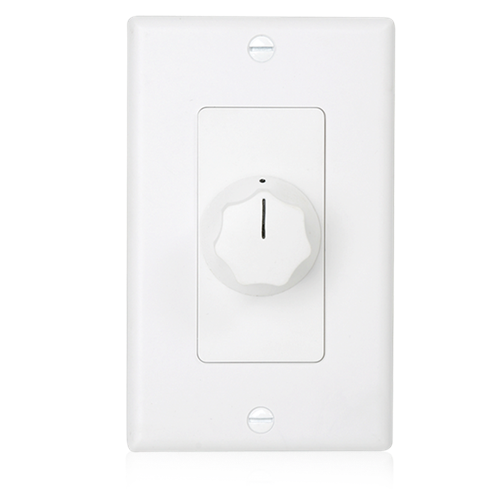

Deluxe Decora Plate Mounted 70.7V 35W Attenuator, 3dB Steps

Availability: In stock
Your Price:
  • UL Listed
  • 70V / 100V Operation

    Decora style High-quality auto transformer series provides the advantages of excellent frequency response, low insertion loss and reliable performance for volume control application in 25 and 70.7-volt systems. Attenuation is accomplished in ten make before break steps plus positive off position. (No stop between maximum and off position to prevent switch damage). Contacts are silver plated for noise-free operation. Features a removable terminal block, and come complete with white and ivory plastic plates with matching skirted knobs.

    • Attractive Alternative to Commercial Series Attenuators
    • Mount into Most 1-Gang E.O. Boxes
    • White and Ivory Plastic Plates with Matching Skirted Knobs in Decora Style

    Plate Size 1 gang
    Plate Color White - Ivory
    Plate Type Decora
    Power Rating 35W
    Total Attenuation 27dB
    Height 4 1/2" (11.43 cm)
    Width 2 3/4" (6.985 cm)
    Depth 2 1/8" (5.3975 cm)
    Shipping Weight 1.20 lbs (0.54 kgs)
    Safety Listed 813, 2043
    Warranty Period 60 months from date of purchase

    AT35D CAD Drawing AT35D CAD Drawing
    AT35D Data Sheet (5 pages) AT35D Data Sheet (5 pages)
    AT35D Install Sheet (1 page) AT35D Install Sheet (1 page)
    AT Volume Control Install Sheet (1 page) AT Volume Control Install Sheet (1 page)
