Wall Plate Input Select Switch with Volume Control 10k Pot and Input Indicator Use With AAPHD Amplifiers

WPD-RISRL
Availability: In stock
Your price (USD): $45.99

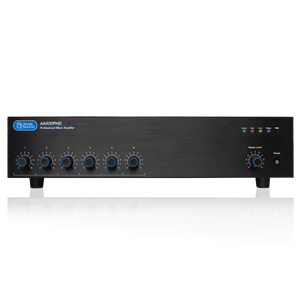

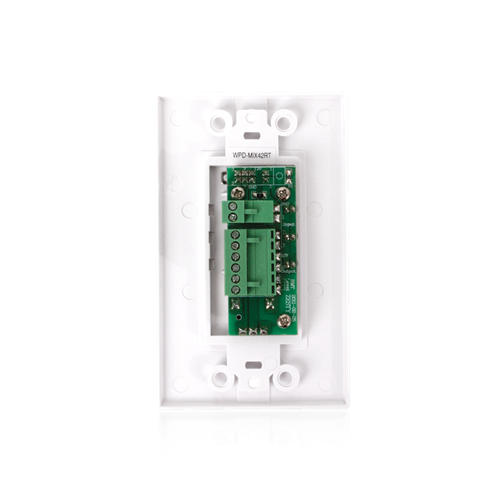

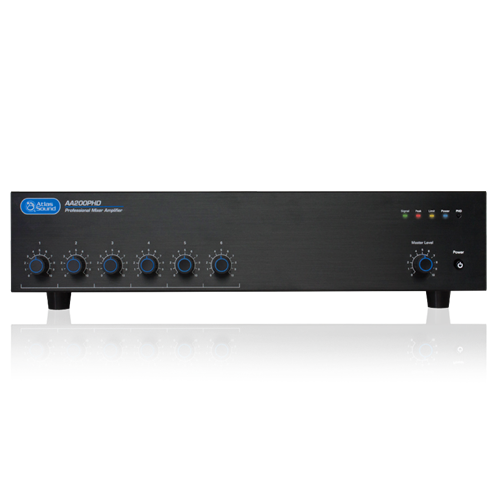

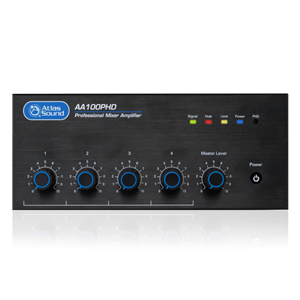

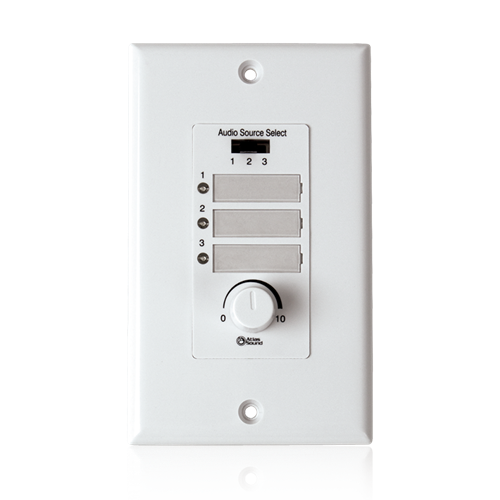

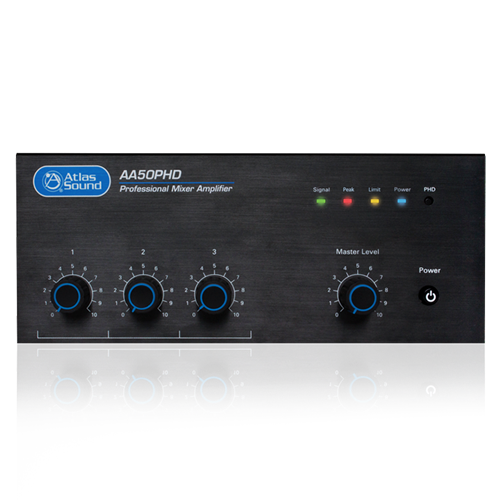

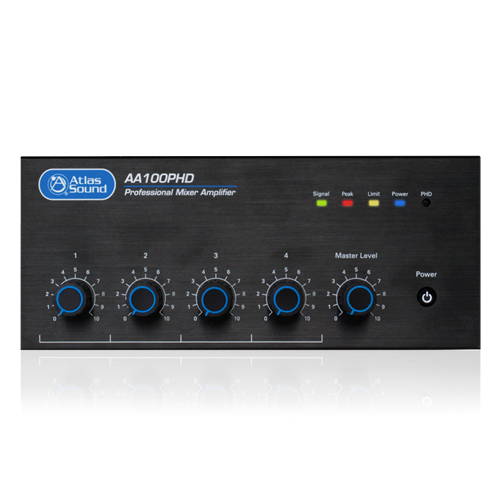

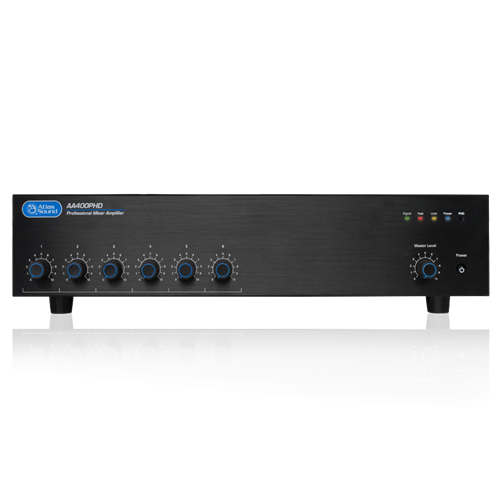

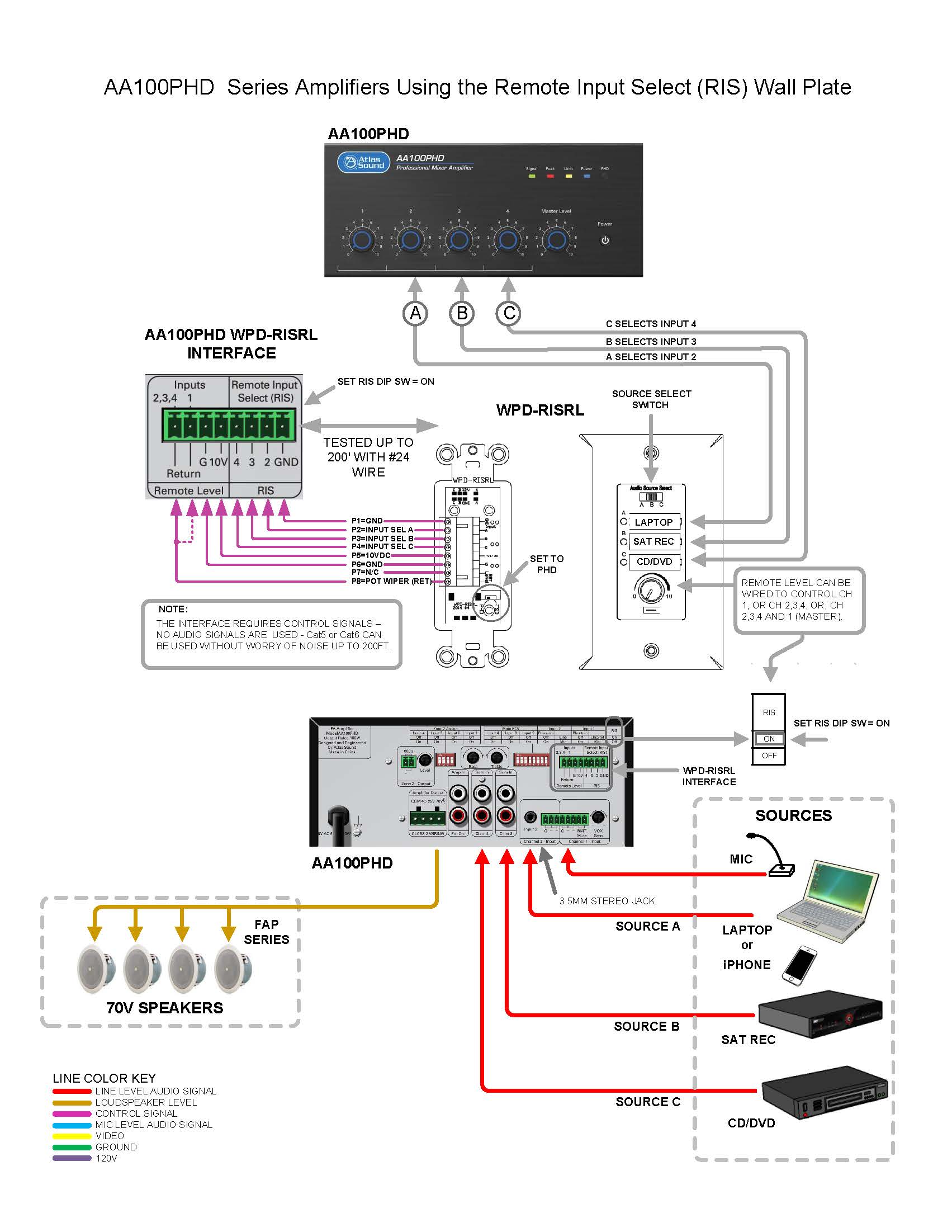

    The WPD-RISRL is a decor style wall plate that is designed for use with the AA50PHD, AA100PHD, AA200PHD, or AA400PHD mixer amplifiers to use the remote input selection (RIS) feature.   The WPD-RISRL features an audio source slide selector as well as a source volume control.  The unit includes an LED indicator to indicate which source is selected and if it is active.  The unit fits in a single gang electrical outlet and uses an 8-conductor interface connection that includes a single 4 position removable Phoenix connector and dual 2 position Phoenix style connectors.  When connected to the RIS output on an appropriate AAPHD amplifier, the WPD-RISRL allows for remote selection and volume adjustment of inputs 2, 3, and 4 allowing the rack to remain locked and secured.

    Atlas WPD-RISRL

    FEATURES
    Designed for Remote Input Selection and Volume Adjustment Used with Select AAPHD Amplifiers
    Input Select Slide Switch
    Level Control Via On Board 10kΩ Potentiometer
    System Status Indicator (Red)
    8-Conductor Interface Connection
    Label Guard
    SPECIFICATIONS
    Height 4.5" (114mm)
    Width 2.5" (63mm)
    Depth 0.24" (6.4mm)
