4-Input, 100-Watt Mixer Amplifier with Automatic System Test (PHD)

AA100PHD
  • Rack Kit Sold Separately
  • UL Listed
  • 4OHM8OHMCAPABLE
  • 70V / 100V Operation
  • Fault Reporting
  • Remote Level

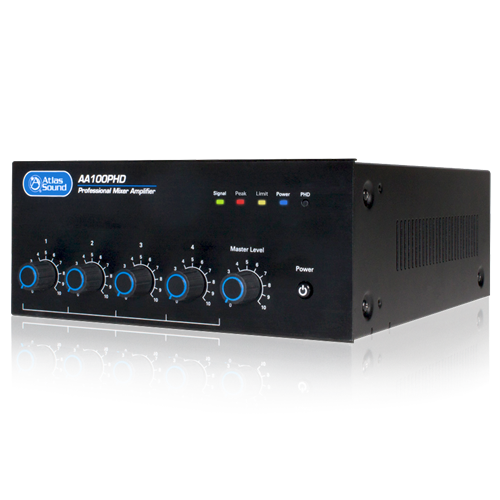

    The AA100PHD is a four input channel mixer amplifier designed for distributed business paging and background music (BGM) systems, small to medium speech privacy systems, and in applications where music on hold (MOH) plus paging is required. With two balanced microphone/line inputs and two stereo summing line inputs, the AA100PHD will accommodate a variety of input sources including paging microphones, media players, and digital music receivers.

    What Sets the AAPHD Series Apart?

    The AA100PHD includes a patent pending automatic system test, the Push Here Diagnostic® (PHD). The PHD button is designed to check the connected loudspeaker lines for wiring and impedance errors. This test can be activated once all loudspeakers are connected and the circuit automatically verifies that the attached loudspeakers' tap settings do not exceed the amplifier's rated power, no loudspeakers are mistakenly tapped at 8Ω, and the loudspeaker wire is free from shorts.

    AAPHD Diagnostics

    The unit also incorporates a Remote Input Selection and Remote Level Control feature that allows the integrator to use a remote wall plate (AtlasIED model WPD-RISRL) and allow the user to select the input and adjust the volume from that wall plate up to 200 feet from the amplifier.

    AA100PHD RISRL

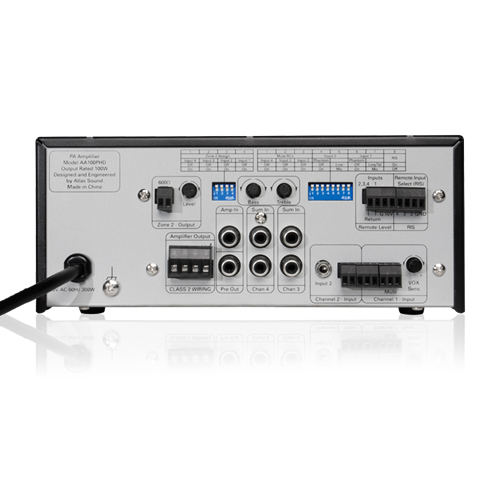

    The AA100PHD provides 100-watts output power into 25V, 70.7V, or 4Ω loudspeaker systems. Rear panel DIP switch allows for creation of Zone 2 output/output mix using any or all of the four inputs. Unit can also be set-up to mute Inputs 2, 3, and 4 based on signal from Input 1 for paging applications where other input sources need to be muted during a page. Input 1 and Input 2 are either Mic or Line input selectable and Phantom Power is an option when using either as a mic.

    FEATURES
    Rear Mounted DIP Switch Allows Mute Receive for Inputs 2 and 3
    Contact Closure Mute Terminals
    Variable Mute Sensitivity Control for Input 1
    Preamp In for External Processors
    Line Output
    Remote Input Select (RIS)
    Remote Level Control
    Input Assignable Zone 2 Output
    Two Unbalanced, Summing Line Level Inputs
    Two Balanced Mic/Line/Tel Inputs w/ Phantom Power
    Automated Diagnostic System Test (Push Here Diagnostic®)
    100W into 25V/70.7V and 4Ω Loads
    SPECIFICATIONS
    Frequency Response 50Hz - 15kHz
    Connector Type 4 Position Phoenix 3.5mm Pitch
    Power Output Max. Average Power @ 50Hz-15kHz with .5% THD, 4Ω 100W RMS
    Height 3.66" (93mm)
    Width 8.27" (210mm)
    Depth 10.87" (276mm)
    Weight 13lb
    Shipping Weight 15.2lb
    Voltage Compatibility 110V - 120V
    SUPPORT FILES
    Owners Manual ATS004880E AA100PHD Owners Manual (20 pages) View | Download

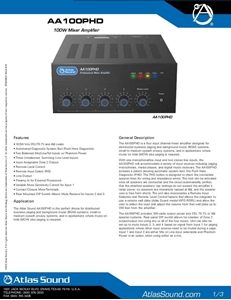

    Data Sheet Data Sheet (3 pages) View | Download
    Application Example AAPHD_WPD-RISRL_App (2 pages) View | Download
    Installation Sheet ATS004912B AAPHD Amplifier Impedance Diagnostic Test Example (2 pages) View | Download
    Owners Manual AA100PHD Owners Manual Spanish (20 pages) View | Download
