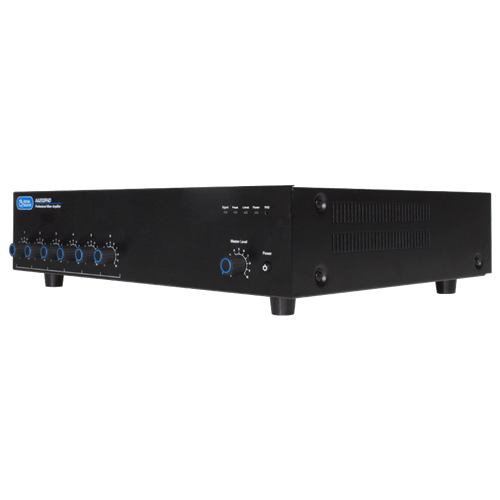

6-Input, 200-Watt Mixer Amplifier with Automatic System Test (PHD)

AA200PHD
Availability: Temporarily Out of Stock - Product will ship once in stock.
Your price (USD): $841.99
  • Rack Kit Sold Separately
  • UL Listed
  • 4OHM8OHMCAPABLE
  • 70V / 100V Operation
  • Fault Reporting
  • Remote Level
    DESCRIPTION

    The AA200PHD is a six input channel mixer amplifier designed for distributed business paging and background music (BGM) systems, medium to large speech privacy systems, and in applications where music on hold (MOH) plus paging is required. With four balanced microphone/line inputs and two stereo summing line inputs, the AA200PHD will accommodate a variety of input sources including paging microphones, media players, and digital music receivers.

    What Sets the AAPHD Series Apart?

    The AA200PHD includes a patent pending automatic system test, the Push Here Diagnostic® (PHD). The PHD button is designed to check the connected speaker lines for wiring and impedance errors. This test can be activated once all speakers are connected and the circuit automatically verifies that the attached speakers' tap settings do not exceed the amplifier's rated power, no speakers are mistakenly tapped at 8Ω, and the speaker wire is free from shorts.

    AAPHD Diagnostics

    The unit also incorporates a Remote Input Selection and Remote Level Control feature that allows the integrator to use a remote wall plate (AtlasIED model WPD-RISRL) and allow the user to select the input and adjust the volume from that wall plate up to 200 feet from the amplifier.

    AA200PHD RISRL

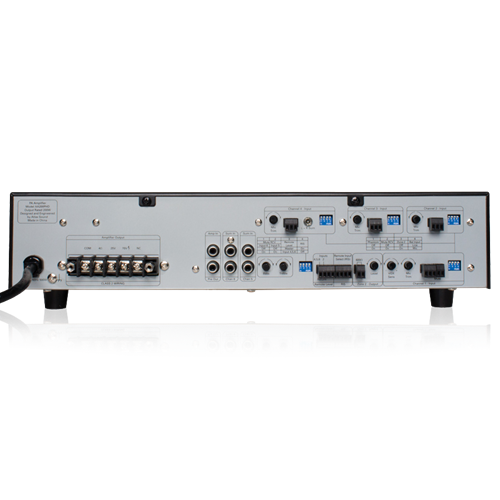

    The AA200PHD provides 200-watts output power into 25V, 70.7V, or 4Ω speaker systems. Rear panel DIP switch allows for creation of Zone 2 output mix using any or all of inputs 1-4. Unit can also be set-up to mute Inputs 2 through 6 on signal from Input 1 for paging applications where other input sources need to be muted during a page. Inputs 1-4 are either Mic or Line input selectable and Phantom Power is an option when using them as a microphone input.


    FEATURES
    • 200W into 25V/70.7V and 4Ω Loads
    • Automated Diagnostic System Test (Push Here Diagnostic®)
    • Four Balanced Mic/Line/Tel Inputs w/ Phantom Power
    • Input Assignable Zone 2 Output
    • Remote Level Control
    • Remote Input Select (RIS)
    • Line Output
    • Preamp In for External Processors
    • Variable Mute Sensitivity Control for Input 1
    • Contact Closure Mute Terminals
    • Optional Rack Mount Kit Available - Model AARMK2-0

    SPECIFICATIONS
    Frequency Response 50Hz - 15kHz
    Connector Type 4 Position Phoenix 3.5mm Pitch
    Power Output Max. Average Power @ 50Hz-15kHz with .5% THD, 4Ω 200W RMS
    Height 3.66" (93mm)
    Width 16.54" (420mm)
    Depth 14.6" (422mm)
    Weight 26lb
    Shipping Weight 29.5lb
    Voltage Compatibility 110V - 120V

    SUPPORT FILES
    Owners Manual

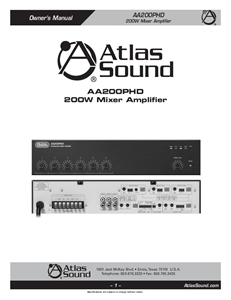

    ATS004885D AA200PHD Owners Manual
    Data Sheet

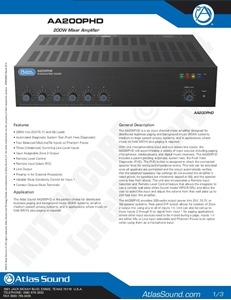

    ATS004922 AA200PHD Datasheet
    Application Example
    Application Example AAPHD Series Amplifiers Using the Remote Input Select (RIS) and WPD-RISRL
    Installation Sheet

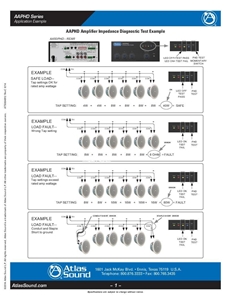

    ATS004912B AAPHD Amplifier Impedance Diagnostic Test Example
