6-Input, 400 Watt Mixer Amplifier with Automatic System Test Circuitry (PHD)

AA400PHD
  • Rack Kit Sold Separately
  • UL Listed
  • 4OHM8OHMCAPABLE
  • 70V / 100V Operation
  • Fault Reporting
  • Remote Level

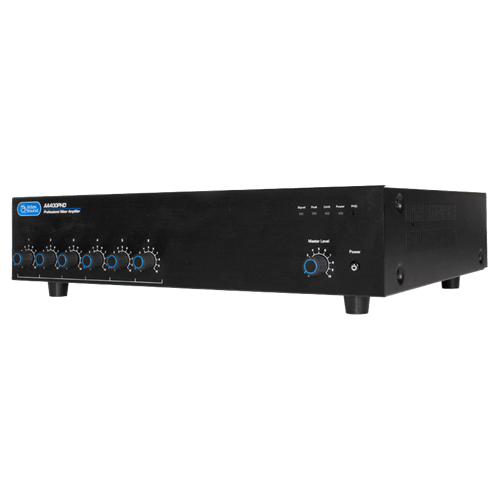

    The AA400PHD is a six input channel mixer amplifier designed for distributed business paging and background music (BGM) systems, medium to large speech privacy systems, and in applications where music on hold (MOH) plus paging is required. With four microphone/line input and two stereo summing line inputs, the AA400PHD will accommodate a variety of input sources including paging microphones, media players, and digital music receivers.

    What Sets the AAPHD Series Apart?

     The AA400PHD includes a patent pending automatic system test, the Push Here Diagnostic® (PHD). The PHD button is designed to check the connected loudspeaker lines for wiring and impedance errors. This test can be activated once all loudspeakers are connected and the circuit automatically verifies that the attached loudspeakers' tap settings do not exceed the amplifier's rated power, no loudspeakers are mistakenly tapped at 8Ω, and the loudspeaker wire is free from shorts.

    AAPHD Diagnostics

    The unit also incorporates a Remote Input Selection and Remote Level Control feature that allows the integrator to use a remote wall plate (AtlasIED model WPD-RISRL) and allow the user to select the input and adjust the volume from that wall plate up to 200 feet from the amplifier.

    AA400PHD RISRL

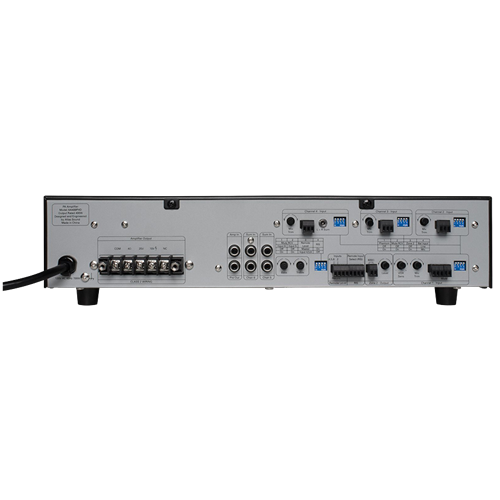

    The AA400PHD provides 400-watts output power into 25V, 70.7V, or 4Ω loudspeaker systems. Rear panel DIP switch allows for creation of Zone 2 output mix using any or all of inputs 1-4. Unit can also be set-up to mute Inputs 2 through 6 on signal from Input 1 for paging applications where other input sources need to be muted during a page. Inputs 1-4 are either Mic or Line input selectable and Phantom Power is an option when using them as a microphone input.

    FEATURES
    400W into 25V/70.7V and 4Ω Loads
    Automated Diagnostic System Test (Push Here Diagnostic®)
    Four Balanced Mic/Line/Tel Inputs w/ Phantom Power
    Input Assignable Zone 2 Output
    Remote Level Control
    Remote Input Select (RIS)
    Line Output
    Preamp In for External Processors
    Variable Mute Sensitivity Control for Input 1
    Contact Closure Mute Terminals
    Optional Rack Mount Kit Available - Model AARMK2-0
    SPECIFICATIONS
    Frequency Response 50Hz - 15kHz
    Connector Type 4 Position Phoenix 3.5mm Pitch
    Power Output Max. Average Power @ 50Hz-15kHz with .5% THD, 4Ω 400W RMS
    Height 3.66" (93mm)
    Width 16.54" (420mm)
    Depth 14.6" (422mm)
    Weight 34lb
    Shipping Weight 37.2lb
    Voltage Compatibility 110V - 120V
    SUPPORT FILES

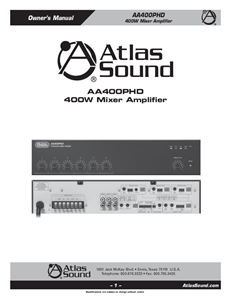

    Owners Manual ATS004886D AA400PHD Owners Manual (24 pages) View | Download

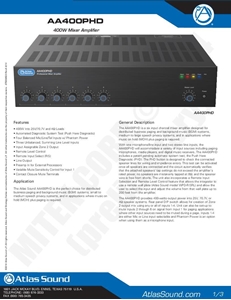

    Data Sheet ATS004923 AA400PHD Datasheet (3 pages) View | Download

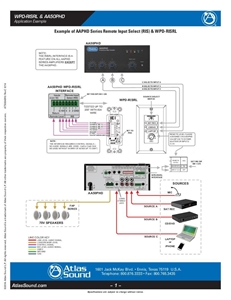

    Application Example AAPHD_WPD-RISRL_App (2 pages) View | Download

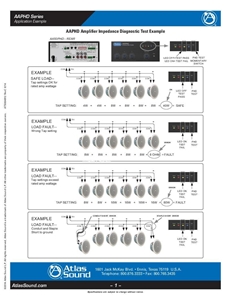

    Installation Sheet ATS004912B AAPHD Amplifier Impedance Diagnostic Test Example (2 pages) View | Download
