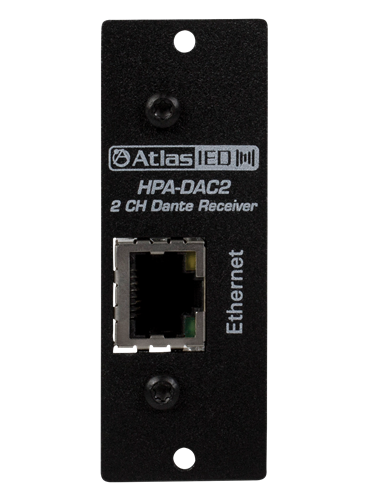

Dante Accessory Card for HPA Amplifiers

HPA-DAC2
  • Dante enabled

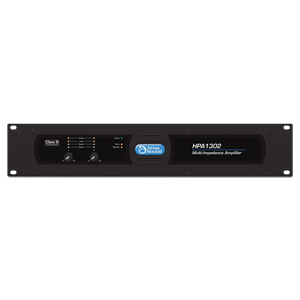

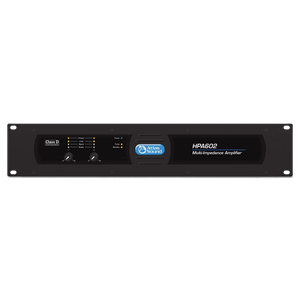

    The HPA-DAC2 accessory card is designed to work in conjunction with HPA Series 2-channel amplifiers. The HPA-DAC2 is a 2-input Dante™ receiver that features digital audio transportation over standard IP networks. The HPA Series 2-channel amplifiers come standard with two balanced line inputs and an accessory card slot to add an additional 2-inputs, giving the amplifier a total of 4-inputs.

    Analog Input 1 and Dante™ Input 1 are isolated from each other and are electronically summed together forming a mixed output. Both Input levels to the amplifier channel are controlled by the Ch-1 level control. Channel 2 inputs are configured the same as Channel 1.

    FEATURES
    Dante™ Network Audio Enabled
    2-Channel Receiver
    Integrates with 2-Channel HPA Series Amplifiers
    SPECIFICATIONS
    Connector Type RJ-45
    Gain Controls 0dBFS = 20dBu & 0dBFS = 10dBu PCB shunt selectable
    Frequency Response 20Hz - 20KHz +/- 1dB
    THD .06% @ 1KHz
    Maximum Output Level 7dBu
    Height 0.97" (2.46cm)
    Width 2.7" (6.8cm)
    Depth 2.5" (6.3cm)
    Weight 2.6oz (0.07kg)
    SUPPORT FILES

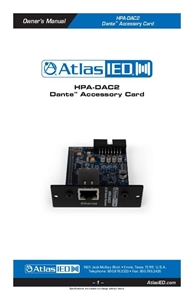

    Owners Manual ATS005441 RevB HPA-DAC2 Owners Manual (12 pages) View | Download
