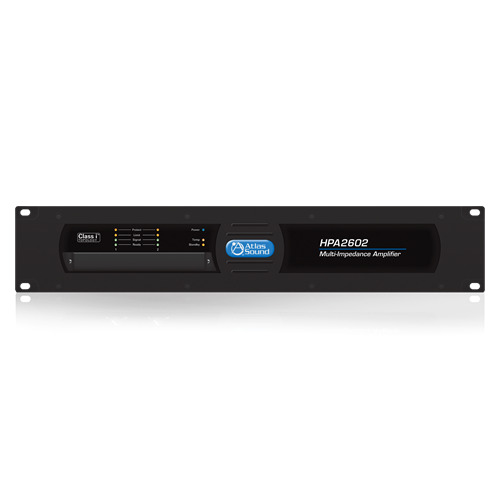

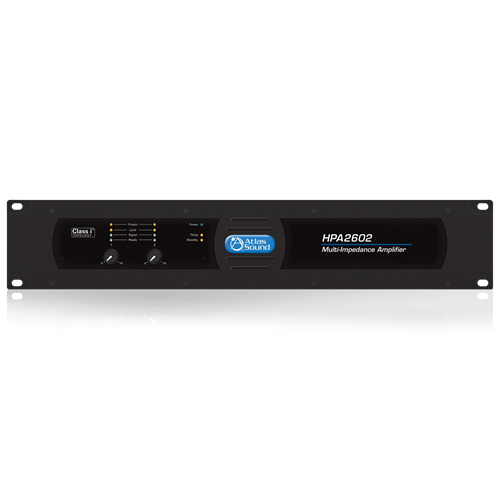

Dual-Channel, 3200-Watt Commercial Amplifier

HPA2602
  • 8Ω Operation
  • 70V / 100V Operation
  • Dante Network Option

    The AtlasIED High Power Amplifier “HPA” Series has been designed to be versatile for uses in both commercial 70V distributed systems and professional applications that require amplifiers to handle 4 and 2 ohm loads. The HPA is compact and lightweight in comparison to other models delivering the similar power levels. The HPA Series features generation II Class I Output topology that gives the efficiency close to a Class D amplifier with the sound quality of a Class AB amplifier. The power supply is switch mode global auto sensing gen 3 design that maintains a stable output during fluxuating power conditions. The power supply and output stage collectively are designed to deliver exceptional dynamic high output voltage and
    current to virtually any loudspeaker load.

    The HPA Series features front panel detented level controls with a security cover, remote turn on, balanced inputs, fault reporting and an accessory card slot for an optional Dante™ 2-channel digital audio interface. Cooling is not an issue because of the unique output stage low resistance direct couple thermal transfer design. HPA also is energy efficient and meets Energy Star standards with only drawing 1W of power in standby mode.

    Whether your application is a large distributed constant voltage sound system or a high SPL sound reinforcement system, the AtlasIED HPA Series is the answer for high power/cost effective amplification need

    FEATURES
    70.7V and 2Ω, 4Ω, and 8Ω Output Configurable
    Balanced Inputs Euro Block Phoenix Style Connector
    High Efficiency Fan Cooling
    Remote Turn On

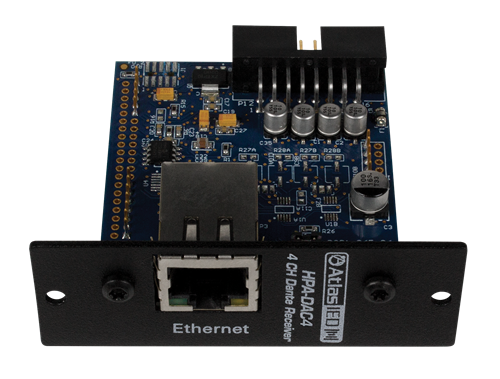

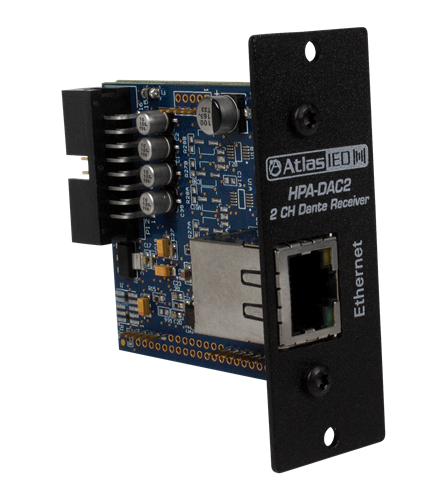

    Accessory Card Slot for Optional Dante™ Digital Network Audio Card
    Short-Circuit, Temperature, and DC Offset Protection
    Soft Clip Limiter Protection
    Stepped Attenuators with Security Covers

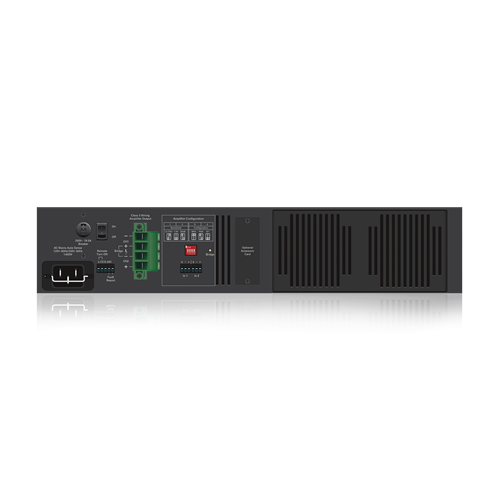

    Stereo, Bridge, or Parallel Operating Modes Selectable via Rear Mounted Switch
    Auto Sensing 120V/220V AC Mains Power Supply
    Meets Energy Star Standards - 1W Standby Mode
    SPECIFICATIONS
    Power Output
    70.7V 2 x 1300W
    100V NA
    2 x 800W
    2 x 1300W
    2 x 1800W
    8Ω Bridged 1 x 2500W
    1Ω RMS Power Output 1 x 3200W
    Frequency Response 20Hz - 20kHz
    THD <0.05%
    Channels Two
    Signal to Noise Ratio >85dB
    Connector Type Terminal Block &amp; Phoenix
    Width 19" (483mm)
    Depth 15" (381mm)
    Number of Fans 1 - Variable Speed
    Weight 33 lbs. (15kg)
    BTU All Channels Driven AES 4265 BTU (70.7V, 120VAC)
    Max Current All Channels Driven Continuous 18.4A
    Rack Units 2 RU
    Height 3.5" (89mm)
    Finish Black
    Voltage Compatibility Universal
    SUPPORT FILES

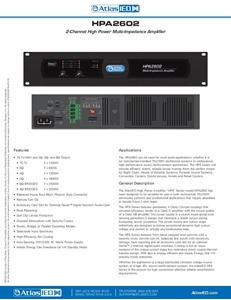

    Data Sheet HPA2602 Data Sheet (5 pages) View | Download

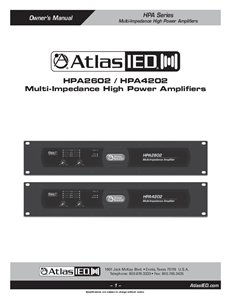

    Owners Manual HPA Series Amplifier Owners Manual (20 pages) View | Download
