Dual-Channel, 600-Watt Commercial Amplifier

HPA602
  • 70V / 100V Operation
  • 8Ω Operation
  • Dante Network Option

    The AtlasIED High Power Amplifier “HPA” Series is designed for use in both commercial 70V/100V distributed systems and professional applications that require amplifiers to handle multiple impedance loads. The HPA is compact and lightweight in comparison to other models delivering similar power levels. The HPA Series features Generation II Class D Output topology that provides great efficiency with the sound quality of a Class AB amplifier. The power supply is a switch mode, global auto sensing design that maintains a stable output during fluctuating power conditions. The power supply and output stage collectively are designed to deliver exceptional dynamic high output voltage and current to virtually any loudspeaker load.

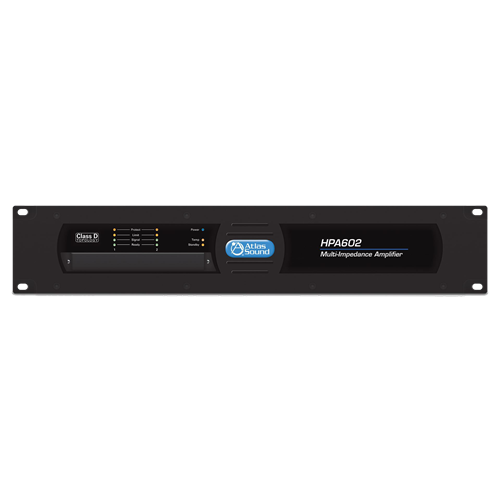

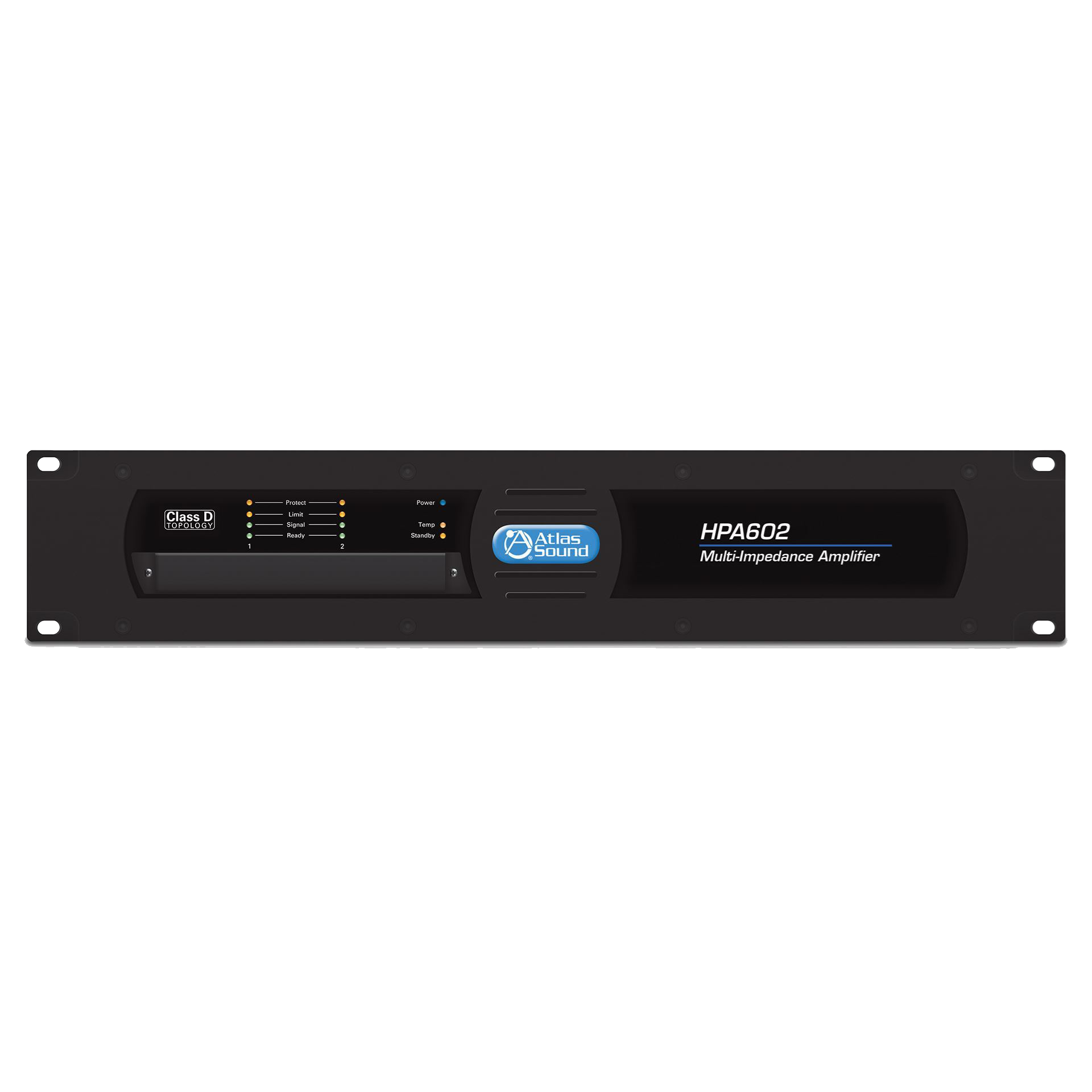

    The HPA Series features front panel detente level controls with a security cover, remote turn on, balanced inputs, fault reporting and a

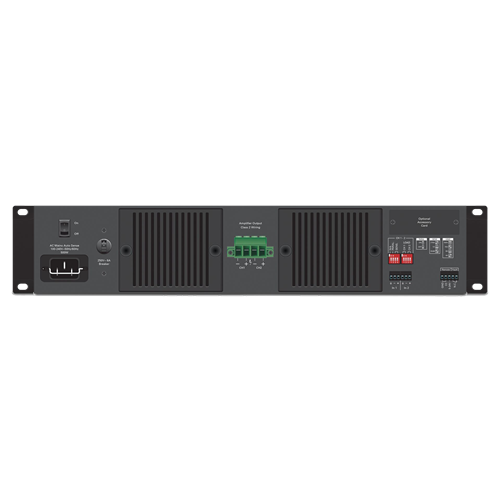

    rear panel accessory card slot for an optional Dante™ 2-channel digital audio interface. HPA Series amplifiers feature a unique output
    stage, low resistance direct coupled thermal transfer design that effectively maintains optimal temperature across all loads and output
    levels. HPA Series amplifiers are also energy efficient and meet Energy Star standards, drawing only 1W of power in standby mode.

    Whether the application is a large distributed constant voltage sound system or a high SPL sound reinforcement system, the AtlasIED
    HPA Series is the answer for high power/cost effective amplification needs.

    FEATURES
    4Ω, 8Ω, 70.7V, & 100V Operation
    Balanced Inputs Euro Block Phoenix Style Connector

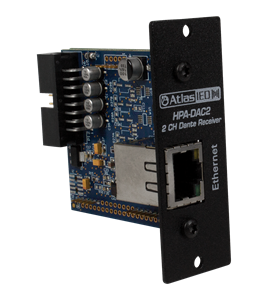

    Accessory Card Slot for Optional Dante™ Digital Network Audio Card
    Short-Circuit, Temperature, and DC Offset Protection
    Auto Sensing 100V-240V~ AC Mains Power Supply
    Stepped Attenuatorsw with Security Covers
    SPECIFICATIONS
    Power Output
    70.7V 2 x 300W
    100V 2 x 300W
    2 x 300W
    2 x 300W
    NA
    8Ω Bridged NA
    1Ω RMS Power Output NA
    Frequency Response 20Hz - 20kHz
    THD <0.05%
    Channels Two
    Signal to Noise Ratio >85dB
    Connector Type Terminal Block &amp; Phoenix
    Number of Fans 1 - Variable Speed
    BTU All Channels Driven AES 607 BTU (70.7V, 120VAC)
    Max Current All Channels Driven Continuous 14.4A
    Rack Units 2 RU
    Height 3.5" (89mm)
    Width 19" (483mm)
    Depth 9.3" (236mm)
    Weight 14.8 lbs. (6.7kg)
    Finish Black
    Voltage Compatibility Universal
    SUPPORT FILES

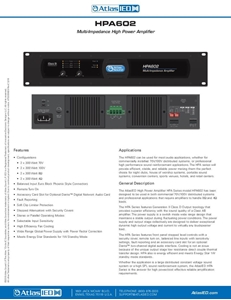

    Data Sheet HPA602 Data Sheet (6 pages) View | Download

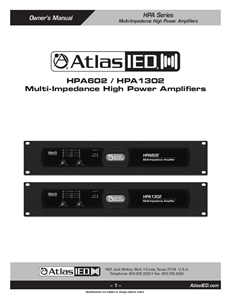

    Owners Manual HPA602-HPA1302 Owners Manual (20 pages) View | Download
    CAD Drawing HPA602 CAD Download
