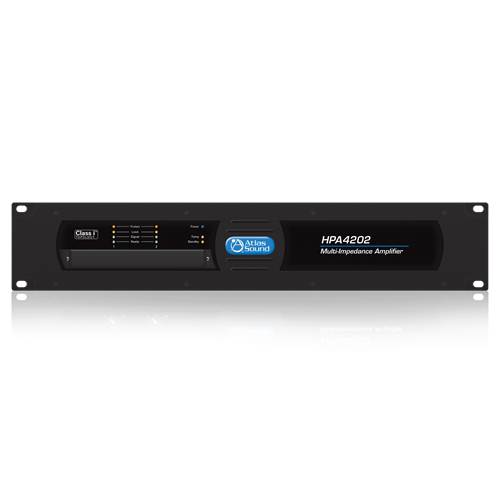

Dual-Channel, 4800-Watt Commercial Amplifier

Availability: In stock
Your Price:
  • 8Ω Operation
  • 70V / 100V Operation
  • Dante enabled

    The AtlasIED High Power Amplifier “HPA” Series has been designed to be versatile for uses in both commercial 70V/100V distributed systems and professional applications that require amplifiers to handle 4 and 2 ohm loads. The HPA is compact and lightweight in comparison to other models delivering the similar power levels. The HPA Series features generation II Class I Output topology that gives the efficiency close to a Class D amplifier with the sound quality of a Class AB amplifier. The power supply is switch mode global auto sensing gen 3 design that maintains a stable output during fluxuating power conditions. The power supply and output stage collectively are designed to deliver exceptional dynamic high output voltage and
    current to virtually any speaker load.

    The HPA Series features front panel detented level controls with a security cover, remote turn on, balanced inputs, fault reporting and an accessory card slot for an optional Dante™ 2 or 4-channel digital audio interface. Cooling is not an issue because of the unique output stage low resistance direct couple thermal transfer design. HPA also is energy efficient and meets Energy Star standards with only drawing 1W of power in standby mode.

    Whether your application is a large distributed constant voltage sound system or a high SPL sound reinforcement system, the AtlasIED HPA Series is the answer for high power/cost effective amplification need

    • 70.7V/100V and 2Ω, 4Ω, and 8Ω Output Configurable

    Power Output
    70.7V 2 x 2100W
    100V 2 x 2100W
    2 x 1200W
    2 x 2100W
    2 x 2500W
    8Ω Bridged 1 x 3800W
    1Ω RMS Power Output 1 x 4800W
    Frequency Response 20Hz - 20kHz
    THD <0.05%
    Channels Two
    Signal to Noise Ratio >85dB
    Connector Type Terminal Block & Phoenix
    Width 19" (483mm)
    Depth 15" (381mm)
    Number of Fans 1 - Variable Speed
    Weight 34 lbs. (15.4kg)
    BTU All Channels Driven AES 5975 BTU (70.7V, 120VAC)
    Max Current All Channels Driven Continuous 25.6A
    Rack Units 2 RU
    Height 3.5" (89mm)
    Finish Black
    Voltage Compatibility Universal
    Warranty Period 36 months from date of purchase

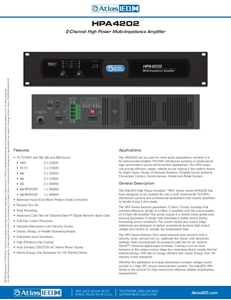

    HPA4202 Data Sheet (5 pages) HPA4202 Data Sheet (5 pages)
    HPA Series Amplifier Owners Manual (20 pages) HPA Series Amplifier Owners Manual (20 pages)
