60° X 40° Constant Directivity Re-Entrant Paging Horn

CD64
  • Driver Sold Separately
  • IP45

    The Industry's Only Constant Directivity Re-Entrant Horn
    New CD Series horns from AtlasIED provide greatly improved uniform sound coverage compared to conical designs.

    With all models the horizontal coverage pattern is precisely controlled over a frequency range. For mounting, the proven CJ46 style heavy-duty steel mounting bracket is utilized with positive lock for horizontal and vertical positioning in single or stacked multi-unit clusters.

    Construction is polyester resin and glass-fiber laminate integrally molded to a die-cast zinc throat section.

    Recommended AtlasIED Drivers: PD30 Series, PD-5 Series, PD60 Series.

    FEATURES
    High Efficiency Constant Directivity, Re-Entrant Horn Design
    Popular Coverage Patterns to Accommodate Most Applications
    Vertical Beamwidth Control Down to 1000Hz
    Heavy-Duty Positive Locking Steel Mounting Bracket for Secure Positioning
    Environment - Resistant Construction for Indoor / Outdoor Applications
    Equipped With Standard 1 3/8" - 18 Female Threads for Use with All PD Series Drivers
    SPECIFICATIONS
    SPL (1W/1M) w/ PD60 Driver 112dB
    Low Frequency Cut Off 300Hz
    Air Column Length 4.5'
    Dispersion H, 60°, ±10°, 600Hz - 6kHz V, 40°, ±10°, 1000Hz - 7kHz
    Height 18 1/4" (463mm)
    Length 15" (380mm)
    Width 22 3/4" (578mm)
    SUPPORT FILES

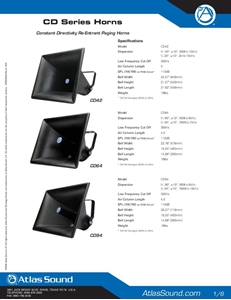

    Data Sheet
