Bi-Axial Horn Loudspeaker with Twin Reflex Air Column

  • Driver Sold Separately
  • IP45
  • TAA
  • BAA

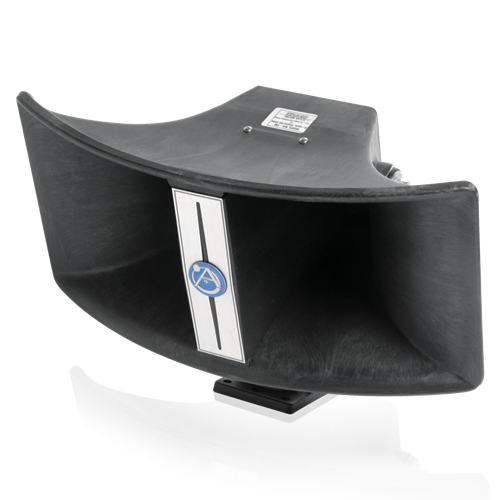

    Model BIA-100 is the original reflex horn featuring a bi-axial design with twin air columns and exponential bell for wide-angle coverage with a linear frequency response. The horn provides excellent acoustic loading maintained to a 350 Hz low-frequency roll-off and optimizes delivery of high and mid-range signal levels. BIA-100 is designed for use with AtlasIED PD Series compression drivers and models having 13/8" -18 male threads and 0.707" dia. throat openings.

    The easily-mounted horn features the labor-saving patented gimbal-mount bracket assembly (U.S. Patent # 4,325,529) which allows for directional positioning up to 180° vertically and horizontally. It includes a steel bracket, cast-mounting base and provisions for flange installation. The weather-resistant, non-glare matte black foam horn is resistant to resonance. Bracket assembly is finished in durable epoxy.

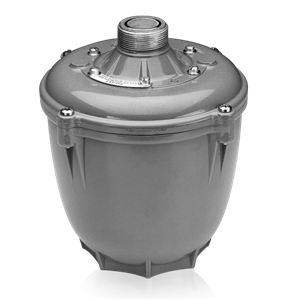

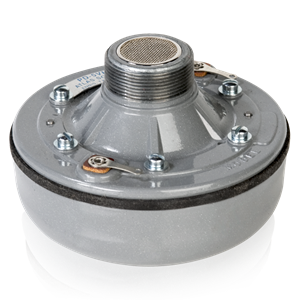

    Accepts All Atlas Sound and 1 3/8" - 18 Thread Compression Drivers with Throat Openings of 0.7" Dia.
    High-Efficiency Bi-Axial Horn Provides 130° x 60° Wide-Angle Sound Coverage
    Nominal Frequency Response of 350-8,000 Hz for High-Intelligibility Voice, Signaling and Full-Range Music in Indoor/Outdoor Applications
    Patented 180° Gimbal-Mount for Installation Flexibility
    Tech Specs
    Dispersion 130° x 60°
    Height 10 1/4" (26.035 cm)
    Width 21" (53.34 cm)
    Depth 19 1/4" (48.895 cm)
    Shipping Weight 16.00 lbs (7.26 kgs)
    Support Files
    EASE File BIA-100 EASE Download

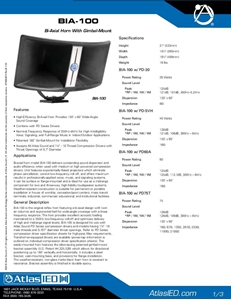

    Data Sheet BIA-100 Data Sheet (3 pages) View | Download
    CAD Drawing BIA-100 Download
    Revit Drawing BIA-100 Revit Drawing Download
