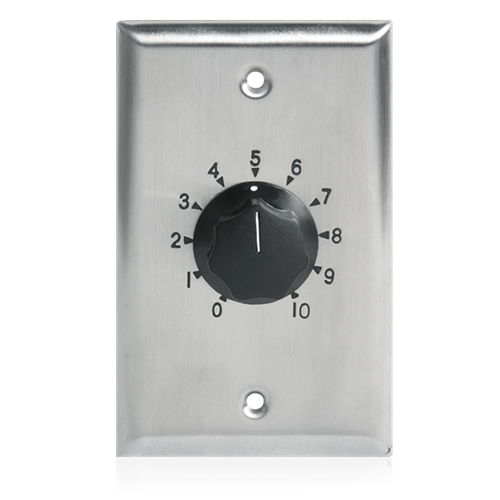

Deluxe Priority, Plate Mounted 10W Attenuator w/Priority Relay, 3dB Steps

AT10-PA
  • UL Listed
  • 70V / 100V Operation

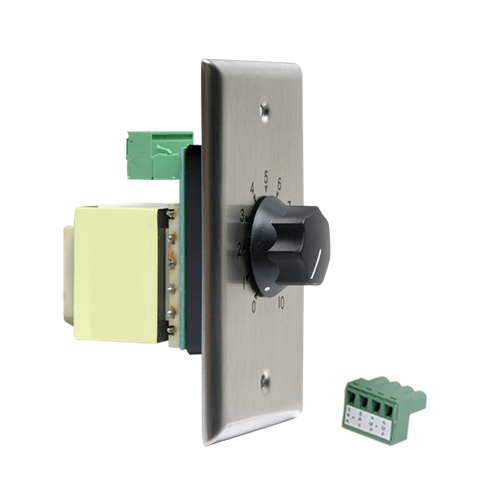

    Priority paging feature by-passes the attenuator dial setting to provide full program level to the loudspeakers. Option is available on all AT attenuators. The SPDT relay is operated with 24 VDC at 10mA. Includes protective relay cover to insure lasting trouble-free performance. Terminations to the relay and attenuator are made via a removable terminal block. (All other specifications except for dimensions are the same as selected AT models.
    Features
    Mount into Most 1-Gang E.O. Boxes
    Priority Feature Compatible with Atlas AA120M Amplifiers
    Priority Paging Feature By-Passes the Effect of the Attenuator
    The SPDT Relay is Operated with 24 VDC at 10mA
    Wall Plates are Stainless Steel with Stamped and Filled Dial Scale, and a Skirted Black Knob
    Tech Specs
    Plate Size 1 gang
    Plate Type Stainless Steel
    Power Rating 10W
    Total Attenuation 33 dB
    Height 4 1/2" (11.43 cm)
    Width 2 3/4" (6.985 cm)
    Depth 2 1/8" (5.3975 cm)
    Shipping Weight 1.00 lb (0.45 kgs)
    Safety Listed 813, 2043
    Support Files
    CAD Drawing ATSERIES Download
    Data Sheet ATS001063 Commercial Attenuators Datasheet RevD (5 pages) View | Download
    Installation Sheet ATS004344B AT Volume Control Install Sheet (1 page) View | Download
    CAD Drawing AT-PA Series CAD Drawings Download
