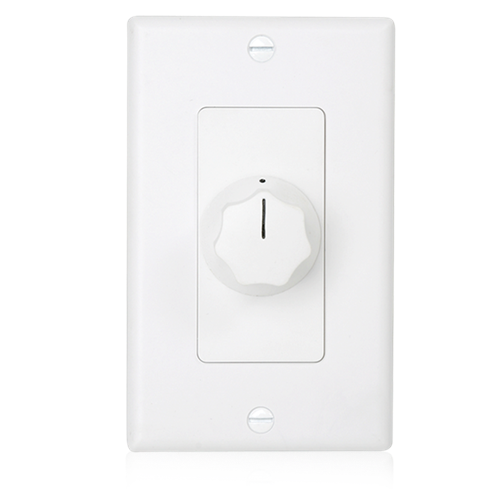

Deluxe Decora Plate Mounted 10W Attenuator, 3dB Steps

AT10D
  • UL Listed
  • 70V / 100V Operation

    Decora style high-quality auto transformer series provides the advantages of excellent frequency response, low insertion loss and reliable performance for volume control application in 25 and 70.7-volt systems. Attenuation is accomplished in ten make before break steps plus positive off position. (No stop between maximum and off position to prevent switch damage). Contacts are silver plated for noise-free operation. Features a removable terminal block, and comes complete with white and ivory plastic plates with matching skirted knobs.

    特征
    Attractive Alternative to Commercial Series Attenuators
    Mount into Most 1-Gang E.O. Boxes
    UL Listed
    White and Ivory Plastic Plates with Matching Skirted Knobs in Decora Style
    商品规格
    Plate Color White - Ivory
    Plate Size 1 gang
    Plate Type Decora
    Power Rating 10W
    Total Attenuation 33 dB
    Height 4 1/2" (11.43 cm)
    Width 2 3/4" (6.985 cm)
    Depth 2 1/8" (5.3975 cm)
    Shipping Weight 1.00 lb (0.45 kgs)
    Safety Listed 813, 2043
    支持文件
    CAD Drawing AT10D CAD Drawing Download
    Data Sheet ATS001063 Commercial Attenuators Datasheet RevD (5 pages) View | Download
    Installation Sheet ATS004344 AT Volume Control Install Sheet (1 page) View | Download
    CAD Drawing ATSERIES Download
