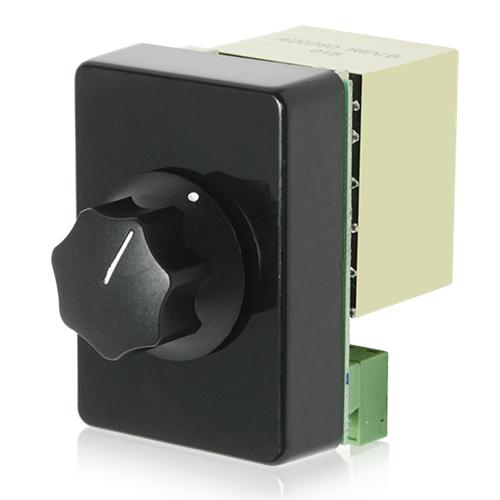

Deluxe Priority, Rack Mounted 10W Attenuator W/Priority Relay, 3dB Steps

  • UL Listed
  • 70V / 100V Operation
    High-quality auto transformer AT10-PARM provides the advantages of excellent frequency response, low insertion loss and reliable performance for volume control application in 25 and 70.7-volt systems.

    Attenuation is accomplished in ten make before break steps plus positive off position. (No stop between maximum and off position to prevent switch damage). Contacts are silver plated for noise-free operation.

    Features a removable terminal block. Includes screen printed dial scale and a skirted black knob.
    Attractive Matte Black Polycarbonate Dial Scale Overlay with Adhesive Backing Replaces the Mounting Plate. Includes Skirted Black Knob.
    Priority Paging Feature By-Passes the Effect of the Attenuator
    Rack Mount Attenuator for Mounting on to Blank Panels in Equipment Cabinets
    The SPDT Relay is Operated with 24 VDC at 10mA
    Tech Specs
    Power Rating 10W
    Total Attenuation 33 dB
    Height 2 3/4" (6.985 cm)
    Width 1 3/4" (4.445 cm)
    Depth 2 1/8" (5.3975 cm)
    Shipping Weight 1.00 lb (0.45 kgs)
    Safety Listed 813, 2043
