Precision, Plate Mounted 250W Attenuator

Availability: In stock
MSRP (USD): $91.99
  • UL Listed

    The E408-250 is specially designed for attenuation in masking and sound reinforcement systems where fine tuning of level control is required. It employs a ten-position, non-shorting rotary switch without stop. The attenuation rate is 1.5dB per step. (All other specifications are the same as the AT Series including the UL listing.)

    • 1.5 dB Steps for Sound Masking and Other Precision Applications
    • 250 Watt Power Handling
    • Wall Plate Mount Only
    • For Rack Mounting Use the E408-250-RM

    Plate Size 2 gang
    Plate Type Stainless Steel
    Power Rating 250 W
    Total Attenuation 15dB
    Height 4.56" (11.58 cm)
    Width 4.5" (11.43 cm)
    Depth 2.51" (6.38 cm)
    Weight 1.5 lb (0.68 kgs)
    Shipping Weight 1.79 lb (0.81 kgs)
    Safety Listed UL813, UL2043
    Warranty Period 60 months from date of purchase

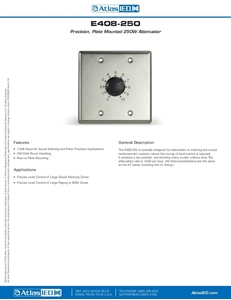

    E408-250 Data Sheet (4 pages) E408-250 Data Sheet (4 pages)

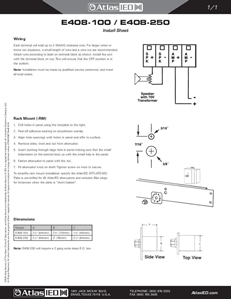

    E408 Install Sheet (1 page) E408 Install Sheet (1 page)
