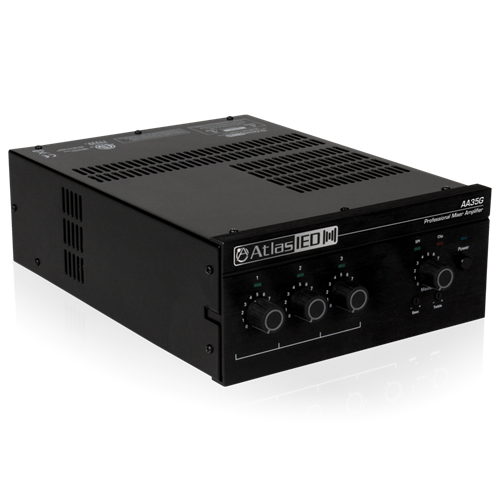

3-Input, 35-Watt Mixer Amplifier with Global Power Supply

AA35G
Availability: In stock
Your price (USD): $296.99
  • CETL
  • 70V / 100V Operation
  • 4OHM8OHMCAPABLE
  • Doesnt support 25V Operation
  • Rack Kit Sold Separately
    DESCRIPTION

    The AA35G is a three input channel mixer amplifier designed for distributed business paging and background music (BGM) systems, small to medium speech privacy systems, and in applications where music on hold (MOH) plus paging is required.

    With one microphone input and two stereo line inputs, the AA35G will accommodate a variety of input sources including paging microphones, CD players, and digital music receivers. A dip switch selectable matrix allows the creation of a Zone 2 mix from any or all of the input sources for music or messaging on hold applications. 70.7V, 100V, and 8Ω outputs are provided.

    Optional rack mount kit, model AAGRMK2, available.


    FEATURES
    • Three inputs (each with a front panel volume control) and a single output channel

    • Ideal for Paging, Background Music, and Music-On-Hold Applications

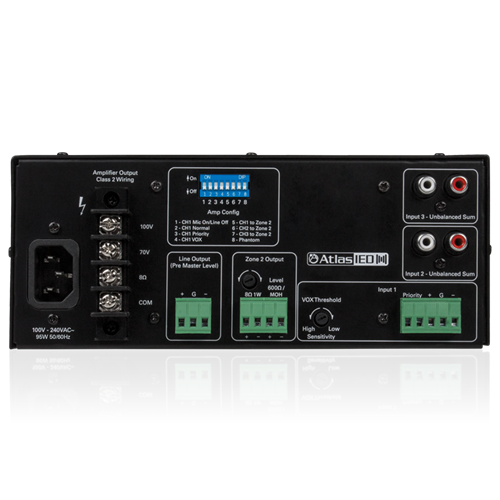

    • Balanced Mic/Line Input, Telco Input, Zone 2, and Dual RCA Stereo Music Inputs

    •  Priority Muting by VOX or External Switch

    • Bass and Treble Controls

    • Secondary Zone 2 Output 1 W & 600Ω / MOH

    • Universal AC Power Supply for Use 110V - 240V Systems

    • 70V, 100V, or 8Ω Amplifier Output

    • Signal Presence LED Indicators


    SPECIFICATIONS
    Frequency Response 50Hz - 20kHz
    Connector Type Phoenix and RCA
    Output Power 35 Watts
    Rack Units 2 high 1/2 wide
    Height 3.85" (98mm) Including Feet
    Width 8.25" (210mm)
    Depth 12.25" (311mm) Front of Knobs to Back Panel
    Shipping Weight 8 lbs 2 oz (3.7kg)
    Safety Listed 60065-ROHS 2006 Compliant
    Voltage Compatibility Universal

    SUPPORT FILES
    Owners Manual

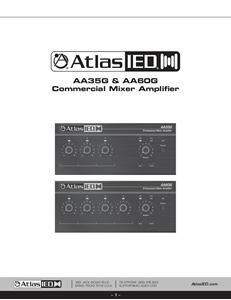

    AA35G/AA60G Owners Manual
    Data Sheet

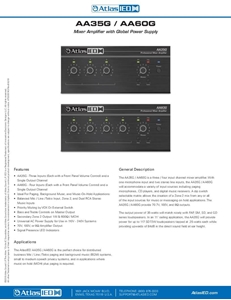

    AA35G/AA60G Datasheet
    Application Example
    Application Example
    Small BGM, Paging, and MOH Application
