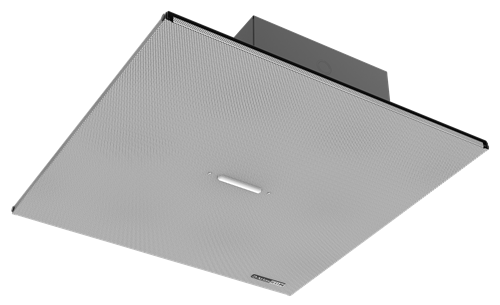

PoE+ Indoor 2' x 2' Suspended Ceiling Mount IP Speaker with Talkback Microphone and LED Flasher

IP-22SYSMF
  • Software License Required
  • BAA
  • CETL
  • CE
  • Network Ready
  • Flasher Included
  • PoE+
  • UKCA
  • FCC
  • G.711 Capable
  • G.722 Capable
  • GCK Optimized
  • One Cable Installation
    DESCRIPTION

    AtlasIED IP-22SYSMF 2’ x 2’ suspended ceiling mount IP speakers with talkback leverage the VoIP Communication solution to extend tele-presence with enhanced audio for those environments where network-wide communication is desired and that require large speakers with high output to overcome high ambient noise areas or large spaces.

    AtlasIED IP-22SYSMF registers as a communication endpoint directly within InformaCast, and Revolution Advanced Notification applications, supporting audio broadcast to enhance physical security while improving day-to-day communications through advanced alerting, bell schedules, pre-recorded, scheduled announcements, & intercom, while leveraging the WAN/LAN Network Architecture.

    When used within a Cisco Environment, these same IP speakers from AtlasIED can join Cisco’s Unified Survivable Remote Site Telephony (SRST) as a supported device within SRST endpoint Architecture. Cisco’s SRST provides remote location call-processing redundancy when access to the centralized Cisco Unified Communications Manager is interrupted because of a WAN outage. The ability of LAN communication between any combination of phones and speakers is particularly critical during an emergency (which may be the actual cause of the WAN outage).

    Where 3rd party notification applications are not required, the IP-22SYSMF speakers can register as SIP devices directly to a SIP server or VoIP Communications Manager for critical alerts /public address applications and two-way communication.

    Ideal for Corporate Applications, Education Institutions, Entertainment Complexes, Industrial Facilities, Government Buildings, Healthcare Facilities, Houses of Worship, Transportation Hubs - anywhere critical alerts / public address needs exist, and prefer using a single enterprise-class communications platform.

    Features

    IP-22SYSMF indoor speakers are fitted with an 8" (205mm) coaxial speaker that is optimized for voice intelligibility.

    The Grills for the IP-22SYSMF IP speakers are made of 18-gauge metal construction that provides security and durability in commercial applications. A perforated 22-gauge metal screen is provided over the speaker to maximize performance by allowing the optimum percentage of open area forward of the speaker. The baffle is finished in neutral white electrostatic powder coat.

    IP-22SYSMF includes an Omni directional subminiature, electret condenser microphone that is mounted behind the grille’s steel perforation material adjacent to the speaker to allow two-way communication and/or monitoring from the speaker location to any PC or phone handset.

    All AtlasIED IP speakers consist of a factory assembled speaker, grill, and PCB amp/control board that is securely mounted to the rear of the grill.

    The IP-22SYSMF features include auto-provisioning and auto-registration. This is an easy and timesaving way to configure our IP speakers on your Voice VLAN, similar to a VoIP handset. By sitting on the same VLAN, both VoIP phones and IP speakers share the same Quality of Service (QoS) so communications are always secure and guaranteed

    Includes GPI/O ports offer trigger for critical alert notification, or unified connectivity of third party systems.

    Enclosure and baffle are pre-assembled and includes mounting hardware

    For IPX firmware updates, please contact AtlasIED tech support at 1-800-876-3333 or support@atlasied.com

    Different systems require different solutions.  Our tech support team will quickly ensure that you receive the updates that will keep your unique system running smoothly!


    FEATURES
    • Network Features

    • Dynamic or Static IP Address
    • IEEE802.3 10/100Base-T Ethernet
    • IEEE 802.1q Tagging
    • IEEE 802.11AT Compliant
    • VoIP Standard Audio: G.711 u-law/a-law (64 kbit/s) or G.722 Wideband Audio (64 kbit/s)

    • Auto Registration: SLP for Singlewire Applications, DHCP Option 72 for Syn-Apps' Applications or  IEDNet+ for AtlasIED Applications

    • Static Registration: HTTP GUI for Static Configuration
    • Audio Features

    • Integrated Amplifier 15-Watt Total Power: Primary Speaker Output 8 ohm
    • Aux Audio Line-In Balanced (2.8Vpp 10K)
    • Aux Audio Line-Out Balanced (2.8Vpp 10K)
    • Additional Features
    • 2 General Purpose Inputs
    • 1 General Purpose Output (2A @ 30 VDC)
    • Phone/Night Loud Ringer
    • External Power Supply Option

    SPECIFICATIONS
    Speaker Type Coaxial
    Speaker Size 8" LF, 1" HF
    Frequency Response 86Hz - 15.5kHz
    Dispersion 105˚ (2kHz Octave Band, -6dB Points)
    Sensitivity 98dB SPL Average
    Power Rating 12-Watts Max (802.3AF) / 25-Watts Max (802.3AT)
    THD <0.2%
    Connector Type RJ-45
    Height 23.67" (601mm)
    Width 11.94" (303mm)
    Depth 4.89" (124mm)
    Shipping Weight 12.80 lbs (5.81 kgs)
    Safety Listed 62368-1, CSA C22.2 #62368-1, 2043, IEC 62368-1 CB Scheme and FCC;

    SUPPORT FILES

    For IPX firmware updates, please contact AtlasIED tech support at 1-800-876-3333 or support@atlasied.com

    Different systems require different solutions.  Our tech support team will quickly ensure that you receive the updates that will keep your unique system running smoothly!

    Discover App v1.3.2.0 IPX Firmware v1.6.4 139 MB
    IPX Series Firmware Version 1.6.4 Release Notes (1 page) 121 KB
    IPX Series Install Sheet (4 pages) 679 KB

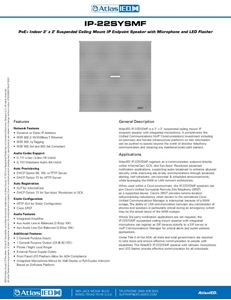

    IP-22SYSMF Datasheet (6 pages) 511 KB
    IPX Endpoint FAQ (5 pages) 138 KB
    IP-22SYSM CAD File 333 KB
    IPX Endpoint Quick Start Guide (1 page) 115 KB
    AtlasIED Discover Quick Start Guide (7 pages) 2 MB
    IP-22SYSM Revit Drawing 620 KB
    IP Speakers UK Declaration of Conformity (1 page) 89 KB
    Intertek Authorization to Mark (2 pages) 125 KB
    IP_CB-Cert (2 pages) 331 KB
    IP Speakers EC Declaration of Conformity (1 page) 68 KB
    IPX System Firmware Release 1.6.4 13 MB
    IPX Endpoint Firmware Update Guide (1 page) 141 KB
    IPX Product Overview (3 pages) 549 KB
