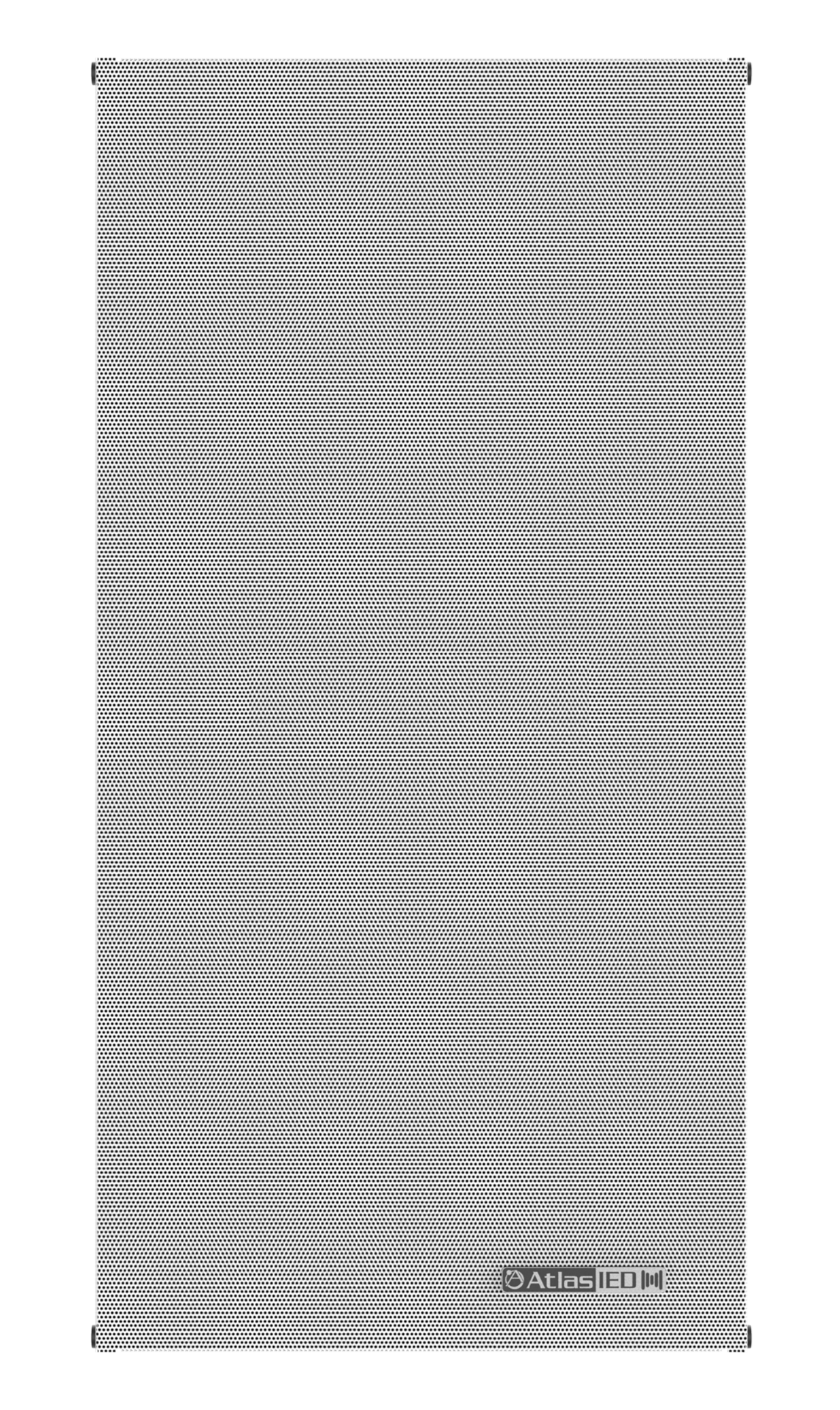

Indoor 1' x 2' 8Ω Suspended Ceiling Mount Extension Speaker

IP-12SYSP
  • UL Listed
  • CUL
    DESCRIPTION

    The IP-12SYSP is an installer friendly suspended ceiling mount passive speaker designed to be used with other powered IPX products. The IP-12SYSP is the perfect companion product to expand announcement and background music coverage in large spaces. With the same industrial design as the popular IP-12SYSM, mixed systems of passive and active speakers are now visually seamless.

    Specifically designed as an accessory to the existing IPX products the IP-12SYSP is designed as an 8Ω only speaker avoiding the cost and complexity of traditional 70/100V speakers.


    Features
    • Fully Perforated Grill
    • Direct Drive 8" Loudspeaker
    • Wide Dispersion Angle for Large Coverage Area
    • Durable Metal Backcan and Baffle
    • IP-12SYSM Matching Industrial Design
    • Metal Electrical Box for Cable Termination
    • UL1480 / UL2043 certified

    SPECIFICATIONS
    Speaker Type Indoor 1' x 2' Suspended Ceiling Mount Passive Speaker
    Frequency Response 110Hz - 6kHz
    Sensitivity 95dB SPL
    Maximum SPL (1M) 105dB SPL Calculated
    Dispersion 120˚ Horizontal x 130˚ Vertical
    Connector Type 22 GA. DQSK Bare Wire Leads
    Dimensions (HxWxD) 5.01" x 23.69" x 12.10" (127mm x 602mm x 307mm)
    Weight 9.25 lbs (4.20kg)
    Shipping Weight 13.4 lbs (6.09kg)
    Safety Listed UL1480 / UL2043 Certified
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    IP-12SYSP Install Sheet (2 pages) IP-12SYSP Install Sheet (2 pages)
    IP-12SYSP Data Sheet (8 pages) IP-12SYSP Data Sheet (8 pages)
