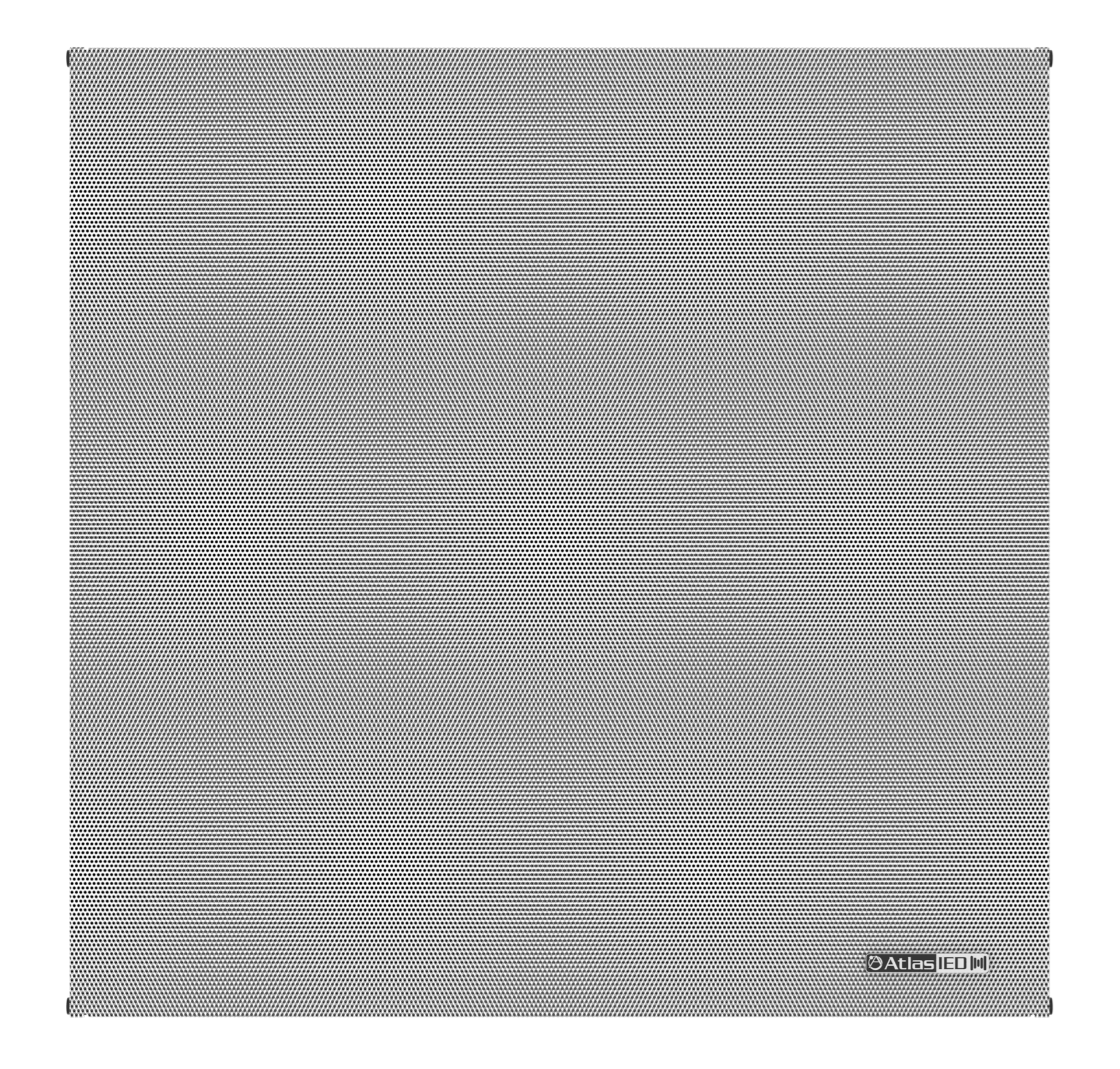

Indoor 2' x 2' 8Ω Suspended Ceiling Mount Extension Speaker

IP-22SYSP
  • UL Listed
  • CUL
    DESCRIPTION

    The IP-22SYSP is an installer friendly 2' x 2' suspended ceiling mount passive speaker designed to be used with other powered IPX products. The IP-22SYSP is the perfect companion product to expand announcement and background music coverage in large spaces. With the same industrial design as the popular IP-22SYSM, mixed systems of passive and active speakers are now visually seamless.

    Specifically designed as an accessory to the existing IPX products the IP-22SYSP is designed as an 8Ω only speaker avoiding the cost and complexity of traditional 70/100V speakers.

    The IP-22SYSP is an accessory product to the PoE+ powered IPX products that can be used to increase audio coverage. By using the secondary speaker output of an active IPX the IP-22SYSP acts as a direct extension of the IPX. Beyond IPX the IP-22SYSP can be used in applications where low impedance (8Ω) speakers are needed and the complexity of 70/100V wiring is unwanted.

    The IP-22SYSP is a great option for but is not limited to school, corporate, governmental, house of worship, and light commercial installations.


    Features
    • Fully Perforated Grill
    • Direct Drive 8" Loudspeaker
    • Wide Dispersion Angle for Large Coverage Area
    • Durable Metal Backcan and Baffle
    • IP-22SYSM Matching Industrial Design
    • Metal Electrical Box for Cable Termination
    • UL1480 / UL2043 certified

    SPECIFICATIONS
    Speaker Type Indoor 2' x 2' Suspended Ceiling Mount Passive Speaker
    Frequency Response 110Hz - 6kHz
    Sensitivity 95dB SPL
    Maximum SPL (1M) 105dB SPL Calculated
    Dispersion 120˚ Horizontal x 100˚ Vertical
    Connector Type 22 GA. DQSK Bare Wire Leads
    Dimensions (HxWxD) 5.01" x 23.69" x 24.10" (127mm x 602mm x 612mm)
    Weight 14.15 lbs (6.42kg)
    Shipping Weight 21.65 lbs (9.82kg)
    Safety Listed UL1480 / UL2043 Certified
    Warranty Period 60 months from date of purchase
