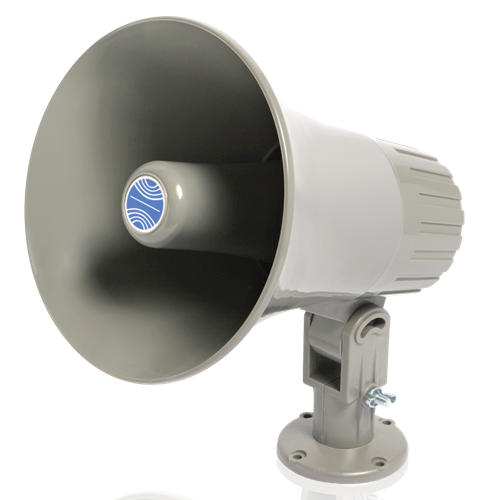

Re-Entrant Horn Speaker with 25V/70.7V-15W Transformer

GA-15T
Availability: Call for Availability
Your Price:
$100.99
  • 25V/70V Operation
  • IP56
    DESCRIPTION

    The GA-15T speaker is a utility horn perfectly suited for voice paging and music transmission. Double re-entrant horn construction optimizes speaker output to penetrate ambient sound levels. This 15-watt model incorporates a compression driver with ceramic magnet and includes a combination 25/70.7-volt line transformer with multi-position knob switch for selecting power taps. Unit is also equipped with wiring for an 8-ohm connection to facilitate installation when a transformer is not required.

    GA-15T features a round, high-impact plastic horn and will withstand outdoor installation in high-humidity environments. Adjustable surface mounting bracket provides multiple (vertical & horizontal) positioning. Each assembly is supplied with 21-gauge 18" color coded wire leads for matching polarity and speaker connection.

    Entire assembly is gray with silver colored hardware.

    Learn more about the importance of protecting paging horns from low frequency damage and view the TSD-HF11 unit designed specifically to protect horns from low frequency damage.


    Features
    • Dual Voltage, Knob-Adjustable Impedance Selection for 25/70.7V Line Connection
    • Multi-Function, Re-Entrant Horn Loudspeakers Offer Efficient Sound Penetration and Dispersion for Paging, Music and Intercom Use
    • Sturdy Construction for Long-Term Indoor and Outdoor Use

    SPECIFICATIONS
    Frequency Response 500Hz - 3kHz
    Sensitivity 103dB
    Power Taps .5, 1, 2, 4, 8, 15W @ 70.7V
    Dispersion 80°
    Depth 9 3/8" (23.8125 cm)
    Diameter 7 1/2" (19.05 cm)
    Shipping Weight 3.63 lbs (1.64 kgs)
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    GA-15T GA-15T

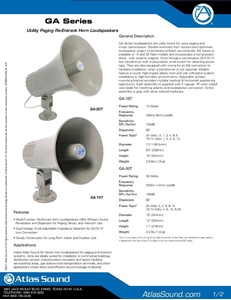

    GA Series Datasheet (2 pages) GA Series Datasheet (2 pages)
