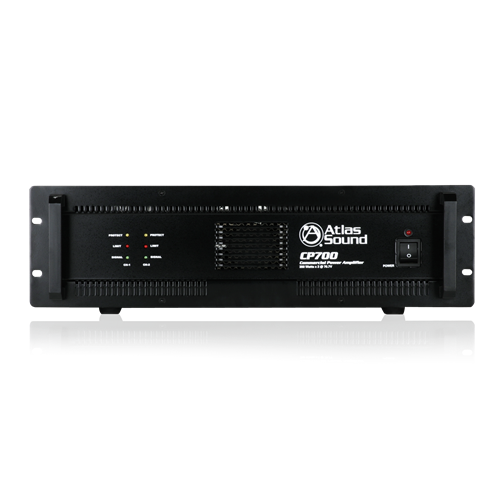

Dual-Channel, 700-Watt Commercial Power Amplifier

CP700
  • UL Listed
  • CE
  • ETL
  • 8Ω Operation
  • 70V / 100V Operation

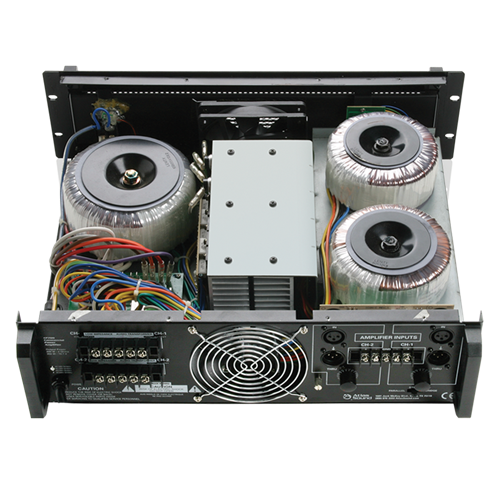

    A professional grade A/B type audio power amplifier specifically designed for demanding contractor applications, the CP700 features esoteric grade toroidal power supply and output transformers. These transformers were chosen for their outstanding reliability as well as extended frequency response (-3dB @ 30Hz - 16kHz output through transformer) Now you can have the peace of mind that systems specified with the CP700 will have true transformer output isolation, a feature that previously may have not been affordable due to the cost of quality external transformers.

    CP700's two independent channels ensure maximum channel separation and ultra low distortion figures while providing years of faithful service.

    Whether your application is a large distributed constant voltage sound system or a high SPL sound reinforcement system, the AtlasIED CP700 is the perfect answer for high power/low cost amplification needs.

    FEATURES

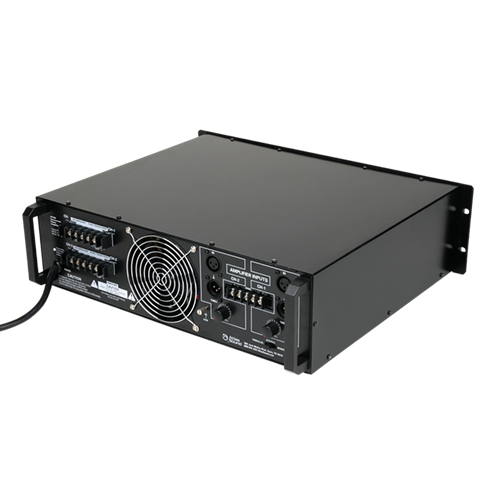

    25V, 70.7V, 100V, and Direct Coupled (2,4, and 8 Ohm) Outputs Mounted on Barrier Strips with Covers for Safety
    Balanced Inputs on Barrier Strip and XLR Connectors
    Dual-Speed, High Efficiency Fan Cooling
    Loop Through Feature on Male XLRs, One per Channel Input
    Power-Up Muting
    Stepped Attenuators Mounted on the Rear for Security
    Toroidal Output Transformers Provide Full Electrical Isolation and Meet Worldwide Safety Agency Approval
    UL Listed - UL60065
    SPECIFICATIONS
    Frequency Response 30Hz - 50kHz
    Channels Two
    Connector Type Terminal Block & XLR
    Finish Black
    Number of Fans 1 - Variable Speed
    Output Power 350 Watts/Channel @ 70.7V, 700 Watts 140V/200V Bridge Mono, 400 Watts/Channel @ 4Ω
    Rack Units 3 RU
    Height 5 3/16" (13 cm)
    Voltage Compatibility 110V - 120V
    SUPPORT FILES
    Owners Manual
    CP400-CP700_Owners_Manual (16 pages)
    Owners Manual
    CP400-CP700 Owners Manual (16 pages)
    Data Sheet

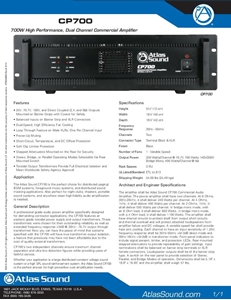

    ATS004890 CP700 Datasheet (1 page)
    CAD Drawing
    CP700_Panel
