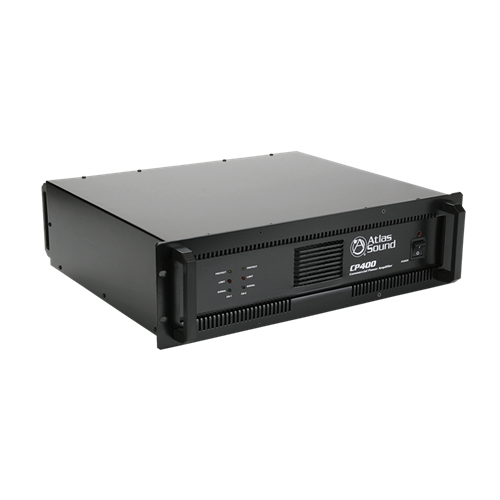

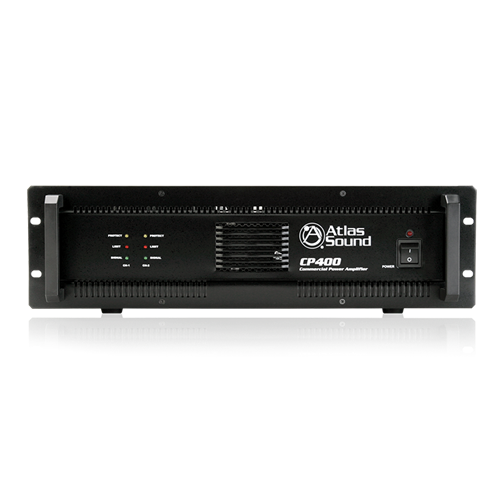

Dual-Channel, 400-Watt Commercial Power Amplifier

CP400
  • UL Listed
  • CE
  • CETL
  • CUL
  • ETL
  • 8Ω Operation
  • 70V / 100V Operation

    A professional grade audio power amplifier specifically designed for demanding contractor applications, the CP400 features esoteric grade toroidal power supply and output transformers. These transformers were chosen for their outstanding reliability as well as extended frequency response (-3dB @ 30Hz - 16kHz via transformer output) Now you can have the peace of mind that systems specified with the CP400 will have true transformer output isolation, a feature that previously may have not been affordable due to the cost of quality external transformers.

    CP400's two independent channels ensure maximum channel separation and ultra low distortion figures while providing years of faithful service.

    Whether your application is a large distributed constant voltage sound system or a high SPL sound reinforcement system, the AtlasIED CP400 is the perfect answer for high power/low cost amplification needs.

    Features

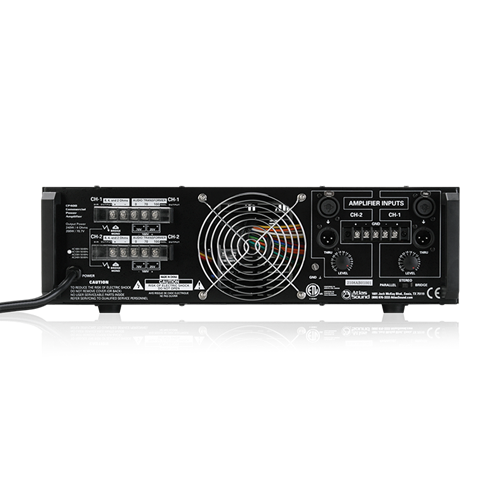

    25V, 70.7V, 100V, and Direct Coupled (2,4, and 8 Ohm) Outputs Mounted on Barrier Strips with Covers for Safety
    Balanced Inputs on Barrier Strip and XLR Connectors
    Dual-Speed, High Efficiency Fan Cooling
    Loop Through Feature on Male XLRs, One per Channel Input
    Power-Up Muting
    Short-Circuit, Temperature, and DC Offset Protection
    Soft Clip Limiter Protection
    Stepped Attenuators Mounted on the Rear for Security
    Stereo, Bridge, or Parallel Operating Modes Selectable via Rear Mounted Switch
    Toroidal Output Transformers Provide Full Electrical Isolation and Meet Worldwide Safety Agency Approval
    UL Listed - UL60065
    Tech Specs
    8Ω Stereo 160 Watts x2
    4Ω Stereo 240 Watts x2
    2Ω Stereo 270 Watts x2
    8Ω Bridged Mono 500 Watts
    4Ω Bridged Mono 600 Watts
    70.7V Stereo 200 Watts x2
    25V Stereo 175 Watts x2
    140V/200V Bridged Mono 400 Watts
    Channels Two
    Frequency Response 30Hz - 50kHz (±3dB)
    Connector Type Terminal Block & XLR
    Finish Black
    Number of Fans 1 - Variable Speed
    Height 5 3/16" (13 cm)
    Voltage Compatibility 110V - 120V
    Support Files

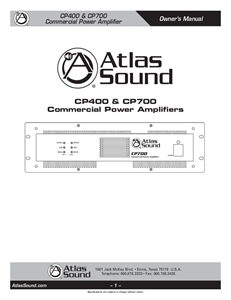

    Owners Manual CP400-CP700_Owners_Manual (16 pages) View | Download

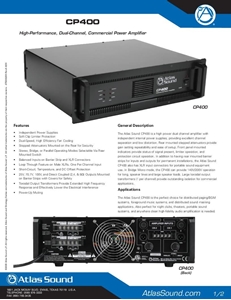

    Data Sheet CP400 Data Sheet (2 pages) View | Download
