Horn Speaker 15W 8Ω

AP-15
Availability: In stock
Your Price:
$139.99
  • IP34
  • 4OHM8OHMCAPABLE
    DESCRIPTION

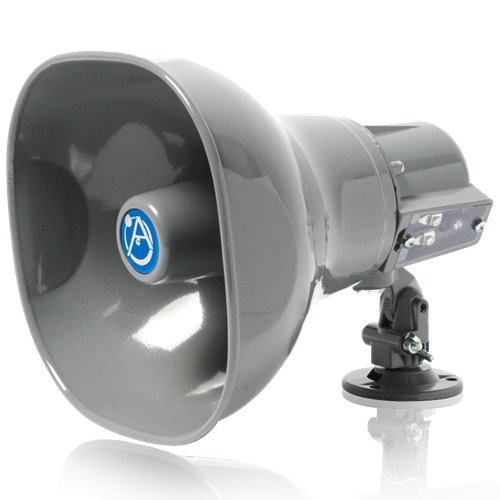

    The 8-ohm Model AP-15 is a double re-entrant speakers which deliver 15-watts of continuous power handling, superior intelligibility and unparalleled efficiency.

    The AP-15 Series operates within a nominal frequency response range of 400-14,000 Hz and offers a sensitivity of 120dB at rated power to provide clear voice and signal communication.

    The trademarked squared-bell design signifies AtlasIED quality and reliability. The Omni-Purpose® mounting bracket (supplied on all models) achieves precise positioning in the vertical and horizontal planes with a single adjustment and includes provisions for speaker installation on conventional surfaces as well as for strapmounting on I-beams or pillars.

    AP Series speakers are U.S. made to assure superior service reliability. Weather-resistant construction is metal and matching ABS plastic with metal components finished in grey epoxy.



    Learn more about the importance of protecting paging horns from low frequency damage and view the TSD-HF11 unit designed specifically to protect horns from low frequency damage.

    Conduit/cable adapter plate also available.


    Features
    • Environment Resistant for Outdoor and Indoor Use
    • Grey Finish
    • High-Efficiency Driver with Proven Performance Reliability
    • Omni-Purpose™ Bracket for Precise Positioning
    • Superior Intelligibility for Voice and Tone Signaling
    • World Recognized for Quality and Dependability

    SPECIFICATIONS
    Frequency Response 400Hz - 14kHz
    Sensitivity 106dB
    Dispersion 70°
    Power Rating 15 Watts
    Operating Temperature Range -40 to 70C
    Height 8 3/4" (22.22 cm)
    Width 7 7/8" (20.00 cm)
    Depth 9 5/16" (23.66 cm)
    Shipping Weight 4.00 lbs (1.81 kgs)
    Operating Temperature Range -40C to 70C
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    AP-15 Revit Drawing AP-15 Revit Drawing

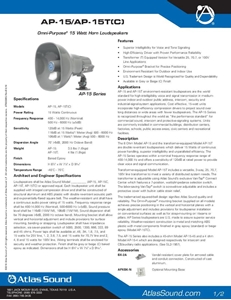

    AP-15 Series Datasheet (2 pages) AP-15 Series Datasheet (2 pages)
    AP-15 Series Datasheets (2 pages) AP-15 Series Datasheets (2 pages)
