Dual Direction Twin Horn Speaker with 30-Watt 25V/70V/100V Transformer

Availability: In stock
Your Price:
  • IP55
  • TAA
  • 25V/70V Operation
  • 70V100VCAPABLE

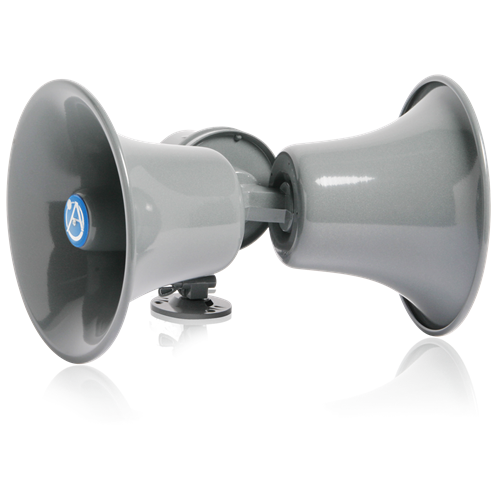

    Model APT-34AT Surface-mounting speaker with bi-directional sound dispersion provides concentrated coverage in corridors, stairwells and walkways in commercial, institutional and industrial applications.

    Twin horn assembly delivers 30 watts of power with a single compression driver (included) and provides 100° sound dispersion in each direction.

    Unit includes the Omni-Purpose® bracket and provisions for surface/strap mounting. Finished in grey baked epoxy.

    Learn more about the importance of protecting paging horns from low frequency damage and view the TSD-HF11 unit designed specifically to protect horns from low frequency damage.

    • Includes 30 Watt High Efficiency Driver
    • Omni-Purpose Mounting Bracket for Positioning Flexibility on Vertical or Horizontal Planes
    • Twin Reflex Projectors Provide High Efficiency Bi-Directional Sound Dispersion
    • Weather Resistant Construction for Indoor or Outdoor Installations

    Frequency Response 400Hz - 12.5kHz
    Sensitivity 101dB
    Power Taps 2, 3.8, 7.5, 15, 30W @ 70.7V
    Dispersion 175°
    Depth 16 1/2" (41.91 cm)
    Diameter 9 1/4" (23.50 cm)
    Shipping Weight 9.00 lbs (4.08 kgs)
    Operating Temperature Range -40C to 70C
    Warranty Period 60 months from date of purchase

    APT-34AT DWG Drawing APT-34AT DWG Drawing

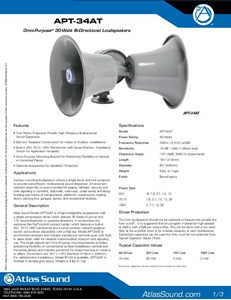

    APT-34AT Datasheet (3 pages) APT-34AT Datasheet (3 pages)
