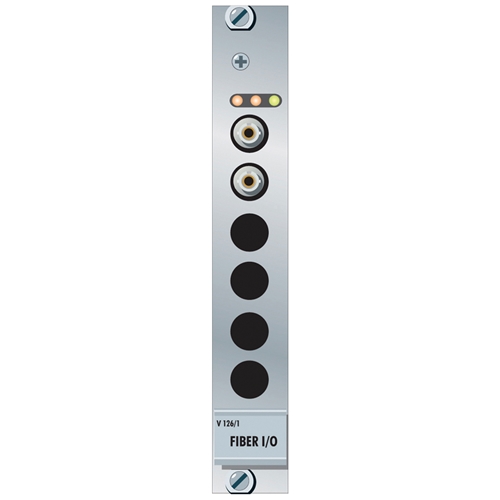

Fiber I/O Card 64-CH

V126/1
    DESCRIPTION

    The fiber I/O plug-in card V\126/1 is an optical input and output card for all fiber optical connections within a VADIS system. The card has 1 transceiver for the reception/transmission of 64 mono channels per fiber optic connection. Each of these channels can be routed to any of the 256 VADIS frame channels and then can be redistributed to any other fiber optical connections.

    Each fiber optic channel can carry audio signals with 24 audio bits, 6 information bits and 2 bits for internal, serial information.


    FEATURES
    • Provides 64 I/O Audio Channels
    • Designed for Use in the V212C-HDD and V888 VADIS Frames

    SPECIFICATIONS
    Number of Audio Channels 64
    Connector Type ST
    Word length/channel 32 Bit (Max. 24 Audio Bits, 8 Bit Additional Information)
    Data Rate 125 Mbit/s Max. (NRZI Encoding)
    Fiber Multimode, 50/125 µm, 62.5/125 µm
    Current Consumption 133 mA typ. @ 64 Channels
    Supply Voltage 3.3 V ± 5%
