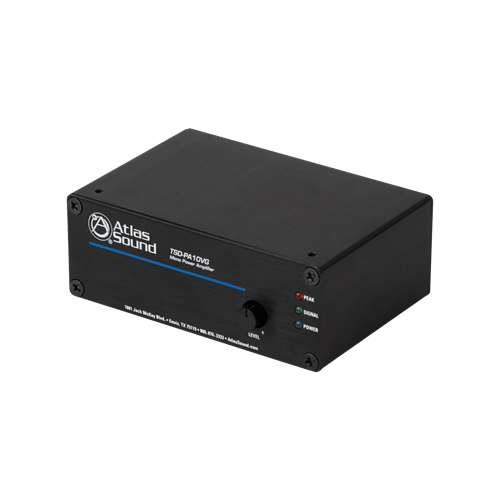

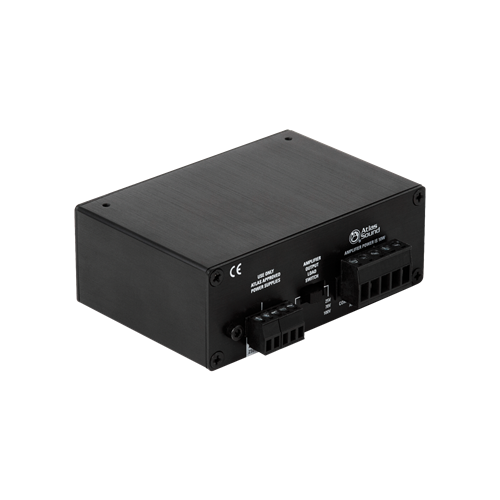

10W Mono 4Ω/25V/70.7V/100V Power Amplifier

TSD-PA10VG
Availability: In stock
Your price (USD): $165.99
  • Power Supply Sold Separately
  • CE
  • 70V / 100V Operation
    DESCRIPTION

    The TSD-PA10VG is a cost effective mono amplifier for 4Ω and distributed constant voltage speaker systems. Applications such as house of worship cry rooms, restrooms, and foyers will benefit from this compact reliable amplifier. The TSD-PA10VG is also a good alternative for small projector systems as it can be used with as many as (8) 25/70/100V ceiling speakers (tapped at 1W each), plus the extremely small footprint allows for easy mounting.

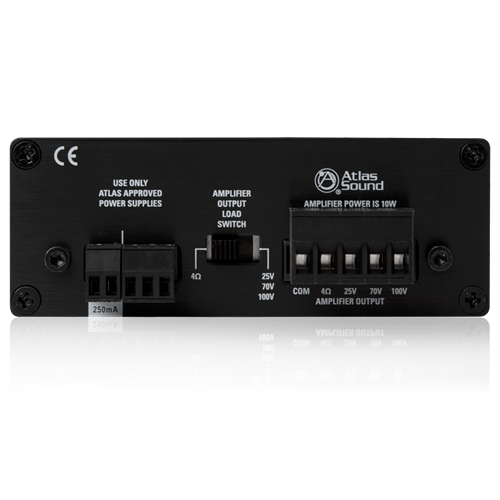

    For sound masking applications the TSD‑PA10VG has the capacity to drive up to 17 masking speakers tapped at .5W each on a 70.7V line. Output is gain controlled from a potentiometer on the front panel with removable knob to facilitate installation of a tamper resistant cover (included).

    Unit requires an external Power Supply that is sold separately for proper function, multiple TSDs can be powered with one power supply based on current requirements.  This unit has a power requirement of 500mA so you must use the TSD-PS24V500MA or TSD24V2500MA power supply. For multiple TSD applications use the TSD Power Calculator to determine the proper power supply needed.


    FEATURES
    • 4Ω/25V/70.7V/100V Output
    • One (1) Balanced Input
    • Removable Level Control with Set-It-And-Forget-It Security Cover
    • Input Signal and Peak Indicator LEDs
    • Cable Management System
    • Removable Phoenix Style I/O Connectors
    • Energy Efficient
    • Compact Chassis Design
    • Power Supply Sold Separately

    SPECIFICATIONS
    Frequency Response 40Hz - 20kHz
    Power Output 10W @ 4Ω, 5W @ 8Ω, 10W @ 25V/70V/100V Loads
    Line Input Level 500mV (-6dBV) Balanced
    THD .5% @ 1kHz
    24VDC Power Requirements 500mA
    Height 1.5" (3.81 cm)
    Width 4" (10.16 cm)
    Depth 2.75" (6.99 cm)
    Voltage Compatibility 24V

    SUPPORT FILES
    Owners Manual
    ATS004053C TSD-PA10VG Owners Manual
    Data Sheet
    ATS004064C TSD-PA10VG Data Sheet
    CAD Drawing
    Panel drawings for all TSDs
