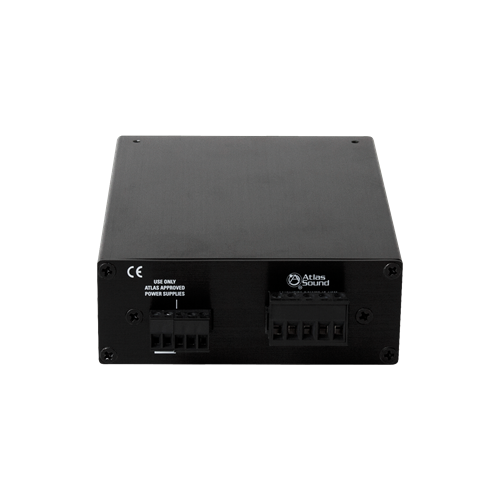

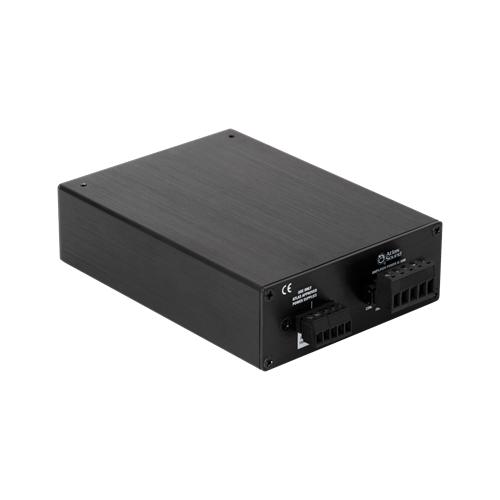

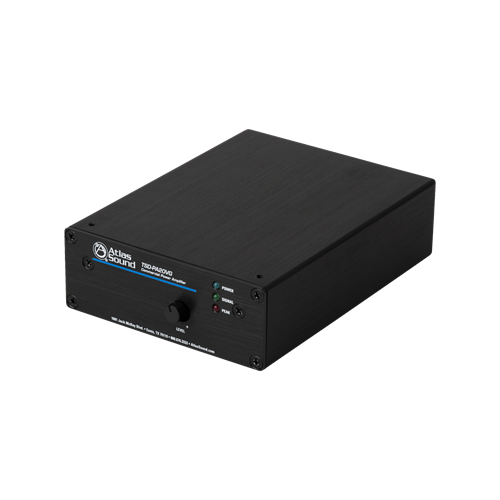

20W Mono 4Ω/25V/70.7V/100V Power Amplifier

TSD-PA20VG
Availability: In stock
Your price (USD): $251.99
  • Power Supply Sold Separately
  • CE
  • 70V / 100V Operation
    DESCRIPTION

    The TSD-PA20VG is a cost effective mono amplifier for 4Ω and distributed constant voltage speaker systems.  Applications include hallways and classrooms. The TSD-PA20VG is also a cost effective alternative for small projector systems as it can be used with as many as (16) 25/70/100V ceiling speakers (tapped at 1W each), plus the extremely small footprint allows for easy mounting.

    For sound masking applications the TSD‑PA20VG has the capacity to drive up to 34 masking speakers tapped at .5W each on a 70.7V line. Output is gain controlled from a potentiometer on the front panel with removable knob.

    Unit requires Power Supply that is sold separately for proper function, multiple TSDs can be powered with one power supply based on current requirements. You must use the TSD24V2500MA power supply. For multiple TSD applications use the TSD Power Calculator to determine the proper power supply needed.


    FEATURES
    • 4Ω/25V/70.7V/100V Output
    • One (1) Balanced Input
    • Removable Level Control with Set-It-And-Forget-It Security Cover
    • Input Signal and Peak Indicator LEDs
    • Cable Management System
    • Removable Phoenix Style I/O Connectors
    • Energy Efficient
    • Compact Chassis Design
    • Power Supply Sold Separately

    SPECIFICATIONS
    Frequency Response 40Hz - 20kHz
    Power Output 20W @ 4Ω, 10W @ 8Ω, 20W @ 25V/70V/100V Loads
    Line Input Level 500mV (-6dBV) Balanced
    Power Requirement 490mA
    Idle Current 50mA
    Height 1.5" (3.81 cm)
    Width 4" (10.16 cm)
    Depth 5.2" (13.2 cm)
    Voltage Compatibility 24V

    SUPPORT FILES
    Owners Manual

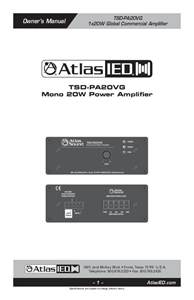

    ATS004054D TSD-PA20VG Owners Manual
    Data Sheet

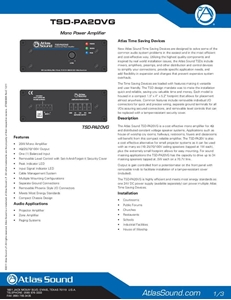

    ATS003825_RevC_TSD-PA20VG_Data_Sheet
    CAD Drawing
    TSD-PA20VG
    CAD Drawing
    Panel drawings for all TSDs
