Variable DC Power Distribution

TSD-DCPDV
Availability: In stock
Your price (USD): $94.99
  • Power Supply Sold Separately
  • CE

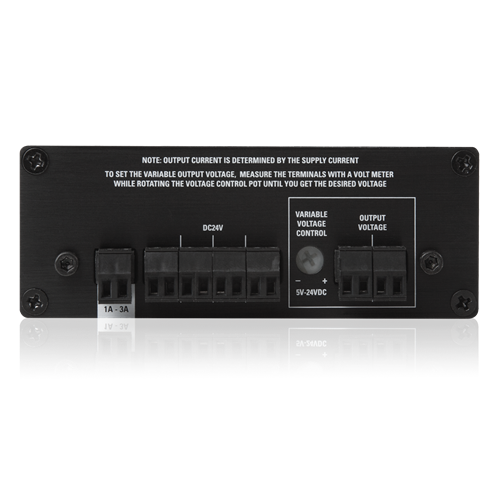

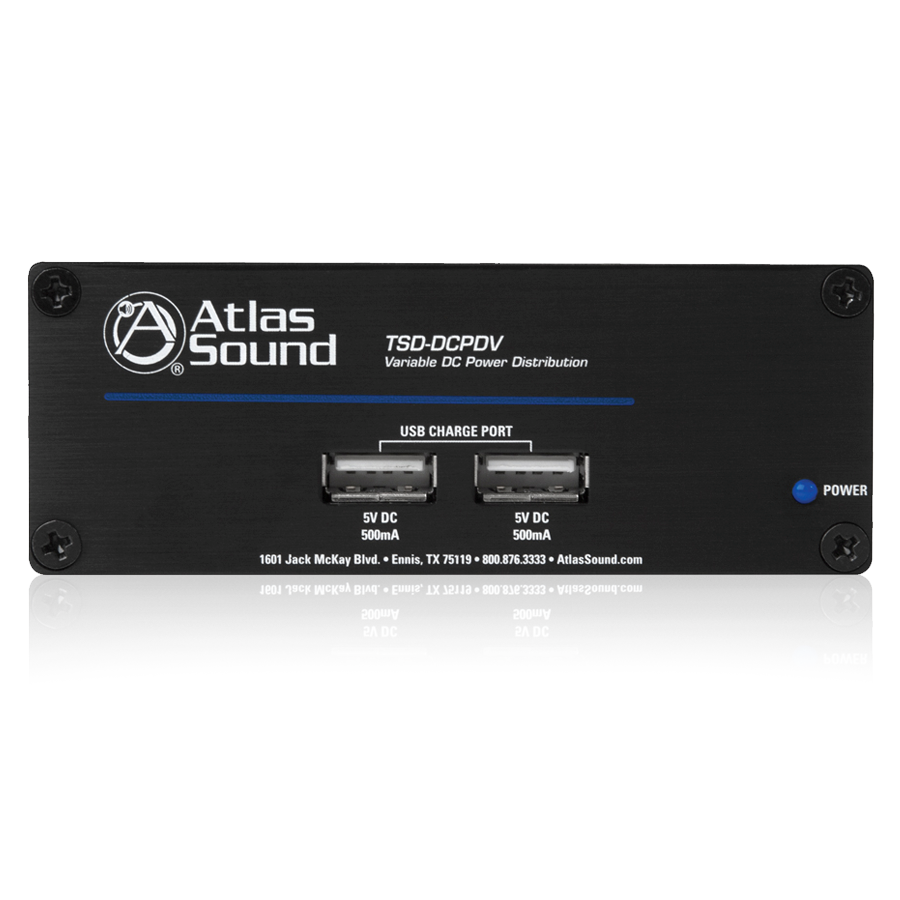

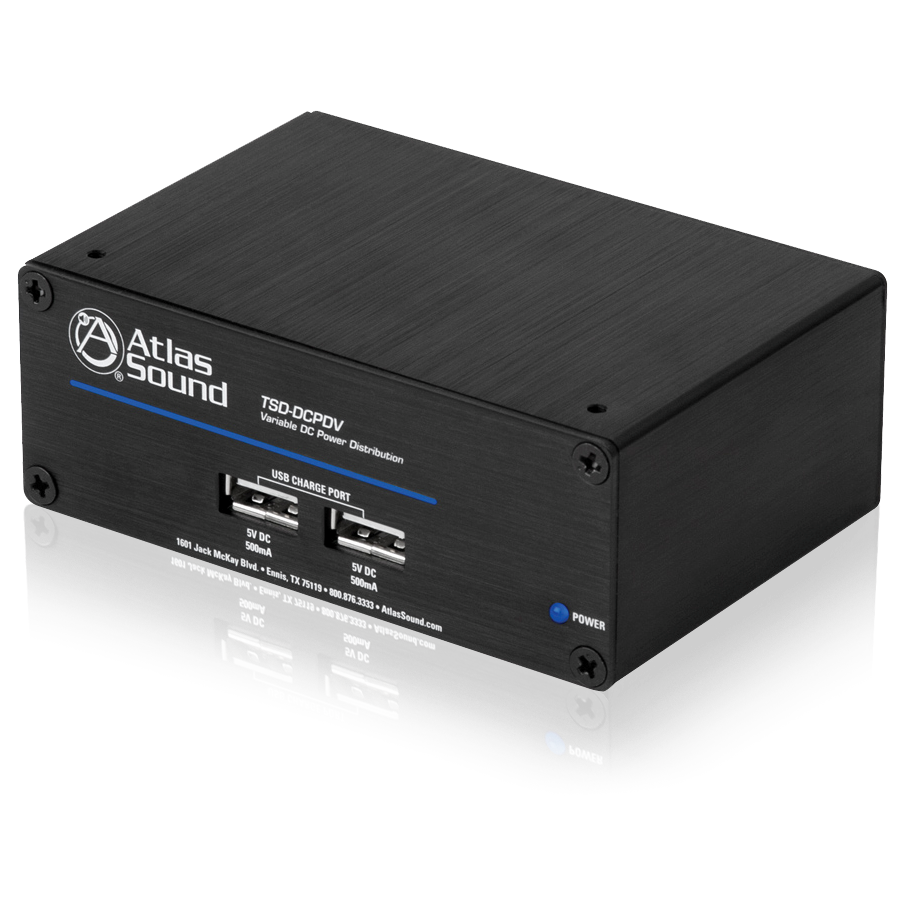

    The TSD-DCPDV is designed to distribute power to TSD devices or other equipment requiring DC power and is also ideal for use with wireless microphones that typically require 12-18VDC PSUs. Rear panel includes one 9-24V input for a user selectable power supply up to 2500mA, four fixed 24V outputs and two 5-24V variable outputs. Voltage for variable outputs is adjusted from a secure trim pot. In addition, two front panel USB ports are available for charging other devices or for USB style rack lighting.

    Unit requires power supply that is sold separately for proper function, multiple TSDs can be powered with one power supply based on current requirements. This unit has a power requirement of 20mA but the power requirements of attached TSDs must be accounted for when selecting the proper power supply. For multiple TSD applications use the TSD Power Calculator to determine the proper power supply needed.

    FEATURES
    Power Distribution for Multiple TSD's From a Single Power Supply
    1 in 6 Out Configuration
    Four (4) Independent 24V Outputs
    Two (2) 5V to 24V Variable Outputs
    Two (2) 5V DC USB Charge Ports
    DC Filtering and Isolation Per Channel
    Output Voltage - Variable & Fixed Ports
    Output Current: Power Supply Current Selection is Dependent on the Number of Devices Connected to the DCPDV and Their Accumulative Current Consumption. Use the TSD Power Calculator for Total Current Required.
    Separate Ground Connections
    Energy Efficient
    SPECIFICATIONS
    DC Voltage Input 1A-3A, 24V DC, 3A Max
    DC Voltage Output Fixed USB 5V DC, 500mA Each Power Supply and Load
    DC Voltage Output Fixed USB 24V DC, Power Supply Current Selection is Dependent on the Number of Devices Connected to the DCPD and Their Accumulative Current Consumption. Use the TSD Power Calculator for Total Current Required.
    DC Voltage Variable Qty 2, Ports 1 Adjustable Voltage, Variable DC Output 5V - 24VDC
    Height 1.5" (3.81 cm)
    Width 4" (10.16 cm)
    Depth 2.5" (6.35 cm)
    Weight 6oz., .165kg
    SUPPORT FILES
    Owners Manual
    ATS003939B TSD-DCPDV Owners Manual (12 pages)
    CAD Drawing
    TSD Series CAD Drawing
