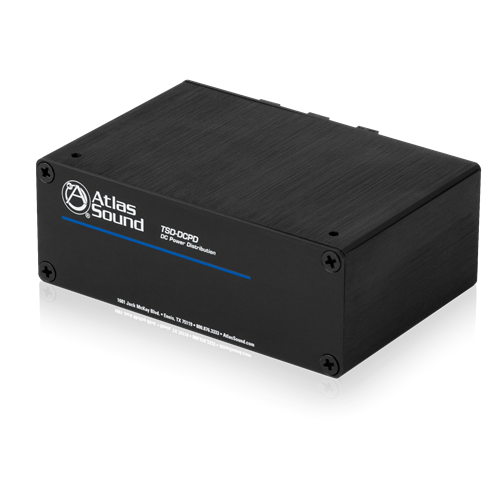

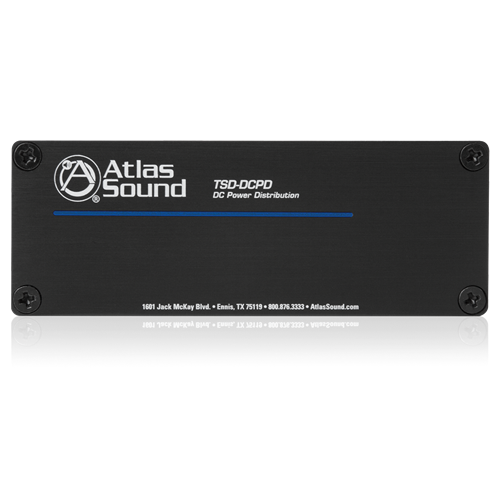

DC Power Distribution

TSD-DCPD
  • Power Supply Sold Separately
  • CE

    The TSD-DCPD is designed to distribute power to TSD devices or other equipment requiring DC power without the need for separate power supplies. One 9-24V PSU input is distributed to 6 independent, isolated outputs.  The compact TSD-DCPD will help remove rack clutter and free up power strip space.

    Unit requires Power Supply that is sold separately for proper function, multiple TSDs can be powered with one power supply based on current requirements. This unit has a power requirement of 20mA but the power requirements of attached TSDs must be accounted for when selecting the proper power supply. For multiple TSD applications use the TSD Power Calculator to determine the proper power supply needed.

    FEATURES
    Power Distribution for Up to 6 TSD's From a Single PSU

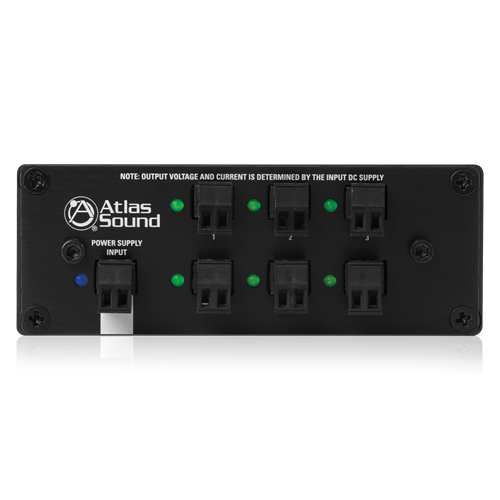

    1 in 6 Out Configuration
    Six (6) Independent 9-24V Outputs
    DC Filtering and Isolation Per Channel
    9 - 24VDC Input Voltage (Power Supply Current Selection is Dependent on the Number of Devices Connected to the DCPD and Their Accumulative Current Consumption. Use the TSD Power Calculator for Total Current Required)
    Energy Efficient
    SPECIFICATIONS
    DC Voltage Input 9V - 24V DC, 5A Max
    Output Voltage 9V - 24V DC, Dependent on the DC Input Votage
    Output Current Power Supply Selection is Dependent on the Number of Devices Connected to the DCPD and Their Accumulative Current Consumption. Use the TSD Power Calculator for Total Current Required.
    Height 1.5" (3.81 cm)
    Width 4" (10.16 cm)
    Depth 2.5" (6.35 cm)
    Weight 6oz., .165kg
    SUPPORT FILES

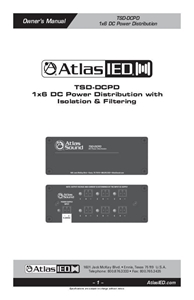

    Owners Manual ATS003938B TSD-DCPD Owners Manual (12 pages) View | Download

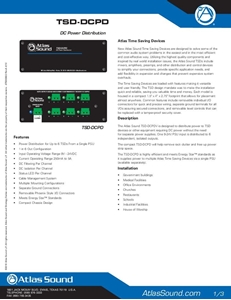

    Data Sheet ATS003822_TSD-DCPD_Data_Sheet (3 pages) View | Download
    CAD Drawing TSD Series CAD Drawing Download
