2-Channel Balance Line Input to Dante® Interface

TSD-DAC2I
Availability: In stock
Your price (USD): $433.99
  • Dante Network Enabled
  • PoE Enabled
    DESCRIPTION

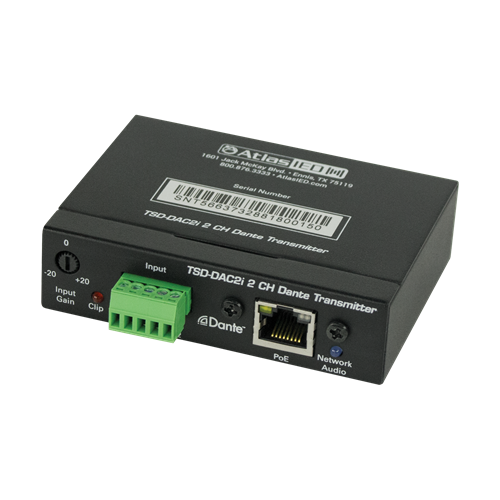

    The AtlasIED TSD-DAC2i is a PoE 2-channel analog pre-amplifier that converts analog audio signals into Dante® digital audio. The TSD-DAC2i can be used for any Analog to Dante® digital audio end point but is ideally suited to be used with the AtlasIED WTSD wall mixer series. Once converted into Dante® digital audio, the audio can be transmitted over IP networks and routed in the Dante® Controller software. The TSD-DAC2i Dante® transmitter I/O module features two analog balanced line inputs with a variable gain to operate from line to mic level. An Input Clip indicator illuminates when clipping signals are present. There are indicators for Power and Network connection. The TSD-DAC2i requires no external power supply, it is powered via a network PoE port or a PoE cable power injector.


    FEATURES
    • Dante® digital audio platform

    • 2 CH Balanced Analog Line Input

    • Wide range gain adjust -20dB to +20dB

    • AUX, Line & Mic Levels

    • Input Clip Indicator

    • PoE Powered

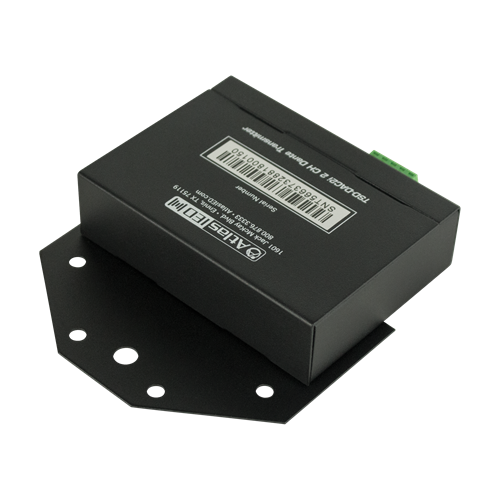

    • Mounting Plate

    • Incorporates with WTSD Wall Mixers


    SPECIFICATIONS
    Network Interface Single RJ-45
    Input impedance 15kΩ (Analog)
    Frequency Response 20Hz - 20kHz (+/- 2dB)
    THD .06% @ 1kHz
    Signal to Noise Ratio 95dB @ 1kHz (A Weighted)
    Dynamic Range 100dB (-60dBFS A Weighted)
    Power Source PoE (52V 36mA)
    Power Consumption 1.9W
    Height 1" (25mm)
    Width 3.6" (93mm)
    Depth 3.17" (81mm)
    Weight .44 lbs (0.20kg)
    Shipping Weight .7 lbs (0.32kg)

    SUPPORT FILES
    Owners Manual

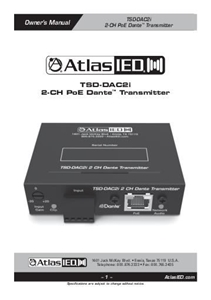

    ATS005813B_TSD-DAC2i_Owners_Manual
    Data Sheet

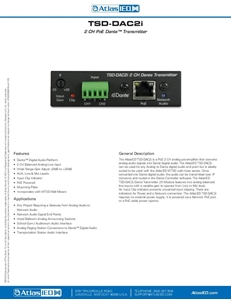

    ATS005999 TSD-DAC2i Data Sheet

    Application Examples
    Athletic Field Press Box Sound System
    High School Multi-Purpose Room Sound System
    Middle School Multi-Purpose Room Sound System
    Banquet Room Sound System
