Indoor/Outdoor Analog Wall 4x1 Mic/Line Mixer W/Optional Dante® Audio Network Interface

Availability: In stock
Your Price:
  • Dante enabled
  • Power Pack Included

    Model WTSD-MIX41K is a 4x1 Mic/line Analog Mixer that features four balanced microphone/line inputs and a balanced line output. Selection between mic or line level is done via dip switch on the rear panel. The high gain mic inputs incorporate user enabled phantom power for condenser microphones and a 120Hz low cut filter to eliminate unwanted low frequency interferences. A global mute function can be triggered via local switch. Separate level controls for each input provide control for the audio mix needed. Input peak and signal indicators give visual reference to set the gain structure for maximum performance.  The WTSD-PWBOB comes with each unit and features a balanced audio output with signal, mute, system priority and power LEDs and 12V DC logic output for remote system muting or power sequencing.

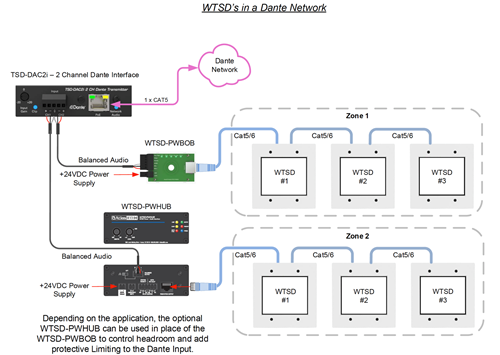

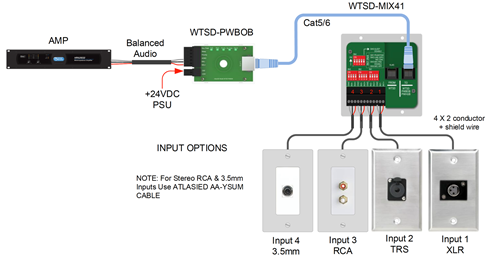

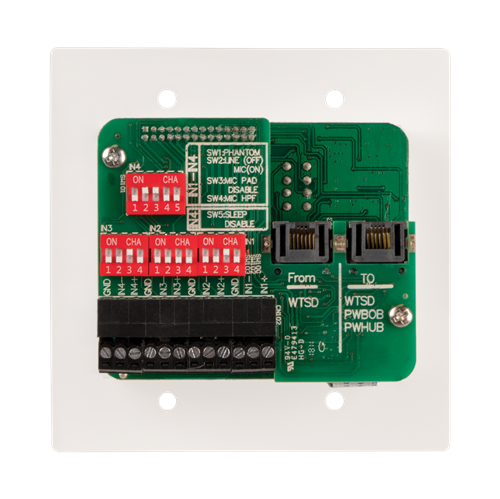

    Mic/line inputs are via a Phoenix type connector on the rear of the WTSD. The WTSD-MIX41K can be converted into Dante® Digital Network audio when interfaced with the optional AtlasIED TSD-DAC2i converter. The WTSD-MIX41K is designed to be used in conjunction with the AtlasIED WTSD-XLR4 input plate or with other XLR wall plates. The WTSD-XLR4 also can be used with the WTSD-COVER accessory for outdoor environments that require security.

    • Indoor/Outdoor Use

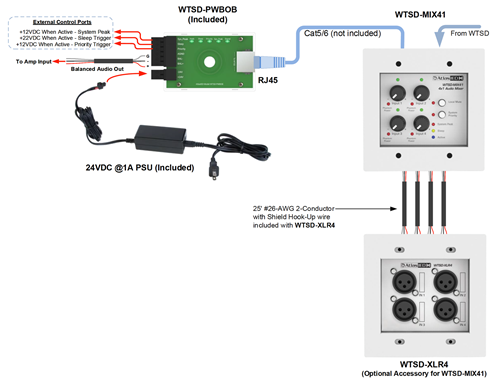

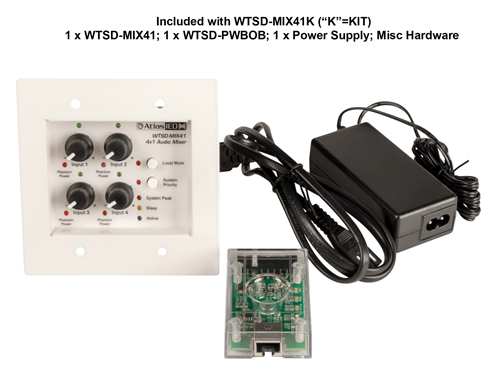

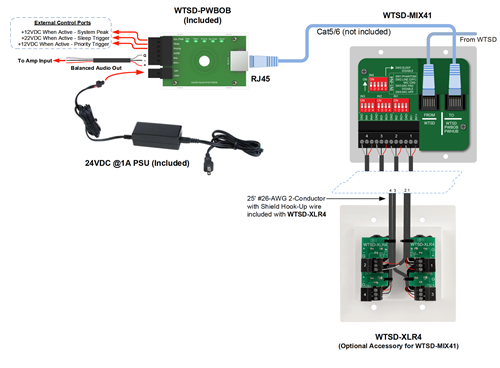

    • Power Supply & WTSD-PWBOB interface included
    • XLR Balanced Mic or Line Input with Individual Level Controls
    • Fits Most 2-Gang Boxes

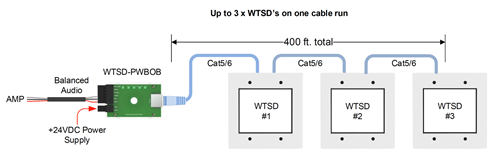

    • Uses Industry Standard Cat5 or Cat6 Cable
    • High Gain Balanced Line Output for Applications of 400ft.
    • 120Hz/12dB Low Cut Filter for Mic/Line
    • Linkable with other WTSD Mixers on the same BUSS
    • Local Mute Switch
    • Remote Trigger Output for Remote Amplifier Turn On
    • System Priority Mute Function
    • Energy Saving Auto Sleep Mode
    • WTSD-COVER Water Resistant Stainless Steel Locking Cover (Optional)

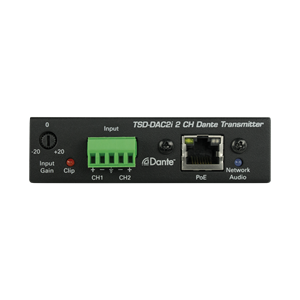

    • TSD-DAC2i Analog to Dante® Digital Audio Transmitter (Optional)

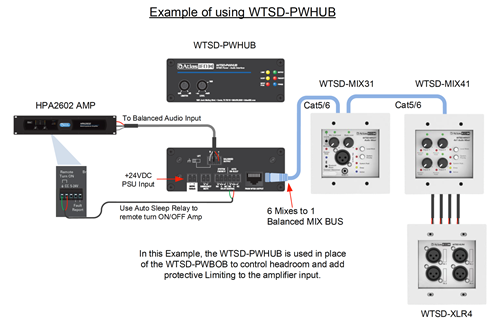

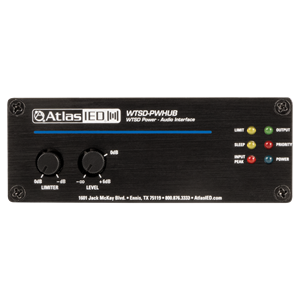

    • WTSD-PWHUB Receiver with Limiter and Isolated Relays & Emergency Mute (Optional)

    Input Type Unbalanced, Qty. 4
    Impedance 1.2kΩ Balanced, 600Ω Unbalanced
    Phantom Power 24VDC Defeatable Rear panel DP SW, ON Indicator RED Front Panel
    Low Cut Filter 125Hz/12dB Defeatable Rear Panel DP SW
    Line Input Level 500mV (-6dBV) Balanced
    Maximum Input Level 6V (+6dBV)
    Mic Input Level No Pad Applied = 5mV (-46dB) = 2V (+6dBV) Balanced Output
    Mic Input Level 10dB Pad Applied = 15mV (-36dB) = 2V (+6dBV) Balanced Output
    Mic Input Level Maximum Input 40mV (-27dBV)
    Output Type WTSD Bus
    Connector Type RJ45
    Frequency Response 20Hz -20KHz +/- 1dB
    THD .06% & 1KHz
    Height 4.37" (111mm)
    Width 4.34" (110mm)
    Depth 2.5" (62.6mm)
    Weight 0.53 lbs (.24kg)
    Shipping Weight 1.3 lbs. (.61kg)
    Warranty Period 36 months from date of purchase

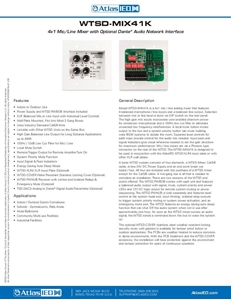

     WTSD-MIX41K Data Sheet (12 pages) WTSD-MIX41K Data Sheet (12 pages)

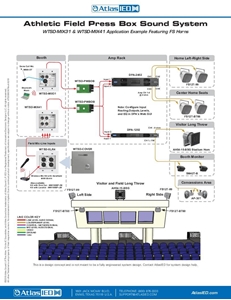

    Athletic Field Press Box Sound System (1 page) Athletic Field Press Box Sound System (1 page)
     WTSD-MIX41K Owners Manual (32 pages) WTSD-MIX41K Owners Manual (32 pages)

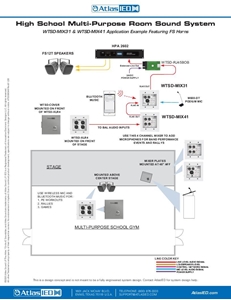

    High School Multi-Purpose Room Sound System (1 page) High School Multi-Purpose Room Sound System (1 page)

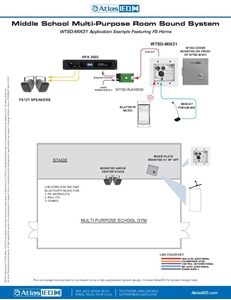

    Middle School Multi-Purpose Room Sound System (1 page) Middle School Multi-Purpose Room Sound System (1 page)

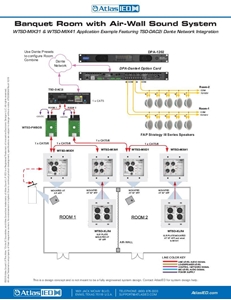

    Banquet Room Sound System (1 page) Banquet Room Sound System (1 page)
