2-Channel Line Driver

Availability: In stock
MSRP (USD): $1,174.99
  • TitanONE Required
  • ETL
  • CE
  • Made in USA
  • Fault Reporting

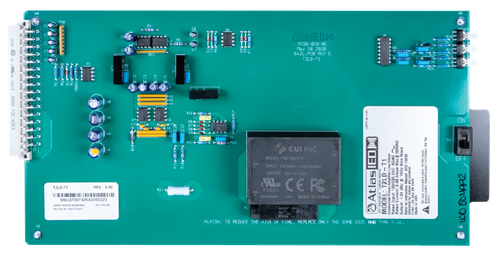

    The AtlasIED Model T2LD is an optional component of the TitanONE Series Mainframe with DSP System. It is a 2-channel line driver module that can be installed in a T112 Integrated Power Amplifier Mainframe in place of a T302, T602 or T1202 modular amplifier.

    The AtlasIED Model T2LD 2-channel line driver has two low impedance, balanced, floating, active outputs which are designed to drive very long lines. Its transformerless output design provides wider bandwidth while minimizing distortion at all frequencies. The result is improved overall system performance while maintaining cost efficiency.

    In some applications, the T112 Mainframe with DSP is required to drive mixed speaker loads, such as groups of speakers operating from a 70 V line and others being self-powered and requiring line-level input signals. The T2LD can provide the line level outputs, while the TitanONE Series modular power amplifier cards can be used to drive the conventional distributed speakers. Both can be operated simultaneously in one T112 Mainframe.

    The Model T2LD-T1 is designed for use in 120 / 230 / 240VAC systems.

    Maximum Input Signal +24dBu
    Signal to Noise Ratio >100 dB (Unweighted, 20 Hz - 20 kHz)
    Maximum Output Level +24dBu
    Total Harmonic Distortion .0006% (2 kHz input, Max. Output, 10 Hz – 22 kHz filters)
    Operating Temperature Range +32°F - +122°F (0°C - +50°C)
    Input Sensitivity +24dBu
    Frequency Response +0dBU, -0.2dBu (20 Hz - 20 kHz)
    Input impedance 10kΩ
    Output impedance <0.5Ω
    Crosstalk <-65dB
    Input Power 5-Watts
    Height 6.8" (173mm)
    Width 1.8" (46mm)
    Depth 12.5" (317.5mm)
    Weight 4.0 lbs. (1.8kg)
    Storage Temperature Range -40°F - +158°F (-40°C - +70°C)
    Safety Listed
    (As part of the T112 Mainframe)ETL Listed to UL 60950-1, UL 62368-1, CSA 60950-1 & CSA 62368-1
    ETL Recognized Component UL 864, UL 2572, ULC S527 & ULC S576
