Zone Page Powered Relay Pack 12 Relays

  • BAA
  • TAA

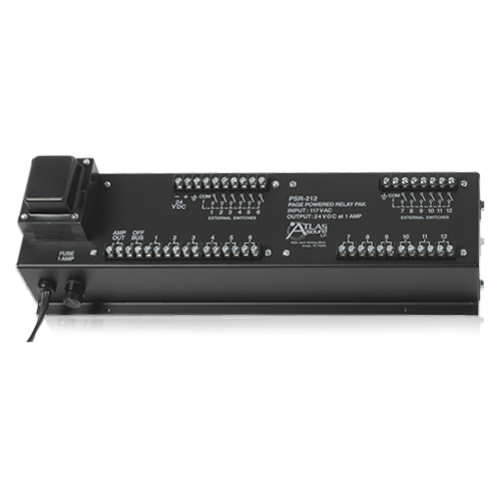

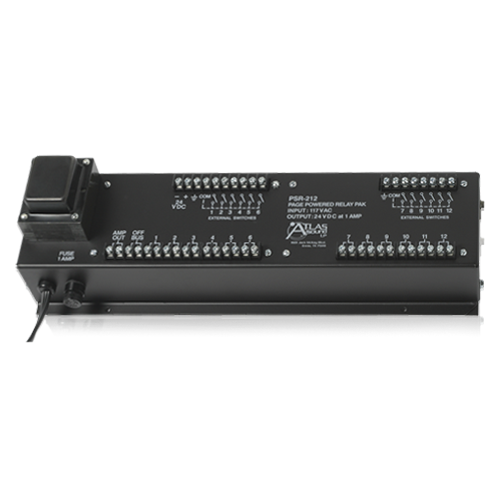

    The Model PSR-212 is a zone page, powered relay-pak with an internal power supply. The unit is completely wired and ready for mounting. The power supply is capable of delivering 500 mA at 24 VDC. A fuse is used for extra protection. The output of the power supply is terminated at the terminal strip as well as internally to the relay coils. This allows the use of excess power supply capacity for external relays.
    Twelve 24 VDC, DPDT relays are pre-mounted and wired to the power supply. The contacts are of silver, gold plated and the contact rating is 3 amps. The coil current is a nominal 35mA. The relays are wired and terminated. The terminals are easily identified by a silkscreened diagram. Any relay may be easily converted to an ‘all page’ relay by connecting the off bus to the selected relay-switch output. Note: Allows for 11 zones, plus "All Call", or 12 zones without "All Call".
    Model PSR-212. Is a completely enclosed in a compact 18-gauge CRS chassis finished in black epoxy. It features a 6 ft. power cord. It is designed to be used with AtlasIED Model MPC Series modular paging communications center.

    • Capacity for Additional External Relays or Lights
    • Choice of Six (PSR-206) or Twelve (PSR-212) 24 VDC DPDT Relay Models
    • Easy Conversion for All-Page Applications
    • Pre-Mounted and Wired to Power Supply

    Contact Rating 3 Amps
    Input Power 117 VAC, @ 60 Hz, 24 Watts
    Output Power 24 VDC 1 Amp
    Relay 12
    Height 4 3/8" (11.1125 cm)
    Width 17 1/8" (43.4975 cm)
    Depth 2 1/4" (5.715 cm)
    Shipping Weight 7.50 lbs (3.40 kgs)
    Warranty Period 12 months from date of purchase

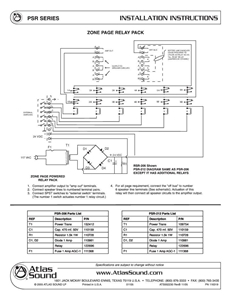

    PSR Series Installation Sheet (1 page)

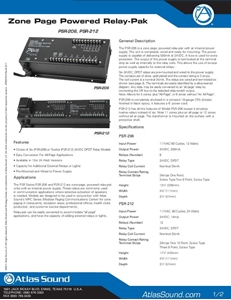

    Zone Page Powered Relay Pak Datasheet (2 pages)
