8" Sound Masking Loudspeaker with 5-Watt 70V Transformer and Enclosure

M812-S2T7-BX-RS
  • 70V100VCAPABLE
  • TAA
  • BAA

    M812-S2T7-BX-RS  square enclosure offers a cubic content of 529 cu. in. (.087 m3) C10A, 8" Dia. loudspeaker and a 70.7V (T7) transformer. Loudspeaker mounting plate contains no perforated grille and thus positions the loudspeaker cone as fully exposed.

    FEATURES
    Completely Assembled and Wired for Easy Installation
    Finished in Black Epoxy
    Specifically Designed for Installation in Suspended Tile Ceiling Systems
    SPECIFICATIONS
    Frequency Response 100Hz - 10kHz
    Sensitivity 97dB Peak, 94dB Average
    Power Taps .5, 1, 2, 5
    Speaker Type 8" Dual Cone
    Dispersion Upward
    SUPPORT FILES
    Data Sheet

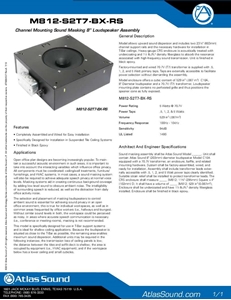

    ATS004127 M812-S2T7-BX-RS Datasheet Rev A (1 page)
